aims::MovingAverageKernel Class Reference

1D Moving Average Kernel More...

#include <aims/signalfilter/movingaveragefilter.h>

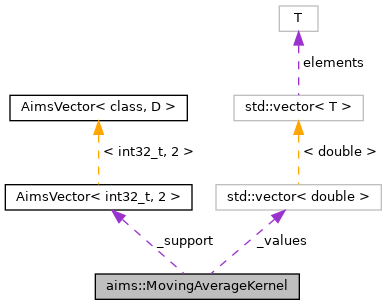

Collaboration diagram for aims::MovingAverageKernel:

Public Member Functions
	MovingAverageKernel (unsigned length=3, FilterType::Direction symtype=FilterType::Symmetrical)
	Constructor/Destructor/Copy. More...
	MovingAverageKernel (const MovingAverageKernel &other)
virtual	~MovingAverageKernel ()
MovingAverageKernel &	operator= (const MovingAverageKernel &other)
double	operator() (int x) const
	Get value. More...
double	at (int x) const
const Point2di &	support () const
void	reset (unsigned length=3, FilterType::Direction symtype=FilterType::Symmetrical)
	Set parameters. More...
void	setLength (unsigned length)
void	setType (FilterType::Direction symtype)
unsigned	length () const
	Get parameters. More...
FilterType::Direction	type () const

Protected Member Functions
void	setSupport (FilterType::Direction symtype)

Protected Attributes
FilterType::Direction	_type
Point2di	_support
std::vector< double >	_values

Detailed Description

1D Moving Average Kernel

This kernel can be used as basis function in ConvolutionFilter and ConvolutionSubSampler classes.

The moving average transfer function is:

• if Causal: H(z) = 1/l * sum[k=-l+1;k<=0]( z^{-k} )
• if Anticausal: H(z) = 1/l * sum[k=0;k<=l-1]( z^{-k} )
• if Symmetrical: H(z) = 1/l * sum[k=-l/2;k<=l/2]( z^{-k} )

The symmetrical version needs an odd length.

Definition at line 60 of file movingaveragefilter.h.

Constructor & Destructor Documentation

MovingAverageKernel() [1/2]

aims::MovingAverageKernel::MovingAverageKernel	(	unsigned	length = 3,
		FilterType::Direction	symtype = FilterType::Symmetrical
	)

Constructor/Destructor/Copy.

If symtype == Symmetrical, length should be odd.

MovingAverageKernel() [2/2]

aims::MovingAverageKernel::MovingAverageKernel

(

const MovingAverageKernel &

other

)

~MovingAverageKernel()

virtual aims::MovingAverageKernel::~MovingAverageKernel ( )

virtual

Member Function Documentation

at()

double aims::MovingAverageKernel::at

(

int

x

)

const

length()

unsigned aims::MovingAverageKernel::length

(

)

const

Get parameters.

operator()()

double aims::MovingAverageKernel::operator()

(

int

x

)

const

Get value.

operator=()

MovingAverageKernel& aims::MovingAverageKernel::operator=

(

const MovingAverageKernel &

other

)

reset()

void aims::MovingAverageKernel::reset	(	unsigned	length = 3,
		FilterType::Direction	symtype = FilterType::Symmetrical
	)

Set parameters.

Be aware that a call to reset, etc. will trigger a reallocation of the array and a recomputing of the values. If several of these values need changing, it is thus avdised to use the reset() method.

setLength()

void aims::MovingAverageKernel::setLength

(

unsigned

length

)

setSupport()

void aims::MovingAverageKernel::setSupport ( FilterType::Direction  symtype )

protected

setType()

void aims::MovingAverageKernel::setType

(

FilterType::Direction

symtype

)

support()

const Point2di& aims::MovingAverageKernel::support

(

)

const

type()

FilterType::Direction aims::MovingAverageKernel::type

(

)

const

Member Data Documentation

_support

Point2di aims::MovingAverageKernel::_support

protected

Definition at line 111 of file movingaveragefilter.h.

_type

FilterType::Direction aims::MovingAverageKernel::_type

protected

Definition at line 110 of file movingaveragefilter.h.

_values

std::vector<double> aims::MovingAverageKernel::_values

protected

Definition at line 112 of file movingaveragefilter.h.

---

The documentation for this class was generated from the following file:

• aims/signalfilter/movingaveragefilter.h
