The template class to manage a mesh. More...

#include <aims/mesh/surface.h>

Inheritance diagram for AimsSurface< D, T >:

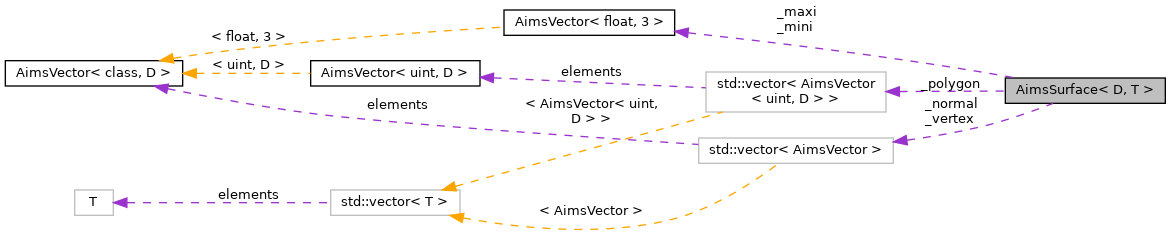

Collaboration diagram for AimsSurface< D, T >:

[legend]

Public Member Functions
	AimsSurface ()
	Constructor does nothing special. More...

virtual	~AimsSurface ()
	Destructor does nothing. More...

const std::vector< Point3df > &	vertex () const
	Get a const reference to the vector of vertices. More...

std::vector< Point3df > &	vertex ()
	Get a non const reference to the vector of verteces. More...

const std::vector< Point3df > &	normal () const
	Get a const reference to the vector of normals. More...

std::vector< Point3df > &	normal ()
	Get a non const reference to the vector of normals. More...

const std::vector< T > &	texture () const
	Get a const reference to the vector of textures. More...

std::vector< T > &	texture ()
	Get a non const reference to the vector of textures. More...

const std::vector< AimsVector< uint, D > > &	polygon () const
	Get a const reference to the vector of polygons. More...

std::vector< AimsVector< uint, D > > &	polygon ()
	Get a non const reference to the vector of polygons. More...

Point3df	minimum () const
	Get the inferior point of the box containing the mesh. More...

Point3df	maximum () const
	Get the superior point of the box containing the mesh. More...

void	setMini ()
	Calculate the inferior point of the box containing the mesh. More...

void	setMaxi ()
	Calculate the superior point of the box containing the mesh. More...

void	erase ()
	Clear the mesh. More...

void	updateNormals ()
	Update/Compute the normals. More...

bool	operator== (const AimsSurface< D, T > &s) const

bool	operator!= (const AimsSurface< D, T > &s) const

void	updateNormals ()

void	updateNormals ()

Protected Types
typedef std::vector< AimsVector< uint, D > >	Polygons
	Vector of polygons. More...

Protected Attributes
std::vector< Point3df >	_vertex
	Vector of vertices. More...

std::vector< Point3df >	_normal
	Vector of normals. More...

std::vector< T >	_texture
	Vector of textures. More...

Polygons	_polygon

Point3df	_mini
	Inferior point of a box containing the whole mesh in the 3D space. More...

Point3df	_maxi
	Superior point of a box containing the whole mesh in the 3D space. More...

Friends
std::ostream &	operator<< (std::ostream &out, const AimsSurface< D, T > &thing)
	Output stream operator. More...

Detailed Description

template<int D, class T>
class AimsSurface< D, T >

The template class to manage a mesh.

The first template argument gives the dimension of the polygons of the mesh. The second template argument provides the type of the texture information.

Definition at line 68 of file surface.h.

Member Typedef Documentation

◆ Polygons

template<int D, class T >

typedef std::vector< AimsVector< uint, D > > AimsSurface< D, T >::Polygons

protected

Vector of polygons.

Definition at line 78 of file surface.h.

Constructor & Destructor Documentation

◆ AimsSurface()

template<int D, class T >

AimsSurface< D, T >::AimsSurface ( )

inline

Constructor does nothing special.

Definition at line 88 of file surface.h.

◆ ~AimsSurface()

template<int D, class T >

virtual AimsSurface< D, T >::~AimsSurface ( )

inlinevirtual

Destructor does nothing.

Definition at line 90 of file surface.h.

Member Function Documentation

◆ erase()

template<int D, class T >

void AimsSurface< D, T >::erase

inline

Clear the mesh.

Definition at line 178 of file surface.h.

◆ maximum()

template<int D, class T >

Point3df AimsSurface< D, T >::maximum ( ) const

inline

Get the superior point of the box containing the mesh.

Definition at line 116 of file surface.h.

◆ minimum()

template<int D, class T >

Point3df AimsSurface< D, T >::minimum ( ) const

inline

Get the inferior point of the box containing the mesh.

Definition at line 114 of file surface.h.

◆ normal() [1/2]

template<int D, class T >

std::vector<Point3df>& AimsSurface< D, T >::normal ( )

inline

Get a non const reference to the vector of normals.

Definition at line 100 of file surface.h.

◆ normal() [2/2]

template<int D, class T >

const std::vector<Point3df>& AimsSurface< D, T >::normal ( ) const

inline

Get a const reference to the vector of normals.

Definition at line 98 of file surface.h.

Referenced by aims::SurfaceManip::joinTexturedMesh(), aims::SurfaceManip::meshExtract(), aims::SurfaceManip::meshMerge(), aims::MeshReader< D, T >::read(), aims::GiftiMeshFormat< D, T >::read(), aims::SurfaceManip::splitTexturedMesh(), and aims::GiftiMeshFormat< D, T >::write().

◆ operator!=()

template<int D, class T >

bool AimsSurface< D, T >::operator!= ( const AimsSurface< D, T > & s ) const

inline

Definition at line 134 of file surface.h.

◆ operator==()

template<int D, class T >

bool AimsSurface< D, T >::operator== ( const AimsSurface< D, T > & s ) const

inline

Definition at line 129 of file surface.h.

References AimsSurface< D, T >::_normal, AimsSurface< D, T >::_polygon, AimsSurface< D, T >::_texture, and AimsSurface< D, T >::_vertex.

◆ polygon() [1/2]

template<int D, class T >

std::vector< AimsVector<uint,D> >& AimsSurface< D, T >::polygon ( )

inline

Get a non const reference to the vector of polygons.

Definition at line 111 of file surface.h.

◆ polygon() [2/2]

template<int D, class T >

const std::vector< AimsVector<uint,D> >& AimsSurface< D, T >::polygon ( ) const

inline

Get a const reference to the vector of polygons.

Definition at line 108 of file surface.h.

Referenced by aims::SurfaceManip::invertSurfacePolygons(), aims::SurfaceManip::joinTexturedMesh(), aims::SurfaceManip::meshDensity(), aims::SurfaceManip::meshEdgeLengthRatioTexture(), aims::SurfaceManip::meshExtract(), aims::SurfaceManip::meshMerge(), aims::SurfaceManip::meshTextureBoundary(), aims::MeshReader< D, T >::read(), aims::GiftiMeshFormat< D, T >::read(), aims::SurfaceManip::splitTexturedMesh(), aims::SurfaceManip::surfaceNeighbours(), and aims::GiftiMeshFormat< D, T >::write().

◆ setMaxi()

template<int D, class T >

void AimsSurface< D, T >::setMaxi

inline

Calculate the superior point of the box containing the mesh.

Definition at line 163 of file surface.h.

◆ setMini()

template<int D, class T >

void AimsSurface< D, T >::setMini

inline

Calculate the inferior point of the box containing the mesh.

Definition at line 148 of file surface.h.

◆ texture() [1/2]

template<int D, class T >

std::vector<T>& AimsSurface< D, T >::texture ( )

inline

Get a non const reference to the vector of textures.

Definition at line 105 of file surface.h.

◆ texture() [2/2]

template<int D, class T >

const std::vector<T>& AimsSurface< D, T >::texture ( ) const

inline

Get a const reference to the vector of textures.

Definition at line 103 of file surface.h.

Referenced by aims::SurfaceManip::joinTexturedMesh(), aims::MeshReader< D, T >::read(), and aims::GiftiMeshFormat< D, T >::write().

◆ updateNormals() [1/3]

template<int D, class T >

void AimsSurface< D, T >::updateNormals

inline

Update/Compute the normals.

Definition at line 188 of file surface.h.

Referenced by aims::MeshReader< D, T >::read(), and aims::GiftiMeshFormat< D, T >::read().

◆ updateNormals() [2/3]

void AimsSurface< 3, Void >::updateNormals ( )

inline

Definition at line 196 of file surface.h.

References crossed(), and norm().

◆ updateNormals() [3/3]

void AimsSurface< 4, Void >::updateNormals ( )

inline

Definition at line 232 of file surface.h.

References crossed(), and norm().

◆ vertex() [1/2]

template<int D, class T >

std::vector<Point3df>& AimsSurface< D, T >::vertex ( )

inline

Get a non const reference to the vector of verteces.

Definition at line 95 of file surface.h.

◆ vertex() [2/2]

template<int D, class T >

const std::vector<Point3df>& AimsSurface< D, T >::vertex ( ) const

inline

Get a const reference to the vector of vertices.

Definition at line 93 of file surface.h.

Referenced by aims::SurfaceManip::joinTexturedMesh(), aims::SurfaceManip::meshDensity(), aims::SurfaceManip::meshEdgeLengthRatioTexture(), aims::SurfaceManip::meshExtract(), aims::SurfaceManip::meshMerge(), aims::SurfaceManip::meshTextureBoundary(), aims::MeshReader< D, T >::read(), aims::GiftiMeshFormat< D, T >::read(), SiteIterator< AimsSurface< D, Void > >::SiteIterator(), aims::SurfaceManip::splitTexturedMesh(), aims::SurfaceManip::surfaceNeighbours(), and aims::GiftiMeshFormat< D, T >::write().

Friends And Related Function Documentation

◆ operator<<

template<int D, class T >

std::ostream& operator<<	(	std::ostream &	out,
		const AimsSurface< D, T > &	thing
	)

friend

Output stream operator.

Definition at line 285 of file surface.h.

Member Data Documentation

◆ _maxi

template<int D, class T >

Point3df AimsSurface< D, T >::_maxi

protected

Superior point of a box containing the whole mesh in the 3D space.

Definition at line 84 of file surface.h.

◆ _mini

template<int D, class T >

Point3df AimsSurface< D, T >::_mini

protected

Inferior point of a box containing the whole mesh in the 3D space.

Definition at line 82 of file surface.h.

◆ _normal

template<int D, class T >

std::vector< Point3df > AimsSurface< D, T >::_normal

protected

Vector of normals.

Definition at line 74 of file surface.h.

Referenced by AimsSurface< D, T >::operator==().

◆ _polygon

template<int D, class T >

Polygons AimsSurface< D, T >::_polygon

protected

Definition at line 79 of file surface.h.

Referenced by AimsSurface< D, T >::operator==().

◆ _texture

template<int D, class T >

std::vector< T > AimsSurface< D, T >::_texture

protected

Vector of textures.

Definition at line 76 of file surface.h.

Referenced by AimsSurface< D, T >::operator==().

◆ _vertex

template<int D, class T >

std::vector< Point3df > AimsSurface< D, T >::_vertex

protected

Vector of vertices.

Definition at line 72 of file surface.h.

Referenced by AimsSurface< D, T >::operator==().

The documentation for this class was generated from the following file:

aims/mesh/surface.h
