An alternate, ordered, representation for buckets (voxels lists). More...

#include <aims/bucket/bucketMap.h>

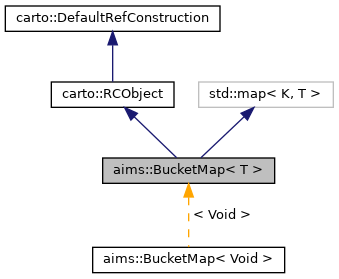

Inheritance diagram for aims::BucketMap< T >:

[legend]

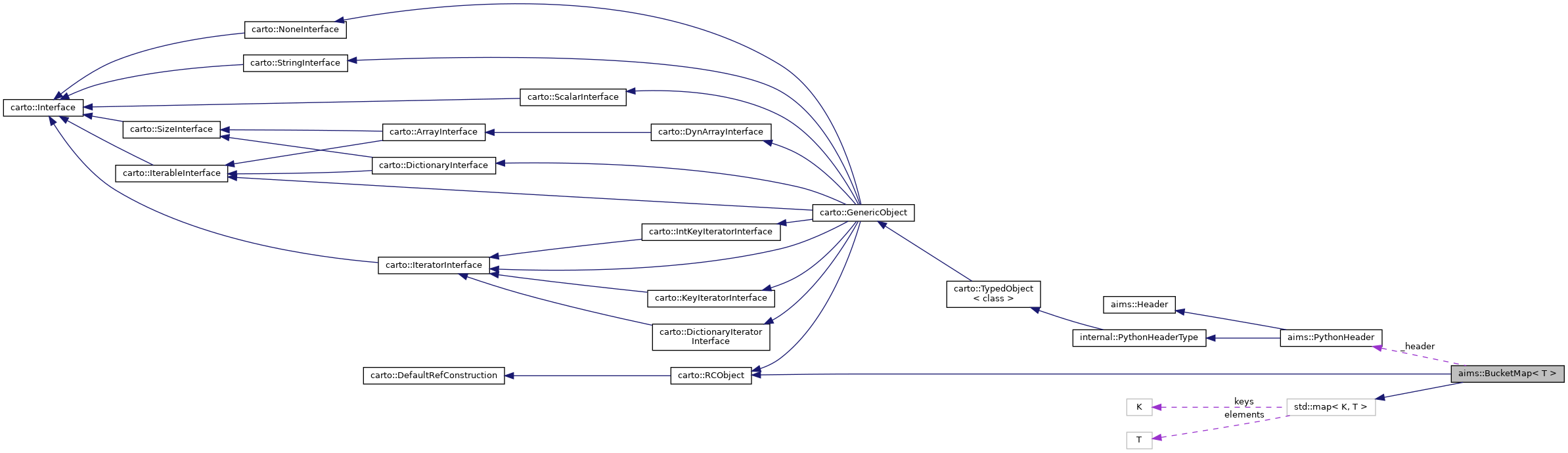

Collaboration diagram for aims::BucketMap< T >:

[legend]

Public Types
typedef std::map< int, std::map< Point3d, T, BucketMapLess > >	BaseMap

typedef std::map< Point3d, T, BucketMapLess >	Bucket

typedef std::map< int, Bucket >::iterator	iterator

typedef std::map< int, Bucket >::const_iterator	const_iterator

Public Types inherited from carto::RCObject
typedef int	RefCounterType

Public Member Functions
	BucketMap ()

	BucketMap (const BucketMap< T > &other)

	BucketMap (const AimsBucket< T > &)
	build from AimsBucket

virtual	~BucketMap ()

BucketMap< T > &	operator= (const AimsBucket< T > &)

void	insert (const Point3d &pos, const T &item)
	Function redefined to omit time.

void	insert (const std::pair< const Point3d, T > &item)
	Function redefined to omit time, looks more like STL maps.

void	erase (const Point3d &pos)
	Function redefined to omit time.

void	merge (const BucketMap< T > &)

float	sizeX () const
	returns the X resolution in mm

float	sizeY () const
	returns the Y resolution in mm

float	sizeZ () const
	returns the Z resolution in mm

float	sizeT () const
	returns the T resolution in s

std::vector< float >	getVoxelSize () const

void	setSizeX (float sizex)
	sets the X resolution of the data in mm

void	setSizeY (float sizey)
	sets the Y resolution of the data in mm

void	setSizeZ (float sizez)
	sets the Z resolution of the data in mm

void	setSizeT (float sizet)
	sets the T resolution of the data in s

void	setSizeXYZT (float sizex, float sizey, float sizez, float sizet)
	sets X,Y,Z and T resolutions of the data

void	setSizeXYZT (const std::vector< float > &vsize)

void	setVoxelSize (float sizex, float sizey, float sizez, float sizet)

void	setVoxelSize (const std::vector< float > &vsize)

const aims::PythonHeader &	header () const

aims::PythonHeader &	header ()

void	setHeader (const aims::PythonHeader &hdr)

Public Member Functions inherited from carto::RCObject
	RCObject ()

	RCObject (const RCObject &)

RCObject &	operator= (const RCObject &)

virtual	~RCObject ()

Protected Attributes
aims::PythonHeader	_header

Detailed Description

template<class T>
class aims::BucketMap< T >

An alternate, ordered, representation for buckets (voxels lists).

Compared to AimsBucket, this version stores points in an ordered map, sorted by (z,y,x) key.

Conversion operator makes it easy to transform an AimsBucket to a BucketMap and vice versa

Definition at line 96 of file bucketMap.h.

Member Typedef Documentation

◆ BaseMap

template<class T>

typedef std::map< int , std::map< Point3d, T, BucketMapLess > > aims::BucketMap< T >::BaseMap

Definition at line 101 of file bucketMap.h.

◆ Bucket

template<class T>

typedef std::map< Point3d, T, BucketMapLess > aims::BucketMap< T >::Bucket

Definition at line 102 of file bucketMap.h.

◆ const_iterator

template<class T>

typedef std::map<int,Bucket>::const_iterator aims::BucketMap< T >::const_iterator

Definition at line 104 of file bucketMap.h.

◆ iterator

template<class T>

typedef std::map<int,Bucket>::iterator aims::BucketMap< T >::iterator

Definition at line 103 of file bucketMap.h.

Constructor & Destructor Documentation

◆ BucketMap() [1/3]

template<class T>

aims::BucketMap< T >::BucketMap ( )

inline

Definition at line 106 of file bucketMap.h.

Referenced by merge().

◆ BucketMap() [2/3]

template<class T>

aims::BucketMap< T >::BucketMap ( const BucketMap< T > & other )

inline

Definition at line 108 of file bucketMap.h.

◆ BucketMap() [3/3]

template<class T>

aims::BucketMap< T >::BucketMap ( const AimsBucket< T > & other )

inline

build from AimsBucket

Definition at line 350 of file bucketMap.h.

References _header, and header().

◆ ~BucketMap()

template<class T>

virtual aims::BucketMap< T >::~BucketMap ( )

inlinevirtual

Definition at line 113 of file bucketMap.h.

Member Function Documentation

◆ erase()

template<class T>

void aims::BucketMap< T >::erase ( const Point3d & pos )

inline

Function redefined to omit time.

Definition at line 208 of file bucketMap.h.

Referenced by aims::FileFormatDictionary< T >::unregisterFormat().

◆ getVoxelSize()

template<class T>

std::vector< float > aims::BucketMap< T >::getVoxelSize ( ) const

inline

Definition at line 224 of file bucketMap.h.

References _header.

◆ header() [1/2]

template<class T>

aims::PythonHeader & aims::BucketMap< T >::header ( )

inline

Definition at line 156 of file bucketMap.h.

◆ header() [2/2]

template<class T>

const aims::PythonHeader & aims::BucketMap< T >::header ( ) const

inline

Definition at line 155 of file bucketMap.h.

Referenced by aims::SparseVolume< BucketMap< T > >::alloc(), aims::SparseVolume< BucketMap< Void > >::alloc(), carto::ConverterAllocator< aims::BucketMap< INP >, aims::BucketMap< OUTP > >::alloc(), BucketMap(), carto::RawConverter< aims::BucketMap< INP >, aims::BucketMap< OUTP > >::convert(), carto::RawConverter< aims::BucketMap< INP >, rc_ptr< Volume< OUTP > > >::convert(), carto::RawConverter< aims::BucketMap< Void >, rc_ptr< Volume< OUTP > > >::convert(), aims::maskWithVolume(), AimsBucket< T >::operator=(), and aims::BckMapWriter< T >::write().

◆ insert() [1/2]

template<class T>

void aims::BucketMap< T >::insert	(	const Point3d &	pos,
		const T &	item )

inline

Function redefined to omit time.

Definition at line 194 of file bucketMap.h.

Referenced by merge().

◆ insert() [2/2]

template<class T>

void aims::BucketMap< T >::insert ( const std::pair< const Point3d, T > & item )

inline

Function redefined to omit time, looks more like STL maps.

Definition at line 201 of file bucketMap.h.

◆ merge()

template<class T>

void aims::BucketMap< T >::merge ( const BucketMap< T > & bck )

inline

Definition at line 215 of file bucketMap.h.

References BucketMap(), and insert().

◆ operator=()

template<class T>

BucketMap< T > & aims::BucketMap< T >::operator= ( const AimsBucket< T > & other )

inline

Definition at line 358 of file bucketMap.h.

References _header, and AimsBucket< T >::header().

◆ setHeader()

template<class T>

void aims::BucketMap< T >::setHeader ( const aims::PythonHeader & hdr )

inline

Definition at line 157 of file bucketMap.h.

Referenced by carto::ConverterAllocator< aims::BucketMap< INP >, aims::BucketMap< OUTP > >::alloc(), carto::RawConverter< aims::BucketMap< INP >, aims::BucketMap< OUTP > >::convert(), aims::maskWithVolume(), and aims::BckMapReader< T >::read().

◆ setSizeT()

template<class T>

void aims::BucketMap< T >::setSizeT ( float sizet )

inline

sets the T resolution of the data in s

Definition at line 314 of file bucketMap.h.

References _header.

◆ setSizeX()

template<class T>

void aims::BucketMap< T >::setSizeX ( float sizex )

inline

sets the X resolution of the data in mm

Definition at line 275 of file bucketMap.h.

References _header.

◆ setSizeXYZT() [1/2]

template<class T>

void aims::BucketMap< T >::setSizeXYZT ( const std::vector< float > & vsize )

inline

Definition at line 340 of file bucketMap.h.

References _header.

◆ setSizeXYZT() [2/2]

template<class T>

void aims::BucketMap< T >::setSizeXYZT	(	float	sizex,
		float	sizey,
		float	sizez,
		float	sizet )

inline

sets X,Y,Z and T resolutions of the data

Definition at line 327 of file bucketMap.h.

References _header.

Referenced by carto::RawConverter< aims::BucketMap< INP >, aims::BucketMap< OUTP > >::convert(), and aims::maskWithVolume().

◆ setSizeY()

template<class T>

void aims::BucketMap< T >::setSizeY ( float sizey )

inline

sets the Y resolution of the data in mm

Definition at line 288 of file bucketMap.h.

References _header.

◆ setSizeZ()

template<class T>

void aims::BucketMap< T >::setSizeZ ( float sizez )

inline

sets the Z resolution of the data in mm

Definition at line 301 of file bucketMap.h.

References _header.

◆ setVoxelSize() [1/2]

template<class T>

void aims::BucketMap< T >::setVoxelSize ( const std::vector< float > & vsize )

inline

Definition at line 152 of file bucketMap.h.

◆ setVoxelSize() [2/2]

template<class T>

void aims::BucketMap< T >::setVoxelSize	(	float	sizex,
		float	sizey,
		float	sizez,
		float	sizet )

inline

Definition at line 149 of file bucketMap.h.

◆ sizeT()

template<class T>

float aims::BucketMap< T >::sizeT ( ) const

inline

returns the T resolution in s

Definition at line 264 of file bucketMap.h.

References _header.

Referenced by aims::SparseVolume< BucketMap< T > >::alloc(), aims::SparseVolume< BucketMap< Void > >::alloc(), carto::ConverterAllocator< aims::BucketMap< INP >, rc_ptr< Volume< OUTP > > >::alloc(), carto::RawConverter< aims::BucketMap< INP >, aims::BucketMap< OUTP > >::convert(), carto::RawConverter< aims::BucketMap< INP >, rc_ptr< Volume< OUTP > > >::convert(), carto::RawConverter< aims::BucketMap< Void >, rc_ptr< Volume< OUTP > > >::convert(), aims::BucketUtil::volumeFromBucket(), and aims::BckMapWriter< T >::write().

◆ sizeX()

template<class T>

float aims::BucketMap< T >::sizeX ( ) const

inline

returns the X resolution in mm

Definition at line 234 of file bucketMap.h.

References _header.

Referenced by aims::SparseVolume< BucketMap< T > >::alloc(), aims::SparseVolume< BucketMap< Void > >::alloc(), carto::ConverterAllocator< aims::BucketMap< INP >, rc_ptr< Volume< OUTP > > >::alloc(), carto::RawConverter< aims::BucketMap< INP >, aims::BucketMap< OUTP > >::convert(), carto::RawConverter< aims::BucketMap< INP >, rc_ptr< Volume< OUTP > > >::convert(), carto::RawConverter< aims::BucketMap< Void >, rc_ptr< Volume< OUTP > > >::convert(), aims::BucketUtil::volumeFromBucket(), aims::BucketUtil::volumeFromBucket(), and aims::BckMapWriter< T >::write().

◆ sizeY()

template<class T>

float aims::BucketMap< T >::sizeY ( ) const

inline

returns the Y resolution in mm

Definition at line 244 of file bucketMap.h.

References _header.

Referenced by aims::SparseVolume< BucketMap< T > >::alloc(), aims::SparseVolume< BucketMap< Void > >::alloc(), carto::ConverterAllocator< aims::BucketMap< INP >, rc_ptr< Volume< OUTP > > >::alloc(), carto::RawConverter< aims::BucketMap< INP >, aims::BucketMap< OUTP > >::convert(), carto::RawConverter< aims::BucketMap< INP >, rc_ptr< Volume< OUTP > > >::convert(), carto::RawConverter< aims::BucketMap< Void >, rc_ptr< Volume< OUTP > > >::convert(), aims::BucketUtil::volumeFromBucket(), aims::BucketUtil::volumeFromBucket(), and aims::BckMapWriter< T >::write().

◆ sizeZ()

template<class T>

float aims::BucketMap< T >::sizeZ ( ) const

inline

returns the Z resolution in mm

Definition at line 254 of file bucketMap.h.

References _header.

Referenced by aims::SparseVolume< BucketMap< T > >::alloc(), aims::SparseVolume< BucketMap< Void > >::alloc(), carto::ConverterAllocator< aims::BucketMap< INP >, rc_ptr< Volume< OUTP > > >::alloc(), carto::RawConverter< aims::BucketMap< INP >, aims::BucketMap< OUTP > >::convert(), carto::RawConverter< aims::BucketMap< INP >, rc_ptr< Volume< OUTP > > >::convert(), carto::RawConverter< aims::BucketMap< Void >, rc_ptr< Volume< OUTP > > >::convert(), aims::BucketUtil::volumeFromBucket(), aims::BucketUtil::volumeFromBucket(), and aims::BckMapWriter< T >::write().

Member Data Documentation

◆ _header

template<class T>

aims::PythonHeader aims::BucketMap< T >::_header

protected

Definition at line 160 of file bucketMap.h.

Referenced by BucketMap(), getVoxelSize(), operator=(), setSizeT(), setSizeX(), setSizeXYZT(), setSizeXYZT(), setSizeY(), setSizeZ(), sizeT(), sizeX(), sizeY(), and sizeZ().

The documentation for this class was generated from the following files:

aims/bucket/bucket.h
aims/bucket/bucketMap.h
