aims::StructuringElement Class Reference

aims::StructuringElement class representing a 3D structuring element. More...

#include <aims/connectivity/structuring_element.h>

Inheritance diagram for aims::StructuringElement:

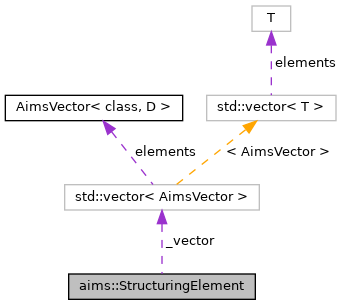

Collaboration diagram for aims::StructuringElement:

Public Types
typedef std::vector< Point3dl >::iterator	iterator
typedef std::vector< Point3dl >::const_iterator	const_iterator

Public Member Functions
	StructuringElement ()
	StructuringElement (const std::vector< Point3dl > &vector)
virtual	~StructuringElement ()
iterator	begin ()
	Return iterator to beginning. More...
iterator	end ()
	Return iterator to end. More...
const_iterator	begin () const
	Return const_iterator to beginning. More...
const_iterator	end () const
	Return const_iterator to end. More...
size_t	size () const
const std::vector< Point3dl > &	getVector () const
	Return std::vector<Point3dl> More...
std::vector< int >	getAmplitude (const Point3dl &origin=Point3dl(0, 0, 0)) const
	Maximum distance to origin in each direction. More...
virtual StructuringElement *	clone () const
	Clone the StructuringElement. More...

Protected Attributes
std::vector< Point3dl >	_vector

Detailed Description

aims::StructuringElement class representing a 3D structuring element.

The aims::StructuringElement class is used to get neighbors of a coordinate in a 3D grid.

Each type of structuring element is a class deriving from aims::StructuringElement. There are currently two intermediate interface classes which are aims::strel::Shape and aims::strel::Connectivity. Two factory classes are also there to get specific structuring elements from string identifiers.

#include <aims/connectivity/structuring_element.h>
#include <aims/vector/vector.h>
#include <cartobase/smart/rcptr.h>
#include <iostream>
using namespace aims;
using namesapce carto;
using namespace std;

// Create spherical structuring element of radius 5 voxels
rc_ptr<StructuringElement> se( new strel::Sphere(5) );
StructuringElement::iterator ic, ie = se->end();

for( ic = se->begin(); ic != ie; ++ic ) {
    cout << "Structuring element point: " << *ic << endl;

See also

aims::strel::Shape aims::strel::ShapeFactory, aims::strel::Connectivity aims::strel::ConnectivityFactory

Definition at line 89 of file structuring_element.h.

Member Typedef Documentation

const_iterator

typedef std::vector<Point3dl>::const_iterator aims::StructuringElement::const_iterator

Definition at line 98 of file structuring_element.h.

iterator

typedef std::vector<Point3dl>::iterator aims::StructuringElement::iterator

Definition at line 95 of file structuring_element.h.

Constructor & Destructor Documentation

StructuringElement() [1/2]

aims::StructuringElement::StructuringElement ( )

inline

Definition at line 103 of file structuring_element.h.

Referenced by clone().

StructuringElement() [2/2]

aims::StructuringElement::StructuringElement ( const std::vector< Point3dl > &  vector )

inline

Definition at line 104 of file structuring_element.h.

~StructuringElement()

virtual aims::StructuringElement::~StructuringElement ( )

inlinevirtual

Definition at line 106 of file structuring_element.h.

Member Function Documentation

begin() [1/2]

iterator aims::StructuringElement::begin ( )

inline

Return iterator to beginning.

Definition at line 115 of file structuring_element.h.

References _vector.

Referenced by aims::StructuredConstVolume< T >::StructuredConstVolume(), and aims::StructuredVolume< T >::StructuredVolume().

begin() [2/2]

const_iterator aims::StructuringElement::begin ( ) const

inline

Return const_iterator to beginning.

Returns

aims::StructuringElement::const_iterator that points to the beginning Point3dl

Definition at line 121 of file structuring_element.h.

References _vector.

clone()

virtual StructuringElement* aims::StructuringElement::clone ( ) const

inlinevirtual

Clone the StructuringElement.

Reimplemented in aims::strel::Connectivity, and aims::strel::Shape.

Definition at line 149 of file structuring_element.h.

References StructuringElement().

end() [1/2]

iterator aims::StructuringElement::end ( )

inline

Return iterator to end.

Definition at line 117 of file structuring_element.h.

References _vector.

Referenced by aims::StructuredConstVolume< T >::StructuredConstVolume(), and aims::StructuredVolume< T >::StructuredVolume().

end() [2/2]

const_iterator aims::StructuringElement::end ( ) const

inline

Return const_iterator to end.

Returns

aims::StructuringElement::const_iterator that points to the element past the end

Definition at line 125 of file structuring_element.h.

References _vector.

getAmplitude()

std::vector<int> aims::StructuringElement::getAmplitude

(

const Point3dl &

origin = Point3dl(0, 0, 0)

)

const

Maximum distance to origin in each direction.

Warning: it is computed at each call.

Returns

std::vector<uint16_t> that contains the borders availables for the volume. vector[0]: amplitude in low x direction vector[1]: amplitude in high x direction vector[2]: amplitude in low y direction vector[3]: amplitude in high y direction vector[4]: amplitude in low z direction vector[5]: amplitude in high z direction

getVector()

const std::vector<Point3dl>& aims::StructuringElement::getVector ( ) const

inline

Return std::vector<Point3dl>

Returns

std::vector<Point3dl> that contains 3d positions of the structuring element

Definition at line 135 of file structuring_element.h.

References _vector.

size()

size_t aims::StructuringElement::size ( ) const

inline

Definition at line 131 of file structuring_element.h.

References _vector.

Member Data Documentation

_vector

std::vector<Point3dl> aims::StructuringElement::_vector

protected

Definition at line 151 of file structuring_element.h.

Referenced by begin(), end(), getVector(), and size().

---

The documentation for this class was generated from the following file:

• aims/connectivity/structuring_element.h
