aims::strel::Connectivity pure abstract class representing a "connectivity" 3D structuring element. More...

#include <aims/connectivity/structuring_element.h>

Inheritance diagram for aims::strel::Connectivity:

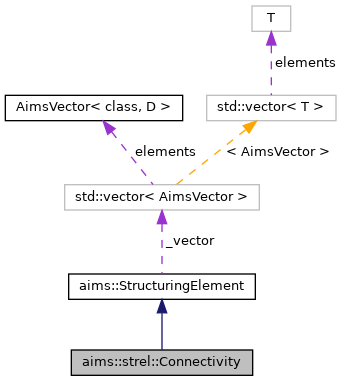

Collaboration diagram for aims::strel::Connectivity:

[legend]

Public Types
typedef StructuringElement::iterator	iterator

typedef StructuringElement::const_iterator	const_iterator

typedef const bool(&	Matrix3x3x3Const)[3][3][3]

Public Types inherited from aims::StructuringElement
typedef std::vector< Point3dl >::iterator	iterator

typedef std::vector< Point3dl >::const_iterator	const_iterator

Public Member Functions
virtual	~Connectivity ()

virtual Connectivity *	clone () const =0
	Clone the StructuringElement. More...

virtual Matrix3x3x3Const	getMatrix () const =0
	return the Matrix3x3x3Const representing a structuring element. More...

Public Member Functions inherited from aims::StructuringElement
	StructuringElement ()

	StructuringElement (const std::vector< Point3dl > &vector)

virtual	~StructuringElement ()

iterator	begin ()
	Return iterator to beginning. More...

iterator	end ()
	Return iterator to end. More...

const_iterator	begin () const
	Return const_iterator to beginning. More...

const_iterator	end () const
	Return const_iterator to end. More...

size_t	size () const

const std::vector< Point3dl > &	getVector () const
	Return std::vector<Point3dl> More...

std::vector< int >	getAmplitude (const Point3dl &origin=Point3dl(0, 0, 0)) const
	Maximum distance to `origin` in each direction. More...

Protected Member Functions
void	setVectorFromMatrix (const Point3dl &origin=Point3dl(0, 0, 0), const bool usecenter=false)

Friends
class	ConnectivityFactory

Additional Inherited Members
Protected Attributes inherited from aims::StructuringElement
std::vector< Point3dl >	_vector

Detailed Description

aims::strel::Connectivity pure abstract class representing a "connectivity" 3D structuring element.

Connectivities are defined by a 3x3x3 boolean matrix. They can be generated from a keyword using aims::strel::ConnectivityFactory

See also: aims::strel::Connectivity4XY

Definition at line 370 of file structuring_element.h.

Member Typedef Documentation

◆ const_iterator

typedef StructuringElement::const_iterator aims::strel::Connectivity::const_iterator

Definition at line 375 of file structuring_element.h.

◆ iterator

typedef StructuringElement::iterator aims::strel::Connectivity::iterator

Definition at line 374 of file structuring_element.h.

◆ Matrix3x3x3Const

typedef const bool(& aims::strel::Connectivity::Matrix3x3x3Const)[3][3][3]

Definition at line 383 of file structuring_element.h.

Constructor & Destructor Documentation

◆ ~Connectivity()

virtual aims::strel::Connectivity::~Connectivity ( )

inlinevirtual

Definition at line 376 of file structuring_element.h.

Member Function Documentation

◆ clone()

virtual Connectivity* aims::strel::Connectivity::clone ( ) const

pure virtual

Clone the StructuringElement.

Reimplemented from aims::StructuringElement.

◆ getMatrix()

virtual Matrix3x3x3Const aims::strel::Connectivity::getMatrix ( ) const

pure virtual

return the Matrix3x3x3Const representing a structuring element.

Template Parameters

ConnectivityType Connectivity::Type used to get the Matrix3x3x3Const.

Returns: Matrix3x3x3Const that contains bool set to true for the structuring element.

◆ setVectorFromMatrix()

void aims::strel::Connectivity::setVectorFromMatrix	(	const Point3dl &	origin = `Point3dl(0, 0, 0)`,
		const bool	usecenter = `false`
	)

protected

Friends And Related Function Documentation

◆ ConnectivityFactory

friend class ConnectivityFactory

friend

Definition at line 372 of file structuring_element.h.

The documentation for this class was generated from the following file:

aims/connectivity/structuring_element.h
