TExpr.h File Reference

This file contains all the material a library user should need to use template expressions. More...

#include <algorithm>
#include <functional>
#include "til/til_common.h"
#include "til/templateTools.h"
#include "til/TExprBasicFunctors.h"
#include "til/TExprConcatenation.h"
#include "til/TExprPlaceHolders.h"
#include "til/TExprMacros.h"
#include "til/TExprOperators.h"
#include "til/TExprFunctions.h"

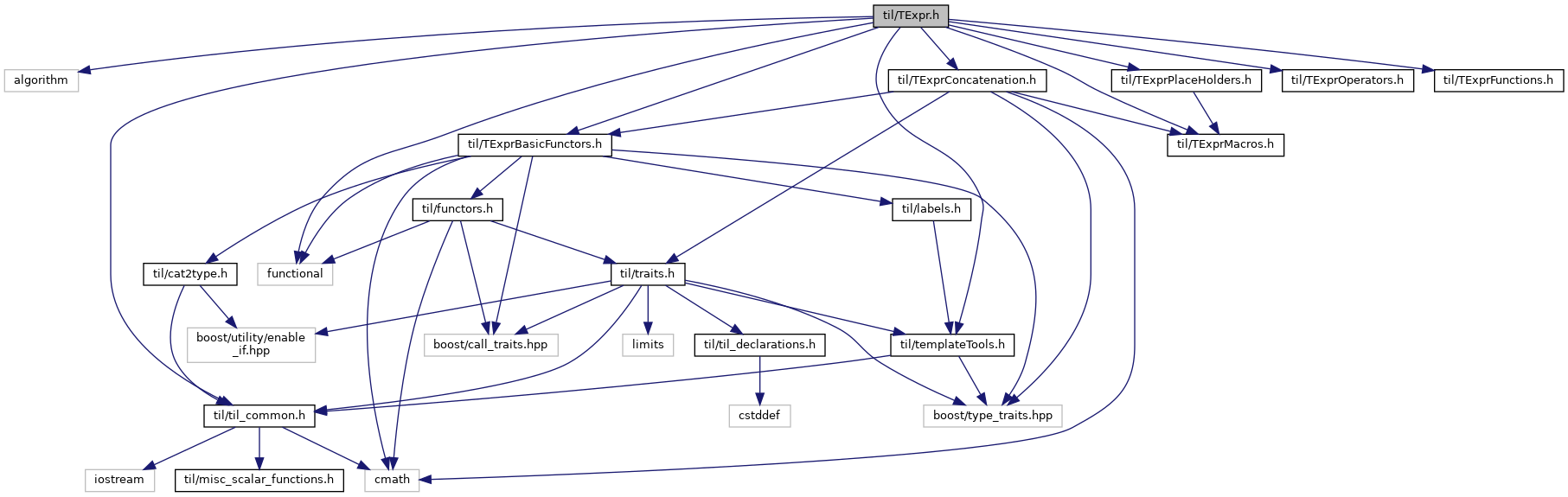

Include dependency graph for TExpr.h:

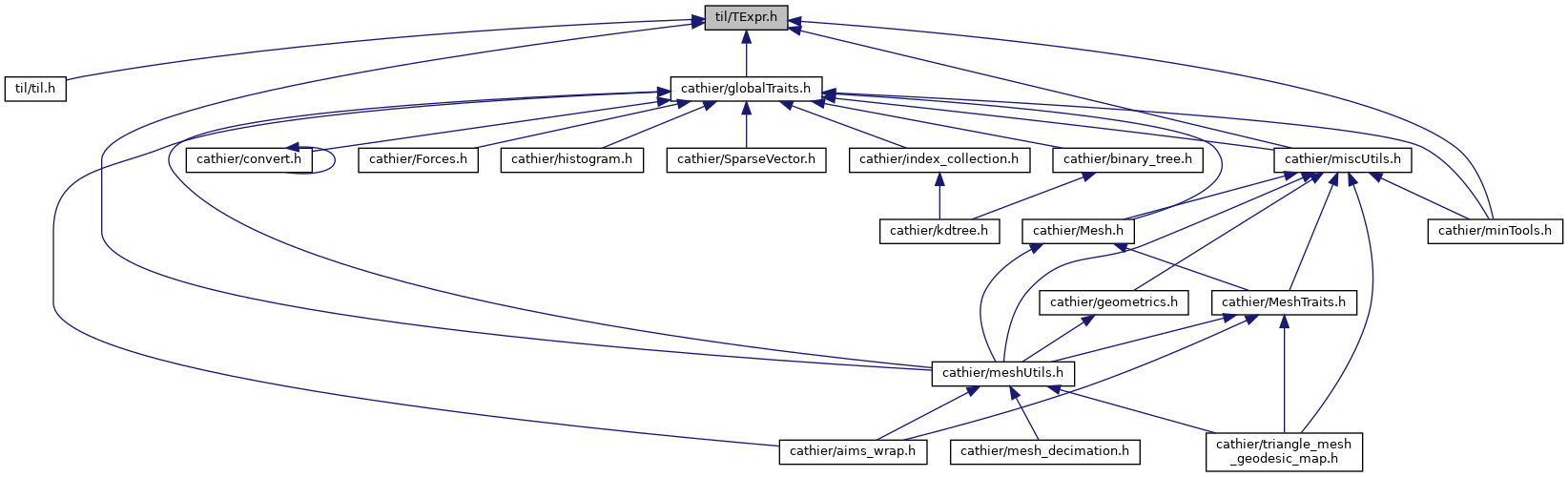

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	til::expr::TExprConstant< T >
	A template expression class for constant values. More...
class	til::expr::TExpr< Expr >
	A wrapper class of a template expression. More...
class	til::expr::TExprValue< N, T >
	Represent a constant in template expression. More...
struct	til::expr::TExprValue< N, T >::TypeStruct< Iterator1, Iterator2, Iterator3 >
class	til::expr::TExprLValue< T >
	A template expression class for left-values. More...
class	til::expr::TExprFunctorHelper< TFunctor >

Namespaces
	til
	Belongs to package Box Do not include directly, include til/Box.h instead.
	til::expr
	namespace for template expressions.
	til::detail
	Multiply an image with another object.

Macros
#define	TIL_DEFINE_TEXPR_ARITHMETIC_OPERATOR(name, functor)
#define	TIL_DEFINE_TEXPR_ARITHMETIC_OPERATOR_EXPR(name, functor)
#define	TIL_DEFINE_TEXPR_ARITHMETIC_OPERATOR_VALUE(name, functor)

Functions
template<typename Functor , typename TIterator >
void	til::floop (Functor &functor, TIterator iIm)
template<typename Functor , typename TIterator >
void	til::floop (Functor functor, TIterator iIm)
template<typename Functor , typename TIterator >
void	til::floop2 (TIterator iIm)
template<typename Expr , typename TIterator1 >
void	til::loop (expr::TExpr< Expr > &expr, TIterator1 iIm1)
template<typename Expr , typename TIterator1 >
void	til::loop (expr::TExpr< Expr > expr, TIterator1 iIm1)
template<typename Expr , typename TIterator >
void	til::detail::loop_c (expr::TExpr< Expr > expr, TIterator start, const TIterator &end)
template<typename Expr , typename TContainer >
void	til::detail::loop_x (expr::TExpr< Expr > expr, TContainer &c)
template<typename Expr , typename TIterator1 , typename TIterator2 , typename TIterator3 >
void	til::detail::loop_xxx (expr::TExpr< Expr > expr, TIterator1 start1, const TIterator1 end1, TIterator2 start2, TIterator3 start3)
template<typename Expr , typename TContainer1 , typename TContainer2 , typename TContainer3 >
void	til::detail::loop_xxx (expr::TExpr< Expr > expr, TContainer1 &c1, TContainer2 &c2, TContainer3 &c3)
template<typename Expr , typename TIterator1 , typename TIterator2 >
void	til::detail::loop_xx (expr::TExpr< Expr > expr, TIterator1 start1, const TIterator1 end1, TIterator2 start2)
template<typename Expr , typename TContainer1 , typename TContainer2 >
void	til::detail::loop_xx (expr::TExpr< Expr > expr, TContainer1 &c1, TContainer2 &c2)
template<int N, typename Expr , typename TIterator1 , typename TIterator2 >
void	til::depth_loop (expr::TExpr< Expr > expr, TIterator1 begin1, TIterator1 end1, TIterator2 begin2)
template<int N, typename Expr , typename TContainer1 , typename TContainer2 >
void	til::depth_loop (expr::TExpr< Expr > expr, TContainer1 &c1, TContainer2 &c2)
template<typename Functor , typename TIterator >
void	til::loopboost (Functor &functor, TIterator iIm)
template<typename Expr , typename TIterator1 >
void	til::loop2 (expr::TExpr< Expr > &expr, TIterator1 iIm1)
template<typename Expr , typename TIterator1 >
void	til::loop2 (expr::TExpr< Expr > expr, TIterator1 iIm1)
template<typename Expr , typename TIterator1 , typename TIterator2 >
enable_if_c< is_ImageIterator< TIterator1 >::value &&is_ImageIterator< TIterator2 >::value, expr::TExpr< Expr > >::type	til::loop (expr::TExpr< Expr > expr, TIterator1 iIm1, TIterator2 iIm2)
template<typename TFunctor , typename TRange >
void	til::loop_r (TFunctor f, TRange r)
template<typename Expr , typename TIterator1 , typename TIterator2 , typename TIterator3 >
enable_if_c< is_ImageIterator< TIterator1 >::value &&is_ImageIterator< TIterator2 >::value &&is_ImageIterator< TIterator3 >::value, expr::TExpr< Expr > >::type	til::loop (expr::TExpr< Expr > expr, TIterator1 iIm1, TIterator2 iIm2, TIterator3 iIm3)

Variables
const TExpr< expr::FirstArgument >	til::expr::_1 = TExpr<FirstArgument>()
	Placeholder for the first argument. More...
const TExpr< expr::SecondArgument >	til::expr::_2 = TExpr<SecondArgument>()
	Placeholder for the second argument. More...
const TExpr< expr::ThirdArgument >	til::expr::_3 = TExpr<ThirdArgument>()
	Placeholder for the third argument. More...

Detailed Description

This file contains all the material a library user should need to use template expressions.

This mainly comprises placeholders (_1, _2, _3) and the loop functions

Definition in file TExpr.h.

Macro Definition Documentation

TIL_DEFINE_TEXPR_ARITHMETIC_OPERATOR

#define TIL_DEFINE_TEXPR_ARITHMETIC_OPERATOR	(		name,
			functor
	)

Value:

TIL_DEFINE_TEXPR_ARITHMETIC_OPERATOR_EXPR(name, functor)                        \
TIL_DEFINE_TEXPR_ARITHMETIC_OPERATOR_VALUE(name, functor)                       \

Definition at line 98 of file TExpr.h.

Referenced by til::expr::TExpr< Expr >::operator()().

TIL_DEFINE_TEXPR_ARITHMETIC_OPERATOR_EXPR

#define TIL_DEFINE_TEXPR_ARITHMETIC_OPERATOR_EXPR	(		name,
			functor
	)

Value:

template < typename Expr2 >                                                                                                                                               \
TExpr<TExprBinaryOperator_NoRes<Expr, Expr2, functor> >                                                                           \
name (const TExpr<Expr2> &e) const                                                                                                                            \
{                                                                                                                                                                                                               \
        typedef TExprBinaryOperator_NoRes< Expr, Expr2, functor > TExprRet;                                         \
        return TExpr<TExprRet>(TExprRet(this->getExpr(), e.getExpr(), functor ()));               \
}                                                                                                                                                                                                               \

Definition at line 103 of file TExpr.h.

TIL_DEFINE_TEXPR_ARITHMETIC_OPERATOR_VALUE

#define TIL_DEFINE_TEXPR_ARITHMETIC_OPERATOR_VALUE	(		name,
			functor
	)

Value:

template < typename T >                                                                                                                                                         \
TExpr<TExprBinaryOperator_NoRes<Expr, TExprConstant<T>, functor> >                                                                  \
name (const T & value) const                                                                                                                                          \
{                                                                                                                                                                                                                         \
        typedef TExprBinaryOperator_NoRes< Expr, TExprConstant<T>, functor > TExprRet;                                    \
        return TExpr<TExprRet>(TExprRet(this->getExpr(), TExprConstant<T>(value), functor ()));         \
}                                                                                                                                                                                                                         \

Definition at line 113 of file TExpr.h.
