dwt.h File Reference

#include "til/numeric_array.h"
#include "dwt.tpp"

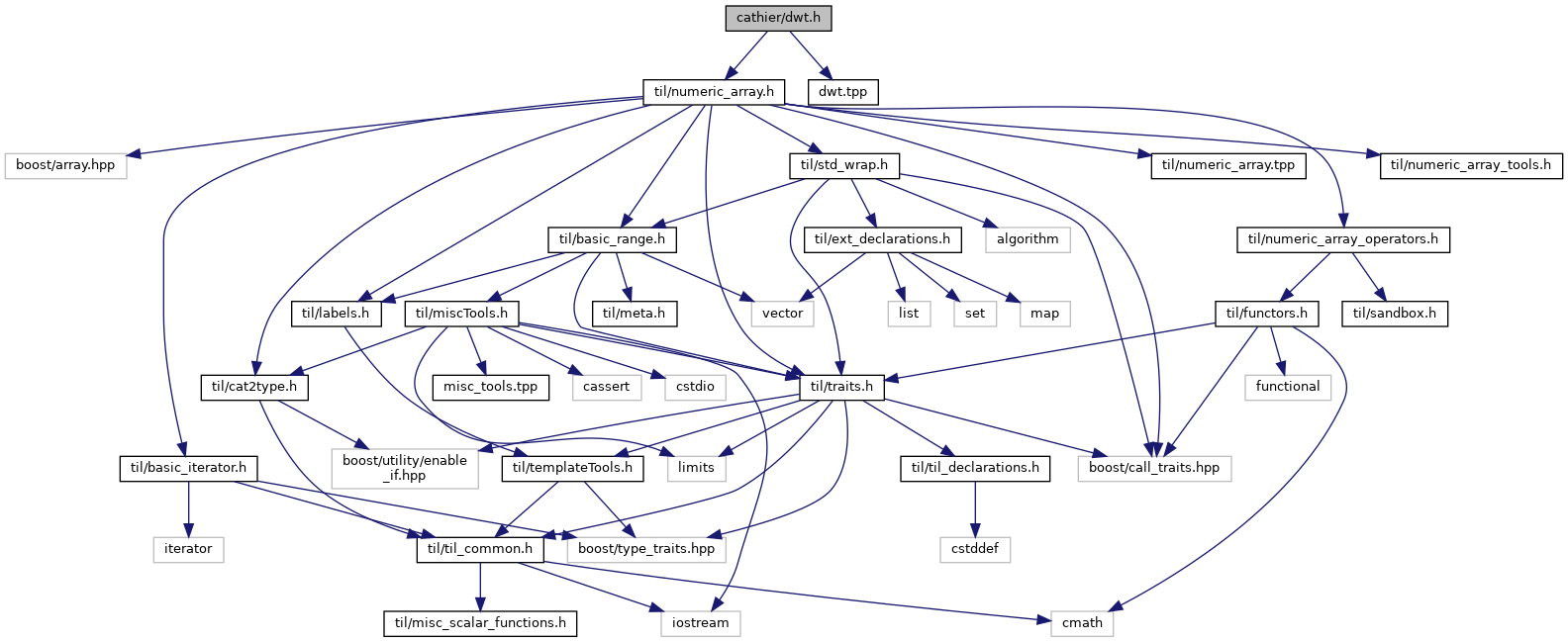

Include dependency graph for dwt.h:

Go to the source code of this file.

Classes
struct	til::DWTCubic< T, BC >
	In-place (4-2) DWT via lifting. More...
struct	til::DWTCubic< T, BC >::Direct
	Direct DWT. More...
struct	til::DWTCubic< T, BC >::Inverse
	Inverse DWT. More...
struct	til::DWTCubicConjugate< T, BC >
	Transposed filter of (4-2). More...
struct	til::DWTCubicConjugate< T, BC >::Direct
	Direct DWT. More...
struct	til::DWTCubicConjugate< T, BC >::Inverse
	Inverse DWT. More...
class	til::DWTND< DWT, D >
	Extension of DWT to multidimensional arrays. More...
class	til::DWTND< DWT, 2 >
class	til::DWTND< DWT, 3 >
struct	til::MultiDWT
	Multi-scale in-place DWT. More...
class	til::MultiDWT::Direct< DWT >
	Direct multiscale DWT. More...
class	til::MultiDWT::Inverse< IDWT >
	Inverse multiscale DWT. More...
struct	til::MultiDWTND
	Multi-scale in-place DWT in N-D. More...
class	til::MultiDWTND::Direct< DWT, D >
class	til::MultiDWTND::Inverse< IDWT, D >
struct	til::MultiDWTPower< T >
struct	til::MultiDWTNDPower< T, D >
struct	til::MultiDWTNDPower< T, 3 >
class	til::MultiDWTShuffle< T >
struct	til::MultiDWTNDShuffle< T, D >
struct	til::MultiDWTNDShuffle< T, 2 >
struct	til::MultiDWTNDShuffle< T, 3 >

Namespaces
	til
	Belongs to package Box Do not include directly, include til/Box.h instead.

Functions
template<typename T , typename BC >
void	til::dwt_cubic (T *s, std::size_t n, std::size_t step, BC)
	In-place (4-2) DWT via lifting. More...
template<typename T >
void	til::dwt_cubic (T *s, std::size_t n, std::size_t step)
	Same as above with cyclic bc by default. More...
template<typename T , typename BC >
void	til::idwt_cubic (T *s, std::size_t n, std::size_t step, BC)
	In-place inverse (4-2) DWT via lifting. More...
template<typename T >
void	til::idwt_cubic (T *s, std::size_t n, std::size_t step)
	Same as above with cyclic bc by default. More...
template<typename T , std::size_t D>
void	til::dwtND_cubic (T *im, numeric_array< std::size_t, D > dim)
template<typename T , std::size_t D>
void	til::dwtND_cubicConjugate (T *im, numeric_array< std::size_t, D > dim)
template<typename T , typename BC >
void	til::multi_dwt_cubic (T *s, std::size_t dim, BC)
template<typename T >
void	til::multi_dwt_cubic (T *s, std::size_t dim)
template<typename T , typename BC >
void	til::multi_idwt_cubic (T *s, std::size_t dim, BC)
template<typename T >
void	til::multi_idwt_cubic (T *s, std::size_t dim)
template<typename T , std::size_t D, typename BC >
void	til::multi_dwtND_cubic (T *im, numeric_array< std::size_t, D > dim, BC)
template<typename T , std::size_t D>
void	til::multi_dwtND_cubic (T *im, numeric_array< std::size_t, D > dim)
template<typename T , std::size_t D, typename BC >
void	til::multi_idwtND_cubic (T *im, numeric_array< std::size_t, D > dim, BC)
template<typename T , std::size_t D>
void	til::multi_idwtND_cubic (T *im, numeric_array< std::size_t, D > dim)
template<typename T >
void	til::multi_dwt_shuffle (T *s, std::size_t n)
template<typename T >
void	til::multi_dwt_unshuffle (T *s, std::size_t n)
template<typename T , std::size_t D>
void	til::multi_dwtND_shuffle (T *im, numeric_array< std::size_t, D > dim)
template<typename T , std::size_t D>
void	til::multi_dwtND_unshuffle (T *im, numeric_array< std::size_t, D > dim)
template<typename T , std::size_t D>
void	til::multi_dwtND_power (T *im, numeric_array< std::size_t, D > dim)
