#include <cmath>
#include <numeric>
#include <boost/shared_ptr.hpp>
#include "aims/mesh/surface.h"
#include "aims/vector/vector.h"
#include "til/functors.h"
#include "til/is_traits.h"
#include "til/loop.h"
#include "til/numeric_array.h"
#include "til/TExpr.h"
#include "til/traits.h"
#include "cyclic_iterator.h"
#include "geometrics.h"
#include "globalTraits.h"
#include "Mesh.h"
#include "MeshTraits.h"
#include "miscUtils.h"
#include "mesh_utils.tpp"

Include dependency graph for meshUtils.h:

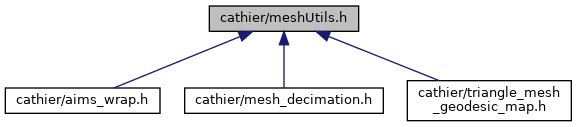

This graph shows which files directly or indirectly include this file:

Go to the source code of this file.

Classes
class	MeshTraits< T >

class	til::Get_edges_and_faces< TFaceCollection >

class	til::Mesh_curvature2< TVertexXsr, TCircularNeighborXsr, prec_type >

class	til::Mesh_curvature< TVertexCollection, TCircularNeighborIndices, prec_type >

class	til::policy::IntegerIndexing< TCollection >
	Mesh policy for vertices indexed with an integer. More...

struct	til::policy::IteratorIndexing< TIterator >
	Return value pointed at by an iterator. More...

struct	til::policy::GraphIteratorIndexing_Position< TIterator >

struct	til::policy::GraphIteratorIndexing_Neighbors< TIterator >

class	til::MeshCurvature2< TVertexAccessPolicy, TCircularNeighborhoodAccessPolicy, prec_type >

class	til::GonzalezClustering< TData, TPrec, TDist >
	Gonzalez clustering. More...

class	til::ScaleIndependantLaplacianSmoothing< TVertexAccessPolicy, TNeighborhoodAccessPolicy, TVertexAccessPolicy2 >

class	til::LaplacianSmoothing< TInputAccessPolicy, TOutputAccessPolicy, TNeighborhoodAccessPolicy >
	Discrete Laplacian smoothing. More...

class	til::LambdaMuSmoothing< TVertexAccessPolicy, TNeighborhoodAccessPolicy >

class	til::Neighboring_faces< T >

struct	til::Neighboring_faces< T >::InconsistentArguments

Namespaces
	til
	Belongs to package Box Do not include directly, include til/Box.h instead.

	til::detail
	Multiply an image with another object.

	til::policy

Functions
AimsSurfaceTriangle *	makeSphere (const Point3df &center, float radius, int iter)

template<typename TMesh >
std::size_t	til::getVertexNumber (const TMesh &, std::size_t i)
	Return the index of vertex v[i] – which is, obviously, i. More...

template<typename TMesh , typename TVertex >
boost::enable_if< is_same_naked< typename MeshTraits< TMesh >::Vertex, TVertex >, std::size_t >::type	til::getVertexNumber (const TMesh &mesh, TVertex *p)
	Return the index of the vertex pointed at by *p. More...

void	til::detail::convert_aimsmeshTomesh1 (const AimsTimeSurface< 3, Void > &meshFrom, til::Mesh1 &meshTo)

void	til::detail::convert_mesh1Toaimsmesh (const til::Mesh1 &meshFrom, AimsTimeSurface< 3, Void > &meshTo)

template<class TMeshFrom , class TMeshTo >
void	til::detail::convert_mesh_2 (const TMeshFrom &meshFrom, TMeshTo &meshTo)
	When indices of from are numbers and two are pointers. More...

template<class TMeshFrom , class TMeshTo >
void	til::detail::convert_mesh_3 (const TMeshFrom &meshFrom, TMeshTo &meshTo)

template<typename TFaceCollection >
void	til::get_edges_and_faces (TFaceCollection const &faces, std::vector< std::pair< std::size_t, std::size_t > > &res, std::vector< std::vector< std::size_t > > &newfaces)

template<typename TFaceCollection >
shared_ptr< std::vector< std::pair< std::size_t, std::size_t > > >	til::faces2edges (TFaceCollection const &faces)
	Collects edges from a set of faces. More...

template<typename TNeighborhoodCollection >
void	til::neighborhoods2edges (TNeighborhoodCollection const &neigh, std::vector< std::pair< std::size_t, std::size_t > > &edges)
	Collects edges from a set of neighbors. More...

template<typename TFaceCollection >
shared_ptr< std::vector< std::vector< typename TFaceCollection::value_type::value_type > > >	til::circular_neighborhoods (TFaceCollection const &faces, std::size_t nVertices)
	Get point neighbors so that they form a loop around points. More...

template<typename TVertexCollection , typename TFaceCollection >
shared_ptr< std::vector< std::vector< typename TFaceCollection::value_type::value_type > > >	til::circular_neighborhoods (const TVertexCollection &vertices, const TFaceCollection &faces)

template<typename TMesh >
shared_ptr< std::vector< std::vector< typename MeshTraits< TMesh >::FaceIndex::value_type > > >	til::getNeighborIndices (const TMesh &mesh)

template<typename TVertexCollection , typename TFaceIndexCollection >
void	til::getNeighborIndices (const TVertexCollection &vertices, const TFaceIndexCollection &faces, std::vector< std::vector< std::size_t > > &neigh)

template<typename TParam >
detail::AddNeighborIndexAttribute< Mesh< TParam > >	til::addNeighborsToMesh (const Mesh< TParam > &mesh)

template<typename TMesh , typename TContainer , typename TFunctor >
void	til::detail::for_each_neighbors_N (const TMesh &mesh, TContainer &c, TFunctor f)
	Apply a functor for each pair (vertex, neighbor_of_vertex), given a mesh and another container. More...

template<typename TMesh , typename TContainer , typename TFunctor >
void	til::detail::for_each_neighbors_V (const TMesh &mesh, TContainer &c, TFunctor f)
	Apply a functor for each pair (vertex, neighbor_of_vertex), given a mesh and another container. More...

template<typename TMesh , typename TContainer , typename TFunctor >
boost::enable_if_c< is_container< typename TContainer::value_type >::value >::type	til::for_each_neighbors (const TMesh &mesh, TContainer &c1, TFunctor f)

template<typename TMesh , typename TContainer , typename TFunctor >
boost::enable_if_c< !is_container< typename TContainer::value_type >::value >::type	til::for_each_neighbors (const TMesh &mesh, TContainer &c1, TFunctor f)

template<typename TMesh , typename TContainer1 , typename TContainer2 , typename TFunctor >
void	til::detail::for_each_neighbors_NN (const TMesh &mesh, TContainer1 &c1, TContainer2 &c2, TFunctor f)
	Apply a functor for each pair (vertex, neighbor_of_vertex), given a mesh and two extra containers. More...

template<typename TMesh , typename TContainer1 , typename TContainer2 , typename TFunctor >
void	til::detail::for_each_neighbors_NV (const TMesh &mesh, TContainer1 &c1, TContainer2 &c2, TFunctor f)
	Apply a functor for each pair (vertex, neighbor_of_vertex), given a mesh and two extra containers. More...

template<typename TMesh , typename TContainer1 , typename TContainer2 , typename TFunctor >
boost::enable_if_c< is_container< typename TContainer1::value_type >::value &&is_container< typename TContainer2::value_type >::value >::type	til::for_each_neighbors (const TMesh &mesh, TContainer1 &c1, TContainer2 &c2, TFunctor f)
	Apply a functor for each pair (vertex, neighbor_of_vertex), given a mesh and two extra containers. More...

template<typename TMesh , typename TContainer1 , typename TContainer2 , typename TFunctor >
boost::enable_if_c< is_container< typename TContainer1::value_type >::value &&!is_container< typename TContainer2::value_type >::value >::type	til::for_each_neighbors (const TMesh &mesh, TContainer1 &c1, TContainer2 &c2, TFunctor f)
	Apply a functor for each pair (vertex, neighbor_of_vertex), given a mesh and two extra containers. More...

template<typename TPrecision , typename TMesh >
boost::enable_if_c< MeshTraits< TMesh >::has_neighbor_indices >::type	til::getEdgeLengths (const TMesh &mesh, std::vector< std::vector< TPrecision > > &lengths)
	Computes edge lengths of a mesh. More...

template<typename TCollection , typename TPrec >
shared_ptr< std::vector< typename TCollection::const_iterator > >	til::gonzalez_clustering (const TCollection &data, TPrec maxDiam)
	Gonzalez clustering. More...

template<typename TPrec , typename TVertexIndex , typename TVertexCollection , typename TNeighborhood , typename TVertex >
TPrec	til::dist2_surface (const TVertex &p, TVertexIndex i, const TVertexCollection &vertices, const TNeighborhood &neighc)
	Simple flattening of a point and its neighborhood. More...

template<typename TPrec , typename TVertexIndex , typename TVertexCollection , typename TNeighborhood , typename TVertex >
numeric_array< double, 3 >	til::closest_normal (const TVertex &p, TVertexIndex i, const TVertexCollection &vertices, const TNeighborhood &neighc)
	Returns the index of the neighborhood that is the closest. More...

template<typename TVertex >
void	til::laplacian_smoothing (std::vector< TVertex > &vertices, std::vector< std::vector< std::size_t > > &neighbors, unsigned int nstep, double coeff)
	Laplacian smoothing – helper function. More...

template<typename NeighborCollection , typename NeighborCollectionOut >
void	til::get_n_neighborhood (NeighborCollection const &neigh, NeighborCollectionOut &neigh_n_out, unsigned int n)
	Computes the n-neighborhood, i.e. collection of neighbors that are at most n jumps away. More...

template<typename T >
void	til::neighbors2edges (std::vector< std::vector< T > > const &neighbors, std::vector< std::pair< T, T > > &edges)
	Convert a set of neighborhoods into a set of edges. More...

template<typename T >
void	til::neighboring_faces (std::vector< std::vector< T > > const &cneighs, std::vector< til::numeric_array< T, 3 > > const &faces, std::vector< std::vector< T > > &neighborfaces)
	Computes the index of the neighboring faces. More...

Function Documentation

◆ makeSphere()

AimsSurfaceTriangle* makeSphere	(	const Point3df &	center,
		float	radius,
		int	iter
	)

Parameters

center	the center of the sphere
radius	the radius of the spere
iter	the number of subdivision iterations
