3D window, OpenGL rendering More...

#include <anatomist/window3D/window3D.h>

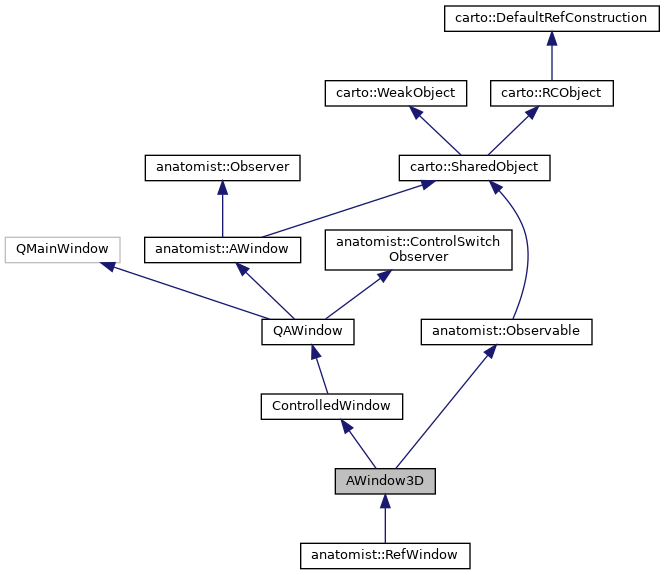

Inheritance diagram for AWindow3D:

[legend]

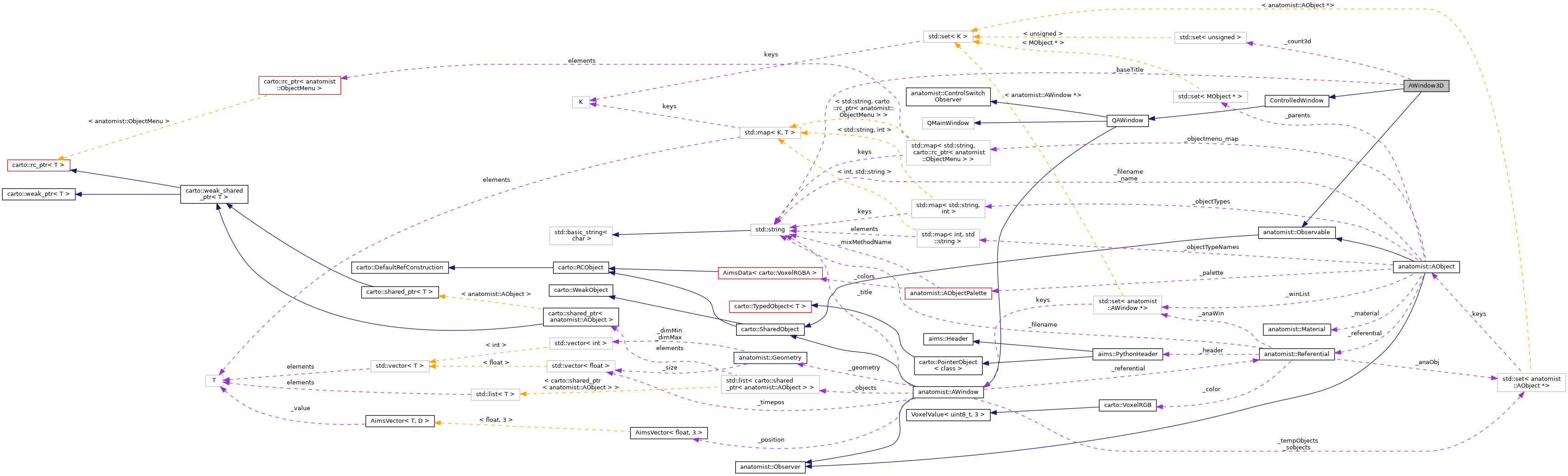

Collaboration diagram for AWindow3D:

[legend]

Classes
class	ObjectModifier
	Functions that can modify on-the-fly display primitives of an object. More...

Public Types
enum	ViewType { Oblique, Axial, Sagittal, Coronal, ThreeD }

enum	RenderingMode { Normal, Wireframe, Outlined, HiddenWireframe, Fast }

enum	ClipMode { NoClip, Single, Double }

typedef anatomist::GLWidgetManager (	GLWidgetCreator) (anatomist::AWindow win, QWidget parent, const char name, const QGLWidget shareWidget, Qt::WindowFlags f)

Public Types inherited from anatomist::AWindow
enum	Type { CTRL_WINDOW = 100, WINDOW_2D = 101, WINDOW_3D = 102 }

enum	SubType { AXIAL_WINDOW = 200, SAGITTAL_WINDOW = 201, CORONAL_WINDOW = 202, OBLIQUE_WINDOW = 203, OTHER = 299 }

enum	RecordingState { OFF, ON, DISABLED }

Public Types inherited from carto::RCObject
typedef int	RefCounterType

Public Slots
virtual void	polish ()

void	resizeView ()

void	changeSlice (int)

void	changeTime (int)

void	changeTimeSliders (int, int)

void	changeReferential ()

void	muteAxial ()

void	muteCoronal ()

void	muteSagittal ()

void	muteOblique ()

void	mute3D ()

void	lightView ()

void	pointsOfView ()

void	tools ()

void	syncViews (bool keepextrema=false)

void	focusView ()

void	toolsWinDestroyed ()

void	povWinDestroyed ()

void	lightWinDestroyed ()

virtual void	Refresh ()

virtual void	refreshNow ()
	Refresh the window (redraw the contained objects). More...

void	refreshTemp ()
	Redraws temporary objects only. More...

void	refreshTempNow ()

void	refreshLightView ()
	Only redraws existing objects (in most cases, just calls existing OpenGL lists, except for observer-dependent objects) More...

void	refreshLightViewNow ()

void	setAutoRotationCenter ()

void	askZoom ()

float	getZoom () const

int	getSliceSliderPosition ()

int	getTimeSliderPosition ()

int	getSliceSliderMaxPosition ()

int	getTimeSliderMaxPosition ()

void	setSliceSliderPosition (int position)

void	setTimeSliderPosition (int position)

void	switchToolbox ()

void	setLinkedCursorPos ()

void	openStereoView ()

void	toggleStatusBarVisibility ()

bool	toopTipsEnabled () const

void	enableToolTips (bool)

void	resizeEvent (QResizeEvent *)

QImage	snapshotImage (int width=0, int height=0, int bufmode=0)
	Get a snapshot of the window, after a refresh if needed. More...

Public Slots inherited from ControlledWindow
virtual void	activeControlChanged (QAction *)

virtual void	updateControls ()

Public Slots inherited from QAWindow
virtual void	refreshNow ()
	Real drawing function, replacing AWindow::Refresh in subclasses of QAWindow - Don't forget to call QAWindow::refreshNow from overloaded functions. More...

virtual bool	needsRedraw () const

virtual void	detach ()
	detach view from a block More...

virtual void	toggleToolBars ()

virtual void	toggleFullScreen ()

void	triggeredRefresh ()
	calls refreshNow() and cleanup More...

Signals
void	refreshed ()

Public Member Functions
	AWindow3D (ViewType t=Oblique, QWidget *parent=0, carto::Object params=carto::none(), Qt::WindowFlags f=0)

virtual	~AWindow3D ()

virtual Type	type () const
	Get the window type (2D, 3D or control) More...

virtual SubType	subtype () const

virtual void	registerObject (anatomist::AObject *obj, bool temporaryObject=false, int position=-1)

virtual void	unregisterObject (anatomist::AObject *obj)

virtual bool	positionFromCursor (int x, int y, Point3df &pos)
	Translates mouse position to Anatomist geometry position. More...

virtual anatomist::AObject *	objectAtCursorPosition (int x, int y)
	pick the object at the cursor 2D position More...

virtual std::list< anatomist::AObject * > *	objectsAtCursorPosition (int x, int y, int tolerenceRadius)
	pick several objects at the cursor 2D position More...

virtual int	polygonAtCursorPosition (int x, int y, const anatomist::AObject *obj)
	pick a polygon on a selected object at the cursor 2D position More...

int	computeNearestVertexFromPolygonPoint (const anatomist::ViewState &vs, int poly, const anatomist::GLComponent *glc, const Point3df &position, Point3df &positionNearestVertex)
	print all infos about vertex picked on a polygon selected More...

void	getInfos3DFromClickPoint (int x, int y, Point3df &position, int poly, anatomist::AObject objselect, std::string &objtype, std::vector< float > &texvalue, std::string &textype, Point3df &positionNearestVertex, int *indexNearestVertex)

bool	surfpaintIsVisible ()

void	setVisibleSurfpaint (bool b)

bool	constraintEditorIsActive ()

void	setActiveConstraintEditor (bool b)

void	loadConstraintData (const std::vector< std::string > &constraintList, int constraintType, anatomist::AObject *texConstraint)

std::vector< std::string >	getConstraintList ()

int	getConstraintType () const

anatomist::AObject *	getConstraintTexture ()

void	printPositionAndValue ()

void	displayInfoAtClickPosition (int x, int y)

virtual void	displayClickPoint ()

void	setViewPoint (float *quaternion, const float zoom)
	set the view of the scene More...

anatomist::Light *	light ()

void	setLight (const anatomist::Light &light)

void	setOrientationCube (bool state)
	Compass handling methods. More...

bool	hasOrientationCube () const

void	setBoundingFrame (bool state)
	Frame handling methods. More...

bool	hasBoundingFrame () const

void	setRenderingMode (RenderingMode mode)
	Rendering mode (normal, wireframe, fast) More...

RenderingMode	renderingMode () const

virtual const std::set< unsigned > &	typeCount () const

virtual std::set< unsigned > &	typeCount ()

virtual const std::string &	baseTitle () const

virtual void	setPosition (const Point3df &position, const anatomist::Referential *orgref)
	Set position of cursor. More...

virtual void	setPosition (const std::vector< float > &position, const anatomist::Referential *orgref)

virtual void	updateWindowGeometry ()
	adapts geometry to the current contents and referential More...

virtual anatomist::View *	view ()

virtual const anatomist::View *	view () const

virtual void	setViewType (ViewType t)
	Mute into a new view type (Axial, Sagittal, Coronal or Oblique) More...

ViewType	viewType () const

bool	isViewOblique () const

bool	perspectiveEnabled () const

void	enablePerspective (bool)

const aims::Quaternion &	sliceQuaternion () const

void	setSliceQuaternion (const aims::Quaternion &q)

void	setSliceOrientation (const Point3df &normal)

void	resizeView (int w, int h)
	Tries to resize the viewing area to given size. More...

bool	boundingBox (std::vector< float > &bmin, std::vector< float > &bmax) const
	Get bounding box in N-dimension mode (new in anatomist 4.6) More...

ClipMode	clipMode () const

void	setClipMode (ClipMode m)

float	clipDistance () const

void	setClipDistance (float d)

bool	transparentZEnabled () const

void	enableTransparentZ (bool)

bool	cullingEnabled () const

void	setCulling (bool)

bool	flatShading () const

void	setFlatShading (bool)

bool	smoothing () const

void	setSmoothing (bool)

void	setFog (bool)

bool	fog () const

virtual void	setReferential (anatomist::Referential *ref)

virtual void	update (const Observable obs, void )

void	setLinkedCursorOnSliderChange (bool x)

bool	linkedCursorOnSliderChange () const

AWindow3D *	leftEyeWindow ()

AWindow3D *	rightEyeWindow ()

void	setLeftEyeWindow (AWindow3D *)

void	setRightEyeWindow (AWindow3D *)

virtual void	showToolBars (int state=2)
	Shows or hides all tools (menu, toolbars) around the main view area. More...

virtual void	showStatusBar (int state=2)

QSlider *	getSliceSlider (void) const

void	renderAfter (anatomist::AObject obj, anatomist::AObject afterthis)
	adds a rendering order constraint: obj will be rendered immediately after afterthis. More...

void	renderBefore (anatomist::AObject obj, anatomist::AObject beforethis)
	adds a rendering order constraint: obj will be rendered immediately before beforethis. More...

std::list< anatomist::AObject * >::iterator	processRenderingOrder (std::list< anatomist::AObject *> &opaque) const
	calculates the objects rendering order, according to various constraints (opaque/transparent, order at register time, before/after constraints). More...

bool	polygonsSortingEnabled () const

void	setPolygonsSortingEnabled (bool)

bool	polygonsSortingDirection () const
	returns false for back-to-front, true for front-to-back More...

void	setPolygonsSortingDirection (bool dir)

virtual void	sortPolygons (bool force=false)

void	renderSelectionBuffer (anatomist::ViewState::glSelectRenderMode mode, const anatomist::AObject *selectedobject=0)

Public Member Functions inherited from ControlledWindow
	ControlledWindow (QWidget parent=0, const char name=0, carto::Object options=carto::none(), Qt::WindowFlags f=0)

virtual	~ControlledWindow ()

virtual void	updateAvailableControls ()

virtual void	updateActivableControls ()

virtual void	updateActions ()

virtual void	updateActiveControl ()

std::map< std::string, QAction * >	getControlButtonObjects (void)

Public Member Functions inherited from QAWindow
	QAWindow (QWidget parent=0, const char name=0, carto::Object params=carto::none(), Qt::WindowFlags f=0)

virtual	~QAWindow ()

virtual void	setGeometry (int x, int y, unsigned w, unsigned h)

virtual void	geometry (int x, int y, unsigned w, unsigned h)
	Get position and dimensions of the window. More...

virtual void	show ()

virtual void	hide ()

virtual void	iconify ()

virtual void	unIconify ()

virtual bool	close ()

void	setFullScreen (int state=2)

bool	isFullScreen () const

virtual void	setTitle (const std::string &name)

virtual void	enableDetachMenu (bool x)

void	Refresh ()
	In QAWindows, Refresh() doesn't redraw right now. More...

virtual QToolBar *	addToolBar (const QString &title, const QString &name)

virtual void	addToolBar (QToolBar *, const QString &name)

virtual void	addToolBar (Qt::ToolBarArea area, QToolBar *toolbar, const QString &name)

virtual void	removeToolBar (QToolBar *toolbar)

virtual QToolBar *	removeToolBar (const QString &name)

QToolBar *	toolBar (const QString &name)

void	setDetachMenuAction (QAction *)

Public Member Functions inherited from anatomist::AWindow
virtual	~AWindow ()
	Unregisters from the application and other objects. More...

virtual std::string	Title () const

void	setId (int id)
	Set the window identifier. More...

void	SetRefreshFlag ()
	Set the refresh flag on. More...

void	ResetRefreshFlag ()
	Set the refresh flag off. More...

bool	lookupChanged () const

void	setLookupChanged (bool flg=true)

int	id () const
	Get the window identifier. More...

bool	RefreshFlag () const
	Get the refresh flag status. More...

std::set< AObject * >	Objects () const
	Get the objects. More...

bool	hasObject (AObject *obj) const

virtual Point3df	getPosition () const
	Get position of cursor. More...

float	getTime () const
	Get time position of cursor. More...

virtual std::vector< float >	getFullPosition () const

virtual void	setTime (float time)
	Set time position of cursor. More...

Referential *	getReferential () const

Geometry *	windowGeometry () const

void	setWindowGeometry (Geometry *geom)

int	Group () const

void	setGroup (int group)

void	setHasCursor (int hasCursor)

bool	hasCursor () const
	takes both the global and own flags into account More...

int	hasSelfCursor () const
	returns the own flag of the window (see hasGlobalCursor) (tri-state) More...

virtual AObject *	objectAt (const std::vector< float > &pos)

virtual void	selectObject (const std::vector< float > &pos, int modifier)
	Selects (highlights) object at a given 4D space position. More...

virtual void	button3clicked (int x, int y)
	handles button3 click (menu) More...

virtual void	findObjectsAt (const std::vector< float > &pos, std::set< AObject > &shown, std::set< AObject > &hidden)
	finds objects at given position (internal) More...

virtual void	update (const Observable observable, void arg)
	This method is called whenever the observed object is changed. More...

virtual void	recordImages ()

virtual RecordingState	recordingState () const

virtual void	startRecord ()

virtual void	startRecord (const std::string &filename)

virtual void	stopRecord ()

virtual bool	needsRedraw () const
	returns true if a refresh has been triggered and not performed yet (in subclasses: AWindow always returns false) More...

bool	isTemporary (AObject *o) const

const std::set< AObject * > &	temporaryObjects () const

void	displayTalairach ()
	Affiche les coordonnees de Talairach qui correspondent a la position du curseur lie (window 2D) More...

virtual bool	toolBarsVisible () const

virtual void	setupWindow ()
	Sets correct size and lookup of the window. More...

Public Member Functions inherited from carto::SharedObject
	SharedObject ()

	SharedObject (const SharedObject &x)

virtual	~SharedObject ()

SharedObject &	operator= (const SharedObject &)

bool	testDeletable ()

bool	tryDelete ()

Public Member Functions inherited from carto::WeakObject
void	attachWeakPtr (weak_ptr< T > &) const

void	detachWeakPtr (weak_ptr< T > &) const

void	attachWeakPtr (weak_shared_ptr< T > &) const

void	detachWeakPtr (weak_shared_ptr< T > &) const

virtual	~WeakObject ()

Public Member Functions inherited from carto::RCObject
	RCObject ()

	RCObject (const RCObject &)

RCObject &	operator= (const RCObject &)

virtual	~RCObject ()

Public Member Functions inherited from anatomist::Observer
virtual	~Observer ()

Public Member Functions inherited from anatomist::ControlSwitchObserver
	ControlSwitchObserver ()

virtual	~ControlSwitchObserver ()

Public Member Functions inherited from anatomist::Observable
	Observable ()
	Construct an Observable with zero observers. More...

virtual	~Observable ()
	does nothing More...

void	addObserver (Observer *observer)
	Adds an observer to the set of observers for this object. More...

void	deleteObserver (Observer *observer)
	Deletes an observer from the set of observers of this object. More...

void	deleteObservers ()
	Clears the observer list so that this object no longer has any observers (doesn't call any observer method - see notifyUnregisterObservers() for this ) More...

int	countObservers () const
	Returns the number of observers of this object. More...

virtual void	notifyObservers (void *arg=0)
	If this object has changed, as indicated by the hasChanged method, then notify all of its observers. More...

virtual void	notifyUnregisterObservers ()
	Notifies observable destruction to all observers and unregisters them. More...

bool	hasChanged () const
	Tests if this object has changed. More...

bool	obsHasChanged (int) const
	only valid during an Observer::update() More...

bool	obsHasChanged (const std::string &) const
	only valid during an Observer::update() More...

void	setChanged () const
	Indicates that this object has changed. More...

Static Public Member Functions
static anatomist::Geometry	setupWindowGeometry (const std::list< carto::shared_ptr< anatomist::AObject > > &objects, const aims::Quaternion &slicequat, const anatomist::Referential wref=0, QGLWidget glw=0, bool with3d=false)

static void	setGLWidgetCreator (GLWidgetCreator)
	hook to create inherited QAGLWidgets (Vtk-enabled for instance) More...

Static Public Member Functions inherited from anatomist::AWindow
static void	setLeftRightDisplay (bool state)

static int	leftRightDisplay ()

static void	setLeftRightDisplaySize (int size)

static int	leftRightDisplaySize ()

static void	setDisplayedAnnotations (const std::vector< std::string > &annotation_list)

static std::vector< std::string >	displayedAnnotations ()

static void	setGlobalHasCursor (bool hasCursor)

static int	hasGlobalCursor ()

static void	setCursorSize (int cursorSize)

static int	cursorSize ()

static void	setUseDefaultCursorColor (bool state)
	Set the default color cursor flag. More...

static int	useDefaultCursorColor ()
	Give the default color cursor flag. More...

static void	setCursorColor (const AimsRGB &cursCol)
	Set the color cursor. More...

static AimsRGB	cursorColor ()
	Give the color cursor. More...

static float	selectTolerence ()
	Selection tolerence distance. More...

static void	setSelectTolerence (float tol)
	Set the selection tolerence distance. More...

static void	recordCbk (void *clientdata)

Protected Slots
void	freeResize ()

void	saveSnapshot ()

void	saveSnapshotWithCustomSize ()

Protected Member Functions
void	showReferential ()

void	updateLeftRightAnnotations ()

void	displayClickPos (Point3df clickPos)
	Display the click point. More...

void	setupTimeSlider (const std::vector< float > &bmin, const std::vector< float > &bmax)

void	setupSliceSlider (float mins, float maxs)

void	setupSliceSlider ()

void	updateViewTypeToolBar ()

void	updateObject (anatomist::AObject obj, anatomist::PrimList pl=0, anatomist::ViewState::glSelectRenderMode selectmode=anatomist::ViewState::glSELECTRENDER_NONE)

void	updateObject2D (anatomist::AObject obj, anatomist::PrimList pl=0, anatomist::ViewState::glSelectRenderMode selectmode=anatomist::ViewState::glSELECTRENDER_NONE)

void	updateObject3D (anatomist::AObject obj, anatomist::PrimList pl=0, anatomist::ViewState::glSelectRenderMode selectmode=anatomist::ViewState::glSELECTRENDER_NONE)

anatomist::GLPrimitives	cursorGLL () const

int	updateSliceSlider ()

void	updateTimeSliders ()

void	registerObjectModifier (ObjectModifier *mod)
	Allows changing display lists from normal objects DLists. More...

void	unregisterObjectModifier (ObjectModifier *mod)

bool	autoFusion2D (anatomist::AObject *obj)
	build or modify the auto Fusion2D object when adding a new object. More...

void	removeFromAutoFusion2D (anatomist::AObject *obj)
	delete or modify the auto Fusion2D object when removing an object More...

bool	inAutoFusion (const anatomist::AObject *obj) const

Protected Member Functions inherited from QAWindow
virtual void	createTitle ()
	Creates a new title for the window. More...

virtual void	dragEnterEvent (QDragEnterEvent *)

virtual void	dragMoveEvent (QDragMoveEvent *)

virtual void	dropEvent (QDropEvent *)

virtual void	mouseMoveEvent (QMouseEvent *e)

virtual void	closeEvent (QCloseEvent *event)

Protected Member Functions inherited from anatomist::AWindow
	AWindow ()
	AWindow constructor registers itself in the application. More...

void	setWindowTitle ()
	Set the title of the window. More...

virtual void	unregisterObservable (Observable *obs)
	Called when an observable is destroyed, only called by Observable: don't use this function directly. More...

void	manageAutoReferential ()
	automatically set the contained objects referential to the window if it has not been set manually, and if all objetcs share the same referential. More...

Protected Member Functions inherited from carto::SharedObject
void	disableRefCount ()

Protected Member Functions inherited from carto::WeakObject
	WeakObject ()

	WeakObject (const WeakObject &)

WeakObject &	operator= (const WeakObject &)

Protected Member Functions inherited from anatomist::Observer
virtual void	cleanupObserver ()
	call this function from inherited classes destructors. More...

virtual void	registerObservable (Observable *)
	only called by Observable: don't use this function directly More...

const std::set< Observable * > &	observed () const

Protected Member Functions inherited from anatomist::Observable
void	clearChanged () const
	Indicates that this object has no longer changed, or that it has already notified all of its observers of its most recent change. More...

void	obsSetChanged (int, bool=true) const
	int-based change flags (use enums to address them) More...

void	obsSetChanged (const std::string &, bool=true) const
	string-based change flags More...

Static Protected Attributes
static std::set< unsigned >	_count3d
	3D windows static counter More...

static std::string	_baseTitle

Friends
class	anatomist::internal::AGraphicsView

Additional Inherited Members
Protected Attributes inherited from anatomist::AWindow
int	_id
	Window identificator. More...

bool	_refresh
	Should the window be refreshed? More...

bool	_lookupChanged
	Lookup has changed (title or geometry) More...

std::list< carto::shared_ptr< AObject > >	_objects
	List of the objects contained in the window. More...

std::set< AObject * >	_sobjects
	Same but as a set (for fast search) More...

std::set< AObject * >	_tempObjects

std::vector< float >	_timepos
	Cursor time + next dimensions. More...

Referential *	_referential
	Referentiel. More...

Geometry *	_geometry
	Geometry. More...

std::string	_title
	Title of the window. More...

int	_instNumber
	Number of instance of the window class. More...

int	_group
	Group number, for linked windows. More...

Point3df	_position
	Click position. More...

Detailed Description

3D window, OpenGL rendering

Definition at line 69 of file window3D.h.

Member Typedef Documentation

◆ GLWidgetCreator

typedef anatomist::GLWidgetManager*(* AWindow3D::GLWidgetCreator) (anatomist::AWindow *win, QWidget *parent, const char *name, const QGLWidget *shareWidget, Qt::WindowFlags f)

Definition at line 234 of file window3D.h.

Member Enumeration Documentation

◆ ClipMode

enum AWindow3D::ClipMode

Enumerator
NoClip
Single
Double

Definition at line 92 of file window3D.h.

◆ RenderingMode

enum AWindow3D::RenderingMode

Enumerator
Normal
Wireframe
Outlined
HiddenWireframe
Fast

Definition at line 83 of file window3D.h.

◆ ViewType

enum AWindow3D::ViewType

Enumerator
Oblique
Axial
Sagittal
Coronal
ThreeD

Definition at line 74 of file window3D.h.

Constructor & Destructor Documentation

◆ AWindow3D()

AWindow3D::AWindow3D	(	ViewType	t = `Oblique`,
		QWidget *	parent = `0`,
		carto::Object	params = `carto::none()`,
		Qt::WindowFlags	f = `0`
	)

◆ ~AWindow3D()

virtual AWindow3D::~AWindow3D ( )

virtual

Member Function Documentation

◆ askZoom

void AWindow3D::askZoom ( )

slot

◆ autoFusion2D()

bool AWindow3D::autoFusion2D ( anatomist::AObject * obj )

protected

build or modify the auto Fusion2D object when adding a new object.

Returns true if the object is actually added to the auto fusion.

◆ baseTitle()

virtual const std::string& AWindow3D::baseTitle ( ) const

virtual

Reimplemented from anatomist::AWindow.

◆ boundingBox()

bool AWindow3D::boundingBox	(	std::vector< float > &	bmin,
		std::vector< float > &	bmax
	)		const

Get bounding box in N-dimension mode (new in anatomist 4.6)

◆ changeReferential

void AWindow3D::changeReferential ( )

slot

◆ changeSlice

void AWindow3D::changeSlice ( int )

slot

◆ changeTime

void AWindow3D::changeTime ( int )

slot

◆ changeTimeSliders

void AWindow3D::changeTimeSliders	(	int	,
		int
	)

slot

◆ clipDistance()

float AWindow3D::clipDistance ( ) const

◆ clipMode()

ClipMode AWindow3D::clipMode ( ) const

◆ computeNearestVertexFromPolygonPoint()

int AWindow3D::computeNearestVertexFromPolygonPoint	(	const anatomist::ViewState &	vs,
		int	poly,
		const anatomist::GLComponent *	glc,
		const Point3df &	position,
		Point3df &	positionNearestVertex
	)

print all infos about vertex picked on a polygon selected

◆ constraintEditorIsActive()

bool AWindow3D::constraintEditorIsActive ( )

◆ cullingEnabled()

bool AWindow3D::cullingEnabled ( ) const

◆ cursorGLL()

anatomist::GLPrimitives AWindow3D::cursorGLL ( ) const

protected

◆ displayClickPoint()

virtual void AWindow3D::displayClickPoint ( )

virtual

Reimplemented from anatomist::AWindow.

◆ displayClickPos()

void AWindow3D::displayClickPos ( Point3df clickPos )

protected

Display the click point.

◆ displayInfoAtClickPosition()

void AWindow3D::displayInfoAtClickPosition	(	int	x,
		int	y
	)

◆ enablePerspective()

void AWindow3D::enablePerspective ( bool )

◆ enableToolTips

void AWindow3D::enableToolTips ( bool )

slot

◆ enableTransparentZ()

void AWindow3D::enableTransparentZ ( bool )

◆ flatShading()

bool AWindow3D::flatShading ( ) const

◆ focusView

void AWindow3D::focusView ( )

slot

◆ fog()

bool AWindow3D::fog ( ) const

◆ freeResize

void AWindow3D::freeResize ( )

protectedslot

◆ getConstraintList()

std::vector<std::string> AWindow3D::getConstraintList ( )

◆ getConstraintTexture()

anatomist::AObject* AWindow3D::getConstraintTexture ( )

◆ getConstraintType()

int AWindow3D::getConstraintType ( ) const

◆ getInfos3DFromClickPoint()

void AWindow3D::getInfos3DFromClickPoint	(	int	x,
		int	y,
		Point3df &	position,
		int *	poly,
		anatomist::AObject *	objselect,
		std::string &	objtype,
		std::vector< float > &	texvalue,
		std::string &	textype,
		Point3df &	positionNearestVertex,
		int *	indexNearestVertex
	)

◆ getSliceSlider()

QSlider* AWindow3D::getSliceSlider ( void ) const

◆ getSliceSliderMaxPosition

int AWindow3D::getSliceSliderMaxPosition ( )

slot

◆ getSliceSliderPosition

int AWindow3D::getSliceSliderPosition ( )

slot

◆ getTimeSliderMaxPosition

int AWindow3D::getTimeSliderMaxPosition ( )

slot

◆ getTimeSliderPosition

int AWindow3D::getTimeSliderPosition ( )

slot

◆ getZoom

float AWindow3D::getZoom ( ) const

slot

◆ hasBoundingFrame()

bool AWindow3D::hasBoundingFrame ( ) const

◆ hasOrientationCube()

bool AWindow3D::hasOrientationCube ( ) const

◆ inAutoFusion()

bool AWindow3D::inAutoFusion ( const anatomist::AObject * obj ) const

protected

◆ isViewOblique()

bool AWindow3D::isViewOblique ( ) const

◆ leftEyeWindow()

AWindow3D* AWindow3D::leftEyeWindow ( )

◆ light()

anatomist::Light* AWindow3D::light ( )

◆ lightView

void AWindow3D::lightView ( )

slot

◆ lightWinDestroyed

void AWindow3D::lightWinDestroyed ( )

slot

◆ linkedCursorOnSliderChange()

bool AWindow3D::linkedCursorOnSliderChange ( ) const

◆ loadConstraintData()

void AWindow3D::loadConstraintData	(	const std::vector< std::string > &	constraintList,
		int	constraintType,
		anatomist::AObject *	texConstraint
	)

◆ mute3D

void AWindow3D::mute3D ( )

slot

◆ muteAxial

void AWindow3D::muteAxial ( )

slot

◆ muteCoronal

void AWindow3D::muteCoronal ( )

slot

◆ muteOblique

void AWindow3D::muteOblique ( )

slot

◆ muteSagittal

void AWindow3D::muteSagittal ( )

slot

◆ objectAtCursorPosition()

virtual anatomist::AObject* AWindow3D::objectAtCursorPosition	(	int	x,
		int	y
	)

virtual

pick the object at the cursor 2D position

Reimplemented in anatomist::RefWindow.

◆ objectsAtCursorPosition()

virtual std::list<anatomist::AObject> AWindow3D::objectsAtCursorPosition	(	int	x,
		int	y,
		int	tolerenceRadius
	)

virtual

pick several objects at the cursor 2D position

◆ openStereoView

void AWindow3D::openStereoView ( )

slot

◆ perspectiveEnabled()

bool AWindow3D::perspectiveEnabled ( ) const

◆ pointsOfView

void AWindow3D::pointsOfView ( )

slot

◆ polish

virtual void AWindow3D::polish ( )

virtualslot

◆ polygonAtCursorPosition()

virtual int AWindow3D::polygonAtCursorPosition	(	int	x,
		int	y,
		const anatomist::AObject *	obj
	)

virtual

pick a polygon on a selected object at the cursor 2D position

◆ polygonsSortingDirection()

bool AWindow3D::polygonsSortingDirection ( ) const

returns false for back-to-front, true for front-to-back

◆ polygonsSortingEnabled()

bool AWindow3D::polygonsSortingEnabled ( ) const

◆ positionFromCursor()

virtual bool AWindow3D::positionFromCursor	(	int	x,
		int	y,
		Point3df &	pos
	)

virtual

Translates mouse position to Anatomist geometry position.

Returns: false if posision cannot be computed (out of viewport)

Reimplemented from anatomist::AWindow.

◆ povWinDestroyed

void AWindow3D::povWinDestroyed ( )

slot

◆ printPositionAndValue()

void AWindow3D::printPositionAndValue ( )

◆ processRenderingOrder()

std::list<anatomist::AObject *>::iterator AWindow3D::processRenderingOrder ( std::list< anatomist::AObject *> & opaque ) const

calculates the objects rendering order, according to various constraints (opaque/transparent, order at register time, before/after constraints).

Returns: the iterator on the first transparent object (or end if none is)

◆ Refresh

virtual void AWindow3D::Refresh ( )

virtualslot

◆ refreshed

void AWindow3D::refreshed ( )

signal

◆ refreshLightView

void AWindow3D::refreshLightView ( )

slot

Only redraws existing objects (in most cases, just calls existing OpenGL lists, except for observer-dependent objects)

◆ refreshLightViewNow

void AWindow3D::refreshLightViewNow ( )

slot

◆ refreshNow

virtual void AWindow3D::refreshNow ( )

virtualslot

Refresh the window (redraw the contained objects).

◆ refreshTemp

void AWindow3D::refreshTemp ( )

slot

Redraws temporary objects only.

◆ refreshTempNow

void AWindow3D::refreshTempNow ( )

slot

◆ registerObject()

virtual void AWindow3D::registerObject	(	anatomist::AObject *	obj,
		bool	temporaryObject = `false`,
		int	position = `-1`
	)

virtual

Reimplemented from ControlledWindow.

◆ registerObjectModifier()

void AWindow3D::registerObjectModifier ( ObjectModifier * mod )

protected

Allows changing display lists from normal objects DLists.

◆ removeFromAutoFusion2D()

void AWindow3D::removeFromAutoFusion2D ( anatomist::AObject * obj )

protected

delete or modify the auto Fusion2D object when removing an object

◆ renderAfter()

void AWindow3D::renderAfter	(	anatomist::AObject *	obj,
		anatomist::AObject *	afterthis
	)

adds a rendering order constraint: obj will be rendered immediately after afterthis.

If afterthis is null, then constraints for obj are cleared.

◆ renderBefore()

void AWindow3D::renderBefore	(	anatomist::AObject *	obj,
		anatomist::AObject *	beforethis
	)

adds a rendering order constraint: obj will be rendered immediately before beforethis.

If beforethis is null, then constraints for obj are cleared.

◆ renderingMode()

RenderingMode AWindow3D::renderingMode ( ) const

◆ renderSelectionBuffer()

void AWindow3D::renderSelectionBuffer	(	anatomist::ViewState::glSelectRenderMode	mode,
		const anatomist::AObject *	selectedobject = `0`
	)

◆ resizeEvent

void AWindow3D::resizeEvent ( QResizeEvent * )

slot

◆ resizeView() [1/2]

void AWindow3D::resizeView	(	int	w,
		int	h
	)

Tries to resize the viewing area to given size.

◆ resizeView [2/2]

void AWindow3D::resizeView ( )

slot

◆ rightEyeWindow()

AWindow3D* AWindow3D::rightEyeWindow ( )

◆ saveSnapshot

void AWindow3D::saveSnapshot ( )

protectedslot

◆ saveSnapshotWithCustomSize

void AWindow3D::saveSnapshotWithCustomSize ( )

protectedslot

◆ setActiveConstraintEditor()

void AWindow3D::setActiveConstraintEditor ( bool b )

◆ setAutoRotationCenter

void AWindow3D::setAutoRotationCenter ( )

slot

◆ setBoundingFrame()

void AWindow3D::setBoundingFrame ( bool state )

Frame handling methods.

◆ setClipDistance()

void AWindow3D::setClipDistance ( float d )

◆ setClipMode()

void AWindow3D::setClipMode ( ClipMode m )

◆ setCulling()

void AWindow3D::setCulling ( bool )

◆ setFlatShading()

void AWindow3D::setFlatShading ( bool )

◆ setFog()

void AWindow3D::setFog ( bool )

◆ setGLWidgetCreator()

static void AWindow3D::setGLWidgetCreator ( GLWidgetCreator )

static

hook to create inherited QAGLWidgets (Vtk-enabled for instance)

◆ setLeftEyeWindow()

void AWindow3D::setLeftEyeWindow ( AWindow3D * )

◆ setLight()

void AWindow3D::setLight ( const anatomist::Light & light )

◆ setLinkedCursorOnSliderChange()

void AWindow3D::setLinkedCursorOnSliderChange ( bool x )

◆ setLinkedCursorPos

void AWindow3D::setLinkedCursorPos ( )

slot

◆ setOrientationCube()

void AWindow3D::setOrientationCube ( bool state )

Compass handling methods.

◆ setPolygonsSortingDirection()

void AWindow3D::setPolygonsSortingDirection ( bool dir )

◆ setPolygonsSortingEnabled()

void AWindow3D::setPolygonsSortingEnabled ( bool )

◆ setPosition() [1/2]

virtual void AWindow3D::setPosition	(	const Point3df &	position,
		const anatomist::Referential *	refdep
	)

virtual

Set position of cursor.

Reimplemented from anatomist::AWindow.

◆ setPosition() [2/2]

virtual void AWindow3D::setPosition	(	const std::vector< float > &	position,
		const anatomist::Referential *	orgref
	)

virtual

Reimplemented from anatomist::AWindow.

◆ setReferential()

virtual void AWindow3D::setReferential ( anatomist::Referential * ref )

virtual

Reimplemented from anatomist::AWindow.

◆ setRenderingMode()

void AWindow3D::setRenderingMode ( RenderingMode mode )

Rendering mode (normal, wireframe, fast)

◆ setRightEyeWindow()

void AWindow3D::setRightEyeWindow ( AWindow3D * )

◆ setSliceOrientation()

void AWindow3D::setSliceOrientation ( const Point3df & normal )

◆ setSliceQuaternion()

void AWindow3D::setSliceQuaternion ( const aims::Quaternion & q )

◆ setSliceSliderPosition

void AWindow3D::setSliceSliderPosition ( int position )

slot

◆ setSmoothing()

void AWindow3D::setSmoothing ( bool )

◆ setTimeSliderPosition

void AWindow3D::setTimeSliderPosition ( int position )

slot

◆ setupSliceSlider() [1/2]

void AWindow3D::setupSliceSlider	(	float	mins,
		float	maxs
	)

protected

◆ setupSliceSlider() [2/2]

void AWindow3D::setupSliceSlider ( )

protected

◆ setupTimeSlider()

void AWindow3D::setupTimeSlider	(	const std::vector< float > &	bmin,
		const std::vector< float > &	bmax
	)

protected

◆ setupWindowGeometry()

static anatomist::Geometry AWindow3D::setupWindowGeometry	(	const std::list< carto::shared_ptr< anatomist::AObject > > &	objects,
		const aims::Quaternion &	slicequat,
		const anatomist::Referential *	wref = `0`,
		QGLWidget *	glw = `0`,
		bool	with3d = `false`
	)

static

◆ setViewPoint()

void AWindow3D::setViewPoint	(	float *	quaternion,
		const float	zoom
	)

set the view of the scene

◆ setViewType()

virtual void AWindow3D::setViewType ( ViewType t )

virtual

Mute into a new view type (Axial, Sagittal, Coronal or Oblique)

◆ setVisibleSurfpaint()

void AWindow3D::setVisibleSurfpaint ( bool b )

◆ showReferential()

void AWindow3D::showReferential ( )

protectedvirtual

Reimplemented from anatomist::AWindow.

◆ showStatusBar()

virtual void AWindow3D::showStatusBar ( int state = 2 )

virtual

◆ showToolBars()

virtual void AWindow3D::showToolBars ( int state = 2 )

virtual

Shows or hides all tools (menu, toolbars) around the main view area.

0: hide, 1: show, 2: toggle

Reimplemented from QAWindow.

◆ sliceQuaternion()

const aims::Quaternion& AWindow3D::sliceQuaternion ( ) const

◆ smoothing()

bool AWindow3D::smoothing ( ) const

◆ snapshotImage

QImage AWindow3D::snapshotImage	(	int	width = `0`,
		int	height = `0`,
		int	bufmode = `0`
	)

slot

Get a snapshot of the window, after a refresh if needed.

mode: 0: RGB, 2: alpha, 4: RGBA, 8: depth, 16: luminance

◆ sortPolygons()

virtual void AWindow3D::sortPolygons ( bool force = false )

virtual

◆ subtype()

virtual SubType AWindow3D::subtype ( ) const

virtual

Reimplemented from anatomist::AWindow.

◆ surfpaintIsVisible()

bool AWindow3D::surfpaintIsVisible ( )

◆ switchToolbox

void AWindow3D::switchToolbox ( )

slot

◆ syncViews

void AWindow3D::syncViews ( bool keepextrema = false )

slot

◆ toggleStatusBarVisibility

void AWindow3D::toggleStatusBarVisibility ( )

slot

◆ tools

void AWindow3D::tools ( )

slot

◆ toolsWinDestroyed

void AWindow3D::toolsWinDestroyed ( )

slot

◆ toopTipsEnabled

bool AWindow3D::toopTipsEnabled ( ) const

slot

◆ transparentZEnabled()

bool AWindow3D::transparentZEnabled ( ) const

◆ type()

virtual Type AWindow3D::type ( ) const

virtual

Get the window type (2D, 3D or control)

Implements anatomist::AWindow.

◆ typeCount() [1/2]

virtual const std::set<unsigned>& AWindow3D::typeCount ( ) const

virtual

Reimplemented from anatomist::AWindow.

◆ typeCount() [2/2]

virtual std::set<unsigned>& AWindow3D::typeCount ( )

virtual

Reimplemented from anatomist::AWindow.

◆ unregisterObject()

virtual void AWindow3D::unregisterObject ( anatomist::AObject * obj )

virtual

Reimplemented from ControlledWindow.

Reimplemented in anatomist::RefWindow.

◆ unregisterObjectModifier()

void AWindow3D::unregisterObjectModifier ( ObjectModifier * mod )

protected

◆ update()

virtual void AWindow3D::update	(	const Observable *	obs,
		void *
	)

virtual

◆ updateLeftRightAnnotations()

void AWindow3D::updateLeftRightAnnotations ( )

protected

◆ updateObject()

void AWindow3D::updateObject	(	anatomist::AObject *	obj,
		anatomist::PrimList *	pl = `0`,
		anatomist::ViewState::glSelectRenderMode	selectmode = `anatomist::ViewState::glSELECTRENDER_NONE`
	)

protected

◆ updateObject2D()

void AWindow3D::updateObject2D	(	anatomist::AObject *	obj,
		anatomist::PrimList *	pl = `0`,
		anatomist::ViewState::glSelectRenderMode	selectmode = `anatomist::ViewState::glSELECTRENDER_NONE`
	)

protected

◆ updateObject3D()

void AWindow3D::updateObject3D	(	anatomist::AObject *	obj,
		anatomist::PrimList *	pl = `0`,
		anatomist::ViewState::glSelectRenderMode	selectmode = `anatomist::ViewState::glSELECTRENDER_NONE`
	)

protected

◆ updateSliceSlider()

int AWindow3D::updateSliceSlider ( )

protected

◆ updateTimeSliders()

void AWindow3D::updateTimeSliders ( )

protected

◆ updateViewTypeToolBar()

void AWindow3D::updateViewTypeToolBar ( )

protected

◆ updateWindowGeometry()

virtual void AWindow3D::updateWindowGeometry ( )

virtual

adapts geometry to the current contents and referential

Reimplemented from anatomist::AWindow.

◆ view() [1/2]

virtual anatomist::View* AWindow3D::view ( )

virtual

Implements ControlledWindow.

◆ view() [2/2]

virtual const anatomist::View* AWindow3D::view ( ) const

virtual

Implements ControlledWindow.

◆ viewType()

ViewType AWindow3D::viewType ( ) const

Friends And Related Function Documentation

◆ anatomist::internal::AGraphicsView

friend class anatomist::internal::AGraphicsView

friend

Definition at line 329 of file window3D.h.

Member Data Documentation

◆ _baseTitle

std::string AWindow3D::_baseTitle

staticprotected

Definition at line 375 of file window3D.h.

◆ _count3d

std::set<unsigned> AWindow3D::_count3d

staticprotected

3D windows static counter

Definition at line 374 of file window3D.h.

The documentation for this class was generated from the following file:

anatomist/window3D/window3D.h

Classes

Public Types

Public Slots

Signals

Public Member Functions

Static Public Member Functions

Protected Slots

Protected Member Functions

Static Protected Attributes

Friends

Additional Inherited Members

Detailed Description

Member Typedef Documentation

◆ GLWidgetCreator

Member Enumeration Documentation

◆ ClipMode

◆ RenderingMode

◆ ViewType

Constructor & Destructor Documentation

◆ AWindow3D()

◆ ~AWindow3D()

Member Function Documentation

◆ askZoom

◆ autoFusion2D()

◆ baseTitle()

◆ boundingBox()

◆ changeReferential

◆ changeSlice

◆ changeTime

◆ changeTimeSliders

◆ clipDistance()

◆ clipMode()

◆ computeNearestVertexFromPolygonPoint()

◆ constraintEditorIsActive()

◆ cullingEnabled()

◆ cursorGLL()

◆ displayClickPoint()

◆ displayClickPos()

◆ displayInfoAtClickPosition()

◆ enablePerspective()

◆ enableToolTips

◆ enableTransparentZ()

◆ flatShading()

◆ focusView

◆ fog()

◆ freeResize

◆ getConstraintList()

◆ getConstraintTexture()

◆ getConstraintType()

◆ getInfos3DFromClickPoint()

◆ getSliceSlider()

◆ getSliceSliderMaxPosition

◆ getSliceSliderPosition

◆ getTimeSliderMaxPosition

◆ getTimeSliderPosition

◆ getZoom

◆ hasBoundingFrame()

◆ hasOrientationCube()

◆ inAutoFusion()

◆ isViewOblique()

◆ leftEyeWindow()

◆ light()

◆ lightView

◆ lightWinDestroyed

◆ linkedCursorOnSliderChange()

◆ loadConstraintData()

◆ mute3D

◆ muteAxial

◆ muteCoronal

◆ muteOblique

◆ muteSagittal

◆ objectAtCursorPosition()

◆ objectsAtCursorPosition()

◆ openStereoView

◆ perspectiveEnabled()

◆ pointsOfView

◆ polish

◆ polygonAtCursorPosition()

◆ polygonsSortingDirection()

◆ polygonsSortingEnabled()
