Anatomist Window using Qt and controler system, providing a toolbar for controls. More...

#include <anatomist/window/controlledWindow.h>

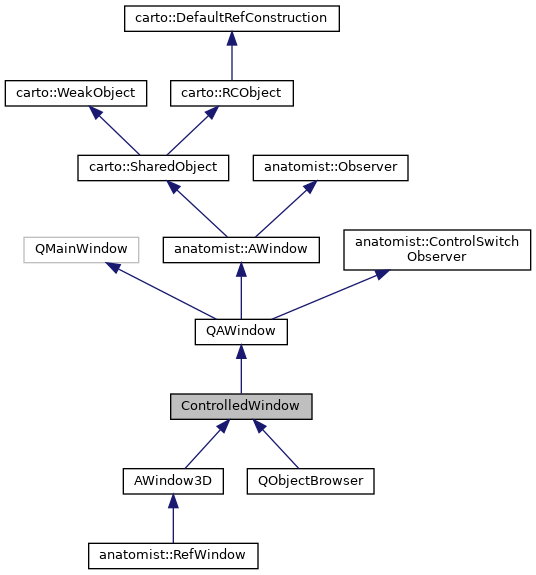

Inheritance diagram for ControlledWindow:

[legend]

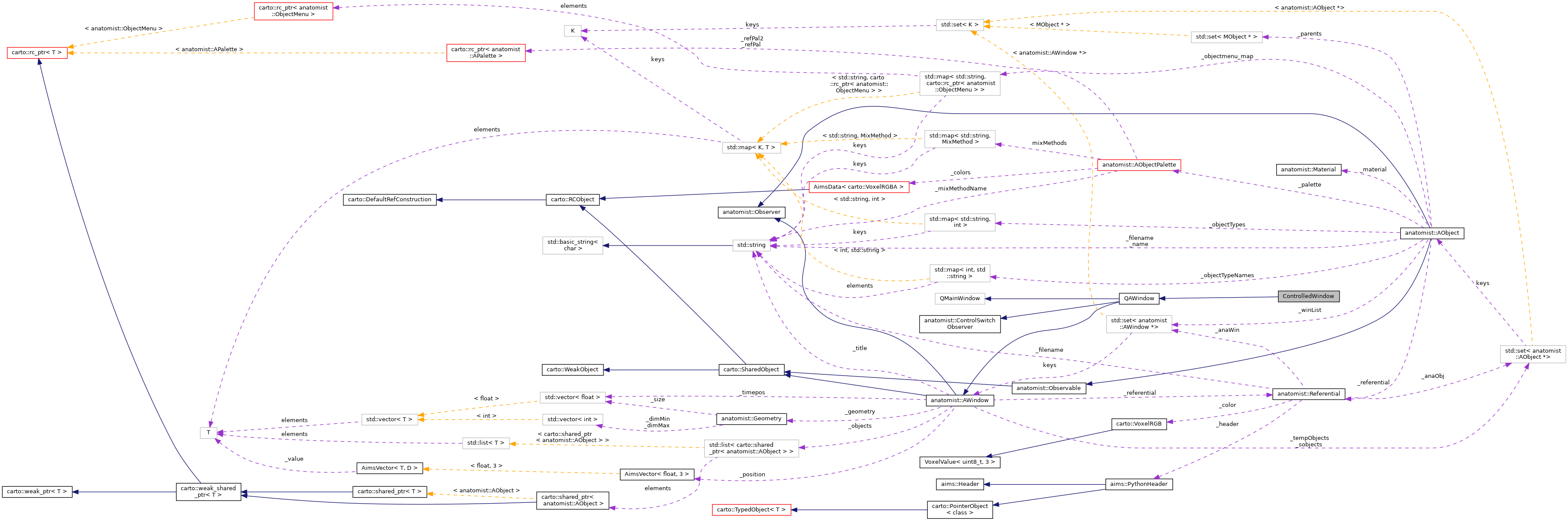

Collaboration diagram for ControlledWindow:

[legend]

Public Slots
virtual void	activeControlChanged (QAction *)

virtual void	updateControls ()

Public Slots inherited from QAWindow
virtual void	refreshNow ()
	Real drawing function, replacing AWindow::Refresh in subclasses of QAWindow - Don't forget to call QAWindow::refreshNow from overloaded functions. More...

virtual bool	needsRedraw () const

virtual void	detach ()
	detach view from a block More...

virtual void	toggleToolBars ()

virtual void	toggleFullScreen ()

void	triggeredRefresh ()
	calls refreshNow() and cleanup More...

Public Member Functions
	ControlledWindow (QWidget parent=0, const char name=0, carto::Object options=carto::none(), Qt::WindowFlags f=0)

virtual	~ControlledWindow ()

virtual void	registerObject (anatomist::AObject *object, bool temporaryObject=false, int position=-1)

virtual void	unregisterObject (anatomist::AObject *object)

virtual void	updateAvailableControls ()

virtual void	updateActivableControls ()

virtual void	updateActions ()

virtual void	updateActiveControl ()

virtual anatomist::View *	view ()=0

virtual const anatomist::View *	view () const =0

std::map< std::string, QAction * >	getControlButtonObjects (void)

Public Member Functions inherited from QAWindow
	QAWindow (QWidget parent=0, const char name=0, carto::Object params=carto::none(), Qt::WindowFlags f=0)

virtual	~QAWindow ()

virtual void	setGeometry (int x, int y, unsigned w, unsigned h)

virtual void	geometry (int x, int y, unsigned w, unsigned h)
	Get position and dimensions of the window. More...

virtual void	show ()

virtual void	hide ()

virtual void	iconify ()

virtual void	unIconify ()

virtual bool	close ()

virtual void	showToolBars (int state=2)
	Shows or hides all tools (menu, toolbars) around the main view area. More...

void	setFullScreen (int state=2)

bool	isFullScreen () const

virtual void	setTitle (const std::string &name)

virtual void	enableDetachMenu (bool x)

void	Refresh ()
	In QAWindows, Refresh() doesn't redraw right now. More...

virtual QToolBar *	addToolBar (const QString &title, const QString &name)

virtual void	addToolBar (QToolBar *, const QString &name)

virtual void	addToolBar (Qt::ToolBarArea area, QToolBar *toolbar, const QString &name)

virtual void	removeToolBar (QToolBar *toolbar)

virtual QToolBar *	removeToolBar (const QString &name)

QToolBar *	toolBar (const QString &name)

void	setDetachMenuAction (QAction *)

Public Member Functions inherited from anatomist::AWindow
virtual	~AWindow ()
	Unregisters from the application and other objects. More...

virtual std::string	Title () const

void	setId (int id)
	Set the window identifier. More...

void	SetRefreshFlag ()
	Set the refresh flag on. More...

void	ResetRefreshFlag ()
	Set the refresh flag off. More...

bool	lookupChanged () const

void	setLookupChanged (bool flg=true)

int	id () const
	Get the window identifier. More...

virtual Type	type () const =0
	Get the window type (2D, 3D or control) More...

virtual SubType	subtype () const

bool	RefreshFlag () const
	Get the refresh flag status. More...

std::set< AObject * >	Objects () const
	Get the objects. More...

bool	hasObject (AObject *obj) const

virtual Point3df	getPosition () const
	Get position of cursor. More...

float	getTime () const
	Get time position of cursor. More...

virtual std::vector< float >	getFullPosition () const

virtual void	setPosition (const Point3df &position, const Referential *refdep)
	Set position of cursor. More...

virtual void	setPosition (const std::vector< float > &position, const Referential *refdep=0)

virtual void	setTime (float time)
	Set time position of cursor. More...

Referential *	getReferential () const

virtual void	setReferential (Referential *ref)

Geometry *	windowGeometry () const

void	setWindowGeometry (Geometry *geom)

virtual void	updateWindowGeometry ()
	adapts geometry to the current contents and referential More...

int	Group () const

void	setGroup (int group)

void	setHasCursor (int hasCursor)

bool	hasCursor () const
	takes both the global and own flags into account More...

int	hasSelfCursor () const
	returns the own flag of the window (see hasGlobalCursor) (tri-state) More...

virtual void	displayClickPoint ()

virtual bool	positionFromCursor (int x, int y, Point3df &pos)
	Translates mouse position to Anatomist geometry position. More...

virtual AObject *	objectAt (const std::vector< float > &pos)

virtual void	selectObject (const std::vector< float > &pos, int modifier)
	Selects (highlights) object at a given 4D space position. More...

virtual void	button3clicked (int x, int y)
	handles button3 click (menu) More...

virtual void	findObjectsAt (const std::vector< float > &pos, std::set< AObject > &shown, std::set< AObject > &hidden)
	finds objects at given position (internal) More...

virtual void	update (const Observable observable, void arg)
	This method is called whenever the observed object is changed. More...

virtual void	recordImages ()

virtual RecordingState	recordingState () const

virtual void	startRecord ()

virtual void	startRecord (const std::string &filename)

virtual void	stopRecord ()

virtual const std::set< unsigned > &	typeCount () const

virtual std::set< unsigned > &	typeCount ()

virtual const std::string &	baseTitle () const

virtual bool	needsRedraw () const
	returns true if a refresh has been triggered and not performed yet (in subclasses: AWindow always returns false) More...

bool	isTemporary (AObject *o) const

const std::set< AObject * > &	temporaryObjects () const

void	displayTalairach ()
	Affiche les coordonnees de Talairach qui correspondent a la position du curseur lie (window 2D) More...

virtual bool	toolBarsVisible () const

virtual void	showReferential ()

virtual void	setupWindow ()
	Sets correct size and lookup of the window. More...

Public Member Functions inherited from carto::SharedObject
	SharedObject ()

	SharedObject (const SharedObject &x)

virtual	~SharedObject ()

SharedObject &	operator= (const SharedObject &)

bool	testDeletable ()

bool	tryDelete ()

Public Member Functions inherited from carto::WeakObject
void	attachWeakPtr (weak_ptr< T > &) const

void	detachWeakPtr (weak_ptr< T > &) const

void	attachWeakPtr (weak_shared_ptr< T > &) const

void	detachWeakPtr (weak_shared_ptr< T > &) const

virtual	~WeakObject ()

Public Member Functions inherited from carto::RCObject
	RCObject ()

	RCObject (const RCObject &)

RCObject &	operator= (const RCObject &)

virtual	~RCObject ()

Public Member Functions inherited from anatomist::Observer
virtual	~Observer ()

Public Member Functions inherited from anatomist::ControlSwitchObserver
	ControlSwitchObserver ()

virtual	~ControlSwitchObserver ()

Additional Inherited Members
Public Types inherited from anatomist::AWindow
enum	Type { CTRL_WINDOW = 100, WINDOW_2D = 101, WINDOW_3D = 102 }

enum	SubType { AXIAL_WINDOW = 200, SAGITTAL_WINDOW = 201, CORONAL_WINDOW = 202, OBLIQUE_WINDOW = 203, OTHER = 299 }

enum	RecordingState { OFF, ON, DISABLED }

Public Types inherited from carto::RCObject
typedef int	RefCounterType

Static Public Member Functions inherited from anatomist::AWindow
static void	setLeftRightDisplay (bool state)

static int	leftRightDisplay ()

static void	setLeftRightDisplaySize (int size)

static int	leftRightDisplaySize ()

static void	setDisplayedAnnotations (const std::vector< std::string > &annotation_list)

static std::vector< std::string >	displayedAnnotations ()

static void	setGlobalHasCursor (bool hasCursor)

static int	hasGlobalCursor ()

static void	setCursorSize (int cursorSize)

static int	cursorSize ()

static void	setUseDefaultCursorColor (bool state)
	Set the default color cursor flag. More...

static int	useDefaultCursorColor ()
	Give the default color cursor flag. More...

static void	setCursorColor (const AimsRGB &cursCol)
	Set the color cursor. More...

static AimsRGB	cursorColor ()
	Give the color cursor. More...

static float	selectTolerence ()
	Selection tolerence distance. More...

static void	setSelectTolerence (float tol)
	Set the selection tolerence distance. More...

static void	recordCbk (void *clientdata)

Protected Member Functions inherited from QAWindow
virtual void	createTitle ()
	Creates a new title for the window. More...

virtual void	dragEnterEvent (QDragEnterEvent *)

virtual void	dragMoveEvent (QDragMoveEvent *)

virtual void	dropEvent (QDropEvent *)

virtual void	mouseMoveEvent (QMouseEvent *e)

virtual void	closeEvent (QCloseEvent *event)

Protected Member Functions inherited from anatomist::AWindow
	AWindow ()
	AWindow constructor registers itself in the application. More...

void	setWindowTitle ()
	Set the title of the window. More...

virtual void	unregisterObservable (Observable *obs)
	Called when an observable is destroyed, only called by Observable: don't use this function directly. More...

void	manageAutoReferential ()
	automatically set the contained objects referential to the window if it has not been set manually, and if all objetcs share the same referential. More...

Protected Member Functions inherited from carto::SharedObject
void	disableRefCount ()

Protected Member Functions inherited from carto::WeakObject
	WeakObject ()

	WeakObject (const WeakObject &)

WeakObject &	operator= (const WeakObject &)

Protected Member Functions inherited from anatomist::Observer
virtual void	cleanupObserver ()
	call this function from inherited classes destructors. More...

virtual void	registerObservable (Observable *)
	only called by Observable: don't use this function directly More...

const std::set< Observable * > &	observed () const

Protected Attributes inherited from anatomist::AWindow
int	_id
	Window identificator. More...

bool	_refresh
	Should the window be refreshed? More...

bool	_lookupChanged
	Lookup has changed (title or geometry) More...

std::list< carto::shared_ptr< AObject > >	_objects
	List of the objects contained in the window. More...

std::set< AObject * >	_sobjects
	Same but as a set (for fast search) More...

std::set< AObject * >	_tempObjects

std::vector< float >	_timepos
	Cursor time + next dimensions. More...

Referential *	_referential
	Referentiel. More...

Geometry *	_geometry
	Geometry. More...

std::string	_title
	Title of the window. More...

int	_instNumber
	Number of instance of the window class. More...

int	_group
	Group number, for linked windows. More...

Point3df	_position
	Click position. More...

Detailed Description

Anatomist Window using Qt and controler system, providing a toolbar for controls.

Definition at line 45 of file controlledWindow.h.

Constructor & Destructor Documentation

◆ ControlledWindow()

ControlledWindow::ControlledWindow	(	QWidget *	parent = `0`,
		const char *	name = `0`,
		carto::Object	options = `carto::none()`,
		Qt::WindowFlags	f = `0`
	)

◆ ~ControlledWindow()

virtual ControlledWindow::~ControlledWindow ( )

virtual

Member Function Documentation

◆ activeControlChanged

virtual void ControlledWindow::activeControlChanged ( QAction * )

virtualslot

◆ getControlButtonObjects()

std::map<std::string, QAction *> ControlledWindow::getControlButtonObjects ( void )

◆ registerObject()

virtual void ControlledWindow::registerObject	(	anatomist::AObject *	object,
		bool	temporaryObject = `false`,
		int	position = `-1`
	)

virtual

Reimplemented from anatomist::AWindow.

Reimplemented in AWindow3D, and QObjectBrowser.

◆ unregisterObject()

virtual void ControlledWindow::unregisterObject ( anatomist::AObject * object )

virtual

Reimplemented from anatomist::AWindow.

Reimplemented in AWindow3D, QObjectBrowser, and anatomist::RefWindow.

◆ updateActions()

virtual void ControlledWindow::updateActions ( )

virtual

Reimplemented from anatomist::ControlSwitchObserver.

◆ updateActivableControls()

virtual void ControlledWindow::updateActivableControls ( )

virtual

Reimplemented from anatomist::ControlSwitchObserver.

◆ updateActiveControl()

virtual void ControlledWindow::updateActiveControl ( )

virtual

Reimplemented from anatomist::ControlSwitchObserver.

◆ updateAvailableControls()

virtual void ControlledWindow::updateAvailableControls ( )

virtual

Reimplemented from anatomist::ControlSwitchObserver.

◆ updateControls

virtual void ControlledWindow::updateControls ( )

virtualslot

◆ view() [1/2]

virtual anatomist::View* ControlledWindow::view ( )

pure virtual

Implemented in AWindow3D, and QObjectBrowser.

◆ view() [2/2]

virtual const anatomist::View* ControlledWindow::view ( ) const

pure virtual

Implemented in AWindow3D, and QObjectBrowser.

The documentation for this class was generated from the following file:

anatomist/window/controlledWindow.h

Public Slots

Public Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ ControlledWindow()

◆ ~ControlledWindow()

Member Function Documentation

◆ activeControlChanged

◆ getControlButtonObjects()

◆ registerObject()

◆ unregisterObject()

◆ updateActions()

◆ updateActivableControls()

◆ updateActiveControl()

◆ updateAvailableControls()

◆ updateControls

◆ view() [1/2]

◆ view() [2/2]
