Sliceable objects can draw themselves in a 2D texture. More...

#include <anatomist/object/sliceable.h>

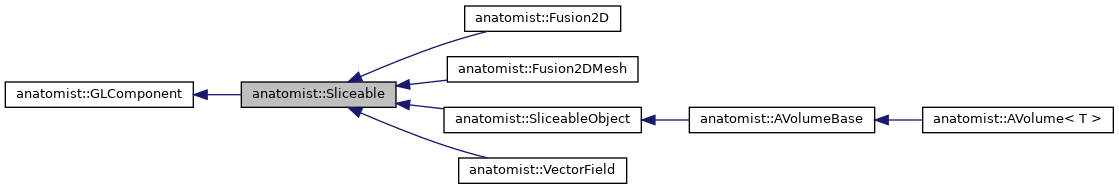

Inheritance diagram for anatomist::Sliceable:

[legend]

Collaboration diagram for anatomist::Sliceable:

Public Member Functions
	Sliceable ()

virtual	~Sliceable ()

virtual const Sliceable *	sliceableAPI () const

virtual Sliceable *	sliceableAPI ()

virtual unsigned	glNumVertex (const ViewState &) const

virtual const GLfloat *	glVertexArray (const ViewState &) const

virtual const GLfloat *	glNormalArray (const ViewState &state) const
	normals array (optional), default=0 (no normals, flat shaded faces) More...

virtual unsigned	glPolygonSize (const ViewState &) const
	number of vertices per polygon (default = 3: triangles) More...

virtual unsigned	glNumPolygon (const ViewState &) const

virtual const GLuint *	glPolygonArray (const ViewState &) const

virtual unsigned	glDimTex (const ViewState &, unsigned tex=0) const
	texture dimension (1, 2 [or 3]) More...

virtual unsigned	glTexCoordSize (const ViewState &, unsigned tex=0) const
	texture array size (must be >= numVertex to work), defalut=0 More...

virtual const GLfloat *	glTexCoordArray (const ViewState &, unsigned tex=0) const

virtual carto::VolumeRef< AimsRGBA >	glBuildTexImage (const ViewState &state, unsigned tex, int dimx=-1, int dimy=-1, bool useTexScale=true) const
	If you make non-standard textures (ie not from a palette), overload this function. More...

virtual bool	glMakeTexImage (const ViewState &state, const GLTexture &gltex, unsigned tex) const
	If you make non-standard textures (ie not from a palette), overload this function to fill `gltex`. More...

virtual bool	update2DTexture (AImage &, const Point3df &posbase, const SliceViewState &, unsigned tex=0) const
	this function must be overloaded to actually fill the slice image More...

virtual carto::VolumeRef< AimsRGBA >	rgbaVolume (const SliceViewState *=0, int tex=0) const
	fills a resampled RGBA volume More...

virtual void	rgbaVolume (carto::Volume< AimsRGBA > &, const SliceViewState *=0, int tex=0) const
	same as the other rgbaVolume() but fills an already allocated volume More...

virtual std::vector< float >	glVoxelSize () const

virtual std::vector< float >	glMin2D () const =0

virtual std::vector< float >	glMax2D () const =0

virtual bool	glAllowedTexRGBInterpolation (unsigned tex=0) const

virtual const Referential *	getReferential () const =0

virtual std::string	viewStateID (glPart part, const ViewState &) const
	Makes a unique ID from a viewstate. More...

Public Member Functions inherited from anatomist::GLComponent
	GLComponent ()

virtual	~GLComponent ()

void	clearLists ()

virtual const GLComponent *	glAPI () const

virtual GLComponent *	glAPI ()

virtual void	glClearHasChangedFlags () const

virtual void	glSetChanged (glPart, bool=true) const

virtual bool	glHasChanged (glPart) const

void	setShader (const Shader &shader)

void	removeShader ()

void	setupShader ()
	create, setup, or remove the shader More...

const Shader *	getShader () const

Shader *	getShader ()

virtual void	setShaderParameters (const Shader &shader, const ViewState &state) const

virtual const Material *	glMaterial () const

virtual const AObjectPalette *	glPalette (unsigned tex=0) const

virtual unsigned long	glMaxNumDisplayedPolygons () const
	Limit to the number of displayed polygons (default: 0, unlimited or ) global default value) More...

virtual void	glSetMaxNumDisplayedPolygons (unsigned long n)

virtual void	glSetTexImageChanged (bool x=true, unsigned tex=0) const

virtual void	glSetTexEnvChanged (bool x=true, unsigned tex=0) const

virtual unsigned	glNumTextures () const

virtual unsigned	glNumTextures (const ViewState &) const

virtual glTextureMode	glTexMode (unsigned tex=0) const

virtual void	glSetTexMode (glTextureMode mode, unsigned tex=0)

virtual float	glTexRate (unsigned tex=0) const

virtual void	glSetTexRate (float rate, unsigned tex=0)

virtual glTextureFiltering	glTexFiltering (unsigned tex=0) const

virtual void	glSetTexFiltering (glTextureFiltering x, unsigned tex=0)

virtual glAutoTexturingMode	glAutoTexMode (unsigned tex=0) const

virtual void	glSetAutoTexMode (glAutoTexturingMode mode, unsigned tex=0)

virtual const float *	glAutoTexParams (unsigned coord=0, unsigned tex=0) const

virtual void	glSetAutoTexParams (const float *params, unsigned coord=0, unsigned tex=0)

virtual bool	glTexImageChanged (unsigned tex=0) const

virtual bool	glTexEnvChanged (unsigned tex=0) const

virtual GLint	glGLTexMode (unsigned tex=0) const

virtual GLint	glGLTexFiltering (unsigned tex=0) const

virtual void	glSetTexRGBInterpolation (bool x, unsigned tex=0)

virtual bool	glTexRGBInterpolation (unsigned tex=0) const

virtual const TexExtrema &	glTexExtrema (unsigned tex=0) const

virtual TexExtrema &	glTexExtrema (unsigned tex=0)

virtual GLPrimitives	glMainGLL (const ViewState &)

virtual void	glGarbageCollector (int nkept=-1)
	Frees unused display lists. More...

unsigned	glStateMemory () const
	Number of unused display lists in different states kept in memory (default: 4) More...

virtual void	glSetStateMemory (unsigned n)

virtual bool	glMakeBodyGLL (const ViewState &state, const GLList &gllist) const
	If you want to make a non-standard GL display list for the body geometry, overload this function to fill `gllist`. More...

virtual void	glBeforeBodyGLL (const ViewState &state, GLPrimitives &pl) const
	GL list to execute before the body is rendered. More...

virtual void	glAfterBodyGLL (const ViewState &state, GLPrimitives &pl) const
	GL list to execute after the body is rendered. More...

virtual bool	glMakeTexEnvGLL (const ViewState &state, const GLList &gllist, unsigned tex) const

virtual GLPrimitives	glBodyGLL (const ViewState &state) const

virtual GLPrimitives	glMaterialGLL (const ViewState &state) const

virtual GLPrimitives	glTexNameGLL (const ViewState &, unsigned tex=0) const

virtual GLPrimitives	glTexEnvGLL (const ViewState &, unsigned tex=0) const

virtual void	glSetMainGLL (const std::string &state, GLPrimitives x)

virtual void	glSetBodyGLL (const std::string &state, RefGLItem x)

virtual void	glSetMaterialGLL (const std::string &state, RefGLItem x)

virtual void	glSetTexNameGLL (const std::string &state, RefGLItem x, unsigned tex=0)

virtual std::set< glTextureMode >	glAllowedTexModes (unsigned tex=0) const
	List of actually allowed texturing modes for this particular object. More...

virtual std::set< glTextureFiltering >	glAllowedTexFilterings (unsigned tex=0) const

virtual std::set< glAutoTexturingMode >	glAllowedAutoTexModes (unsigned tex=0) const

virtual bool	glAllowedTexRate (unsigned tex=0) const

virtual carto::Object	debugInfo () const

int	glObjectID () const

virtual TexInfo &	glTexInfo (unsigned tex=0) const

Additional Inherited Members
Public Types inherited from anatomist::GLComponent
enum	glTextureMode { glGEOMETRIC , glLINEAR , glREPLACE , glDECAL , glBLEND , glADD , glCOMBINE , glLINEAR_A_IF_A , glLINEAR_ON_DEFINED , glLINEAR_A_IF_B = glLINEAR_ON_DEFINED , glLINEAR_A_IF_NOT_A , glLINEAR_A_IF_NOT_B , glLINEAR_B_IF_A , glLINEAR_B_IF_B , glLINEAR_B_IF_NOT_A , glLINEAR_B_IF_NOT_B , glLINEAR_A_IF_A_ALPHA , glLINEAR_A_IF_NOT_B_ALPHA , glLINEAR_B_IF_B_ALPHA , glLINEAR_B_IF_NOT_A_ALPHA , glMAX_CHANNEL , glMIN_CHANNEL , glMAX_ALPHA , glMIN_ALPHA , glGEOMETRIC_SQRT , glGEOMETRIC_LIGHTEN }

enum	glTextureFiltering { glFILT_NEAREST , glFILT_LINEAR }

enum	glPart { glGENERAL , glBODY , glMATERIAL , glGEOMETRY , glPALETTE , glREFERENTIAL , glTEXIMAGE , glTEXENV , glNOPART , glTEXIMAGE_NUM , glTEXENV_NUM }
	GL object parts, each driving a GL list. More...

enum	glAutoTexturingMode { glTEX_MANUAL , glTEX_OBJECT_LINEAR , glTEX_EYE_LINEAR , glTEX_SPHERE_MAP , glTEX_REFLECTION_MAP , glTEX_NORMAL_MAP }

typedef ViewState::glSelectRenderMode	glSelectRenderMode

Static Public Member Functions inherited from anatomist::GLComponent
static unsigned long	glGlobalMaxNumDisplayedPolygons ()

static void	glSetGlobalMaxNumDisplayedPolygons (unsigned long n)

static GLPrimitives	glHandleTransformation (const ViewState &vs, const Referential *myref)
	helper function used in AObject::render() More...

static GLPrimitives	glPopTransformation (const ViewState &vs, const Referential *myref)
	called after glHandleTransformation() and glMainGLL() to pop the transformation matrix More...

Protected Member Functions inherited from anatomist::GLComponent
void	glAddTextures (unsigned ntex=1)

Detailed Description

Sliceable objects can draw themselves in a 2D texture.

The slice information is provided on demand as a ViewState information.

Definition at line 58 of file sliceable.h.

Constructor & Destructor Documentation

◆ Sliceable()

anatomist::Sliceable::Sliceable ( )

◆ ~Sliceable()

virtual anatomist::Sliceable::~Sliceable ( )

virtual

Member Function Documentation

◆ getReferential()

virtual const Referential* anatomist::Sliceable::getReferential ( ) const

pure virtual

Implemented in anatomist::VectorField, anatomist::Fusion2DMesh, anatomist::SliceableObject, and anatomist::Fusion2D.

◆ glAllowedTexRGBInterpolation()

virtual bool anatomist::Sliceable::glAllowedTexRGBInterpolation ( unsigned tex = 0 ) const

virtual

Reimplemented from anatomist::GLComponent.

◆ glBuildTexImage()

virtual carto::VolumeRef<AimsRGBA> anatomist::Sliceable::glBuildTexImage	(	const ViewState &	state,
		unsigned	tex,
		int	dimx = `-1`,
		int	dimy = `-1`,
		bool	useTexScale = `true`
	)		const

virtual

If you make non-standard textures (ie not from a palette), overload this function.

New in Anatomist 4.5, it is used by glMakeTexImage, and may also be used to save the texture data of an arbitrary object.

Parameters

dimx	and dimy are target texture sizes. If left to -1 (default), the size is calculated internally.
useTexScale	if true (default), allow using OpenGL scaling in texture space. Otherwise the palette image will be adapted to fit the scale.

Reimplemented from anatomist::GLComponent.

◆ glDimTex()

virtual unsigned anatomist::Sliceable::glDimTex	(	const ViewState &	,
		unsigned	tex = `0`
	)		const

virtual

texture dimension (1, 2 [or 3])

Reimplemented from anatomist::GLComponent.

◆ glMakeTexImage()

virtual bool anatomist::Sliceable::glMakeTexImage	(	const ViewState &	state,
		const GLTexture &	gltex,
		unsigned	tex
	)		const

virtual

If you make non-standard textures (ie not from a palette), overload this function to fill gltex.

Since Anatomist 4.5, glMakeTexImage calls glBuildTexImage, which is actually the method to be overloaded by subclasses.

Returns: true on success, false if a texture could not be created

Reimplemented from anatomist::GLComponent.

◆ glMax2D()

virtual std::vector<float> anatomist::Sliceable::glMax2D ( ) const

pure virtual

Implemented in anatomist::VectorField, anatomist::Fusion2DMesh, anatomist::SliceableObject, and anatomist::Fusion2D.

◆ glMin2D()

virtual std::vector<float> anatomist::Sliceable::glMin2D ( ) const

pure virtual

Implemented in anatomist::VectorField, anatomist::Fusion2DMesh, anatomist::SliceableObject, and anatomist::Fusion2D.

◆ glNormalArray()

virtual const GLfloat* anatomist::Sliceable::glNormalArray ( const ViewState & ) const

virtual

normals array (optional), default=0 (no normals, flat shaded faces)

Reimplemented from anatomist::GLComponent.

Reimplemented in anatomist::Fusion2DMesh.

◆ glNumPolygon()

virtual unsigned anatomist::Sliceable::glNumPolygon ( const ViewState & ) const

virtual

Reimplemented from anatomist::GLComponent.

Reimplemented in anatomist::Fusion2DMesh.

◆ glNumVertex()

virtual unsigned anatomist::Sliceable::glNumVertex ( const ViewState & ) const

virtual

Reimplemented from anatomist::GLComponent.

Reimplemented in anatomist::Fusion2DMesh.

◆ glPolygonArray()

virtual const GLuint* anatomist::Sliceable::glPolygonArray ( const ViewState & ) const

virtual

Reimplemented from anatomist::GLComponent.

Reimplemented in anatomist::Fusion2DMesh.

◆ glPolygonSize()

virtual unsigned anatomist::Sliceable::glPolygonSize ( const ViewState & ) const

virtual

number of vertices per polygon (default = 3: triangles)

Reimplemented from anatomist::GLComponent.

Reimplemented in anatomist::Fusion2DMesh.

◆ glTexCoordArray()

virtual const GLfloat* anatomist::Sliceable::glTexCoordArray	(	const ViewState &	,
		unsigned	tex = `0`
	)		const

virtual

Reimplemented from anatomist::GLComponent.

◆ glTexCoordSize()

virtual unsigned anatomist::Sliceable::glTexCoordSize	(	const ViewState &	,
		unsigned	tex = `0`
	)		const

virtual

texture array size (must be >= numVertex to work), defalut=0

Reimplemented from anatomist::GLComponent.

◆ glVertexArray()

virtual const GLfloat* anatomist::Sliceable::glVertexArray ( const ViewState & ) const

virtual

Reimplemented from anatomist::GLComponent.

Reimplemented in anatomist::Fusion2DMesh.

◆ glVoxelSize()

virtual std::vector<float> anatomist::Sliceable::glVoxelSize ( ) const

virtual

Reimplemented in anatomist::VectorField, anatomist::SliceableObject, and anatomist::Fusion2D.

◆ rgbaVolume() [1/2]

virtual void anatomist::Sliceable::rgbaVolume	(	carto::Volume< AimsRGBA > &	,
		const SliceViewState *	= `0`,
		int	tex = `0`
	)		const

virtual

same as the other rgbaVolume() but fills an already allocated volume

◆ rgbaVolume() [2/2]

virtual carto::VolumeRef<AimsRGBA> anatomist::Sliceable::rgbaVolume	(	const SliceViewState *	= `0`,
		int	tex = `0`
	)		const

virtual

fills a resampled RGBA volume

◆ sliceableAPI() [1/2]

virtual Sliceable* anatomist::Sliceable::sliceableAPI ( )

inlinevirtual

Reimplemented from anatomist::GLComponent.

Reimplemented in anatomist::VectorField, anatomist::Fusion2DMesh, anatomist::SliceableObject, and anatomist::Fusion2D.

Definition at line 65 of file sliceable.h.

◆ sliceableAPI() [2/2]

virtual const Sliceable* anatomist::Sliceable::sliceableAPI ( ) const

inlinevirtual

Reimplemented from anatomist::GLComponent.

Reimplemented in anatomist::VectorField, anatomist::Fusion2DMesh, anatomist::SliceableObject, and anatomist::Fusion2D.

Definition at line 64 of file sliceable.h.

◆ update2DTexture()

virtual bool anatomist::Sliceable::update2DTexture	(	AImage &	,
		const Point3df &	posbase,
		const SliceViewState &	,
		unsigned	tex = `0`
	)		const

virtual

this function must be overloaded to actually fill the slice image

Reimplemented in anatomist::AVolume< T >, and anatomist::Fusion2D.

◆ viewStateID()

virtual std::string anatomist::Sliceable::viewStateID	(	glPart	part,
		const ViewState &
	)		const

virtual

Makes a unique ID from a viewstate.

The ID must be unique within the GLComponent instance and for the part part. Depending on the aspects of the viewstate to take into account, subclasses may have to overload it.

For instance, a mesh may build an ID only taking time into account, whereas a volume slice must also code the slice position and orientation into the ID.

Reimplemented from anatomist::GLComponent.

The documentation for this class was generated from the following file:

anatomist/object/sliceable.h

Public Member Functions

Additional Inherited Members

Detailed Description

Constructor & Destructor Documentation

◆ Sliceable()

◆ ~Sliceable()

Member Function Documentation

◆ getReferential()

◆ glAllowedTexRGBInterpolation()

◆ glBuildTexImage()

◆ glDimTex()

◆ glMakeTexImage()

◆ glMax2D()

◆ glMin2D()

◆ glNormalArray()

◆ glNumPolygon()

◆ glNumVertex()

◆ glPolygonArray()

◆ glPolygonSize()

◆ glTexCoordArray()

◆ glTexCoordSize()

◆ glVertexArray()

◆ glVoxelSize()

◆ rgbaVolume() [1/2]

◆ rgbaVolume() [2/2]

◆ sliceableAPI() [1/2]

◆ sliceableAPI() [2/2]

◆ update2DTexture()

◆ viewStateID()
