anatomist::LoadTransformationCommand Class Reference

Load a transformation between two referentials. More...

#include <anatomist/commands/cLoadTransformation.h>

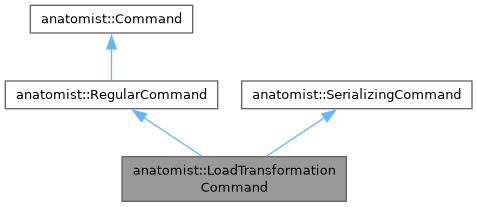

Inheritance diagram for anatomist::LoadTransformationCommand:

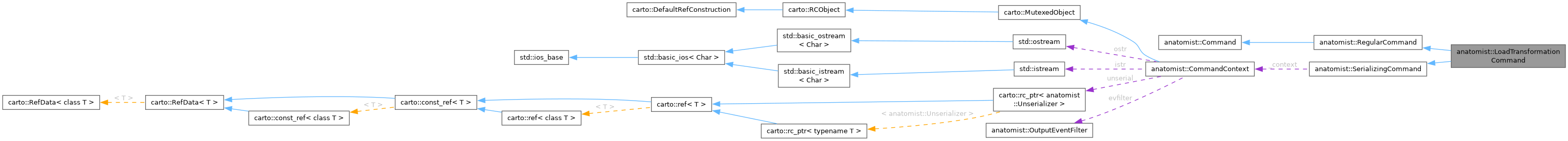

Collaboration diagram for anatomist::LoadTransformationCommand:

Public Member Functions
	LoadTransformationCommand (const std::string &filename, Referential *org, Referential *dst, int res_id=-1, CommandContext *context=&CommandContext::defaultContext())
	Load transformation from file.
	LoadTransformationCommand (const float matrix[4][3], Referential *org, Referential *dst, int res_id=-1, CommandContext *context=&CommandContext::defaultContext())
	Give hard-coded transformation matrix.
	LoadTransformationCommand (const std::vector< float > &, Referential *org, Referential *dst, int res_id=-1, CommandContext *context=&CommandContext::defaultContext())
	Give hard-coded transformation matrix.
virtual	~LoadTransformationCommand ()
virtual std::string	name () const
	Return the unique name of a class of commands.
virtual void	write (Tree &com, Serializer *ser) const
	Print the guts of a command into a Tree given as parent.
Transformation *	trans () const
Public Member Functions inherited from anatomist::RegularCommand
virtual	~RegularCommand ()
	Destructor does nothing.
Public Member Functions inherited from anatomist::Command
virtual	~Command ()
	Destructor does nothing.
virtual void	execute ()
	Execute the command - may use {\tt doit()}.
virtual void	undo ()
	Undo the command - may use {\tt undoit()}.
virtual void	redo ()
	Redo the command - may use {\tt doit()}.
Public Member Functions inherited from anatomist::SerializingCommand
virtual	~SerializingCommand ()
CommandContext *	context ()
const CommandContext *	context () const

Protected Member Functions
virtual void	doit ()
	Do a command.
Protected Member Functions inherited from anatomist::RegularCommand
	RegularCommand ()
	The programmer cannot call the constructor of an abstract base class.
Protected Member Functions inherited from anatomist::Command
	Command ()
	The programmer cannot call the constructor of an abstract base class.
virtual void	undoit ()
	Undo a command.
Protected Member Functions inherited from anatomist::SerializingCommand
	SerializingCommand (CommandContext *)

Friends
class	StdModule

Additional Inherited Members
Public Types inherited from anatomist::Command
typedef Command *(*	Reader) (const Tree &, CommandContext *)
Protected Attributes inherited from anatomist::SerializingCommand
CommandContext *	_context

Detailed Description

Load a transformation between two referentials.

Definition at line 52 of file cLoadTransformation.h.

Constructor & Destructor Documentation

LoadTransformationCommand() [1/3]

anatomist::LoadTransformationCommand::LoadTransformationCommand	(	const std::string &	filename,
		Referential *	org,
		Referential *	dst,
		int	res_id = -1,
		CommandContext *	context = &CommandContext::defaultContext() )

Load transformation from file.

References anatomist::SerializingCommand::context(), and anatomist::CommandContext::defaultContext().

LoadTransformationCommand() [2/3]

anatomist::LoadTransformationCommand::LoadTransformationCommand	(	const float	matrix[4][3],
		Referential *	org,
		Referential *	dst,
		int	res_id = -1,
		CommandContext *	context = &CommandContext::defaultContext() )

Give hard-coded transformation matrix.

(4 lines, 3 cols, 1st line=translation)

References anatomist::SerializingCommand::context(), and anatomist::CommandContext::defaultContext().

LoadTransformationCommand() [3/3]

anatomist::LoadTransformationCommand::LoadTransformationCommand	(	const std::vector< float > &	,
		Referential *	org,
		Referential *	dst,
		int	res_id = -1,
		CommandContext *	context = &CommandContext::defaultContext() )

Give hard-coded transformation matrix.

(1 line, 1st 3 elementse=translation)

References anatomist::SerializingCommand::context(), and anatomist::CommandContext::defaultContext().

~LoadTransformationCommand()

virtual anatomist::LoadTransformationCommand::~LoadTransformationCommand ( )

virtual

Member Function Documentation

doit()

virtual void anatomist::LoadTransformationCommand::doit ( )

protectedvirtual

Do a command.

Implements anatomist::Command.

name()

virtual std::string anatomist::LoadTransformationCommand::name ( ) const

inlinevirtual

Return the unique name of a class of commands.

Implements anatomist::Command.

Definition at line 75 of file cLoadTransformation.h.

trans()

Transformation * anatomist::LoadTransformationCommand::trans ( ) const

inline

Definition at line 77 of file cLoadTransformation.h.

write()

virtual void anatomist::LoadTransformationCommand::write ( Tree & com, Serializer * ser ) const

virtual

Print the guts of a command into a Tree given as parent.

Reimplemented from anatomist::Command.

Friends And Related Symbol Documentation

StdModule

friend class StdModule

friend

Definition at line 90 of file cLoadTransformation.h.

References anatomist::SerializingCommand::context(), and StdModule.

Referenced by StdModule.

---

The documentation for this class was generated from the following file:

• anatomist/commands/cLoadTransformation.h
