#include <anatomist/window/glwidget.h>

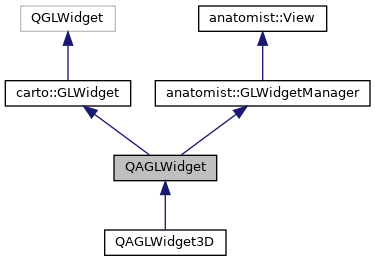

Inheritance diagram for QAGLWidget:

[legend]

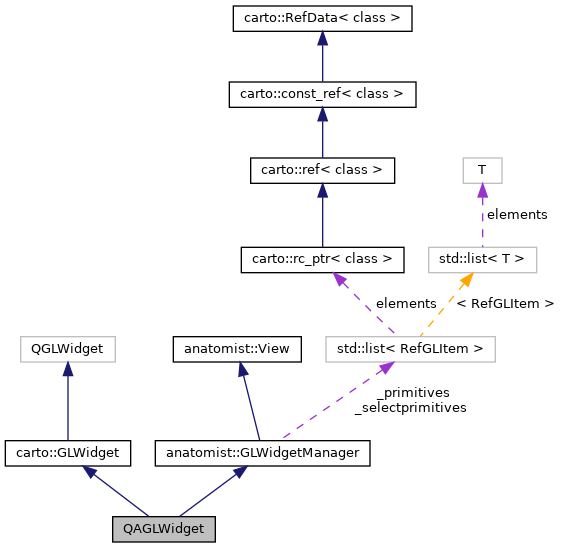

Collaboration diagram for QAGLWidget:

[legend]

Public Slots
virtual void	updateGL ()
	to be reimplemented in "public slots" More...

void	debugPrint ()

Signals
void	viewRendered ()

Public Member Functions
	QAGLWidget (anatomist::AWindow win, QWidget parent=0, const char name=0, const QGLWidget shareWidget=0, Qt::WindowFlags f=Qt::WindowFlags())

virtual	~QAGLWidget ()

virtual QSize	sizeHint () const

virtual QSize	minimumSizeHint () const

virtual std::string	name () const

int	width ()

int	height ()

Public Member Functions inherited from carto::GLWidget
	GLWidget (QWidget parent=0, const char name=0, const QGLWidget *shareWidget=0, Qt::WindowFlags f=Qt::WindowFlags())

	GLWidget (const QGLFormat &format, QWidget parent=0, const char name=0, const QGLWidget *shareWidget=0, Qt::WindowFlags f=Qt::WindowFlags())

virtual	~GLWidget ()

Public Member Functions inherited from anatomist::GLWidgetManager
virtual void	updateGL ()

void	renderBackBuffer (ViewState::glSelectRenderMode selectmode)

void	copyBackBuffer2Texture (void)

virtual void	paintScene ()
	basically calls paintGL() More...

	GLWidgetManager (anatomist::AWindow win, QGLWidget widget)

virtual	~GLWidgetManager ()

QGLWidget *	qglWidget ()

QObject *	qobject ()
	this QObject is used for slots: updateZBuffer, saveContents, recordStart, recordStop More...

void	setPrimitives (const anatomist::GLPrimitives &li)

anatomist::GLPrimitives	primitives () const

void	setSelectionPrimitives (const anatomist::GLPrimitives &li)

anatomist::GLPrimitives	selectionPrimitives () const

void	clearLists ()

void	setExtrema (const Point3df &bmin, const Point3df &bmax)
	set objects extrema, this also automatically sets the window bounding box More...

void	setWindowExtrema (const Point3df &bmin, const Point3df &bmax)
	set window extrema (in the local orientation) More...

Point3df	boundingMin () const

Point3df	boundingMax () const

Point3df	windowBoundingMin () const

Point3df	windowBoundingMax () const

void	setLightGLList (GLuint l)

GLuint	lightGLList () const

void	setPreferredSize (int, int)

void	setMinimumSizeHint (const QSize &)

virtual bool	positionFromCursor (int x, int y, Point3df &position)

virtual bool	cursorFromPosition (const Point3df &position, Point3df &cursor)

virtual Point3df	objectPositionFromWindow (const Point3df &winpos)

virtual void	readBackBuffer (int x, int y, GLubyte &red, GLubyte &green, GLubyte &blue)

GLubyte *	getTextureFromBackBuffer ()

virtual bool	translateCursorPosition (float x, float y, Point3df &position)

void	setZoom (float z)

float	zoom () const

const aims::Quaternion &	quaternion () const
	The quaternion rotates the initial eye direction (0, 0, 1) into the view coordinates, before Z axis inversion. More...

void	setQuaternion (const Point4df &q)

void	setQuaternion (const aims::Quaternion &q)

const float *	rotation () const

void	setXDirection (bool invert)

void	setYDirection (bool invert)

void	setZDirection (bool invert)

bool	invertedX () const

bool	invertedY () const

bool	invertedZ () const

void	setRotationCenter (const Point3df &)

Point3df	rotationCenter () const

bool	perspectiveEnabled () const

void	enablePerspective (bool)

float	perspectiveAngle () const

void	setPerspectiveAngle (float a)

bool	perspectiveAutoFarPlane () const

void	setPerspectiveAutoFarPlane (bool x)

float	perspectiveFarPlane () const

void	setPerspectiveFarPlane (float d)

float	perspectiveNearPlane () const

float	perspectiveNearPlaneRatio () const

void	setPerspectiveNearPlaneRatio (float d)

void	setAutoCentering (bool)

bool	autoCentering () const

virtual void	recordStart (const QString &basename, const QString &format=QString(), int width=0, int height=0)

void	saveContents (const QString &filename, const QString &format, int width=0, int height=0)

QImage	snapshotImage (int bufmode, int width=0, int height=0)

void	saveOtherBuffer (const QString &filename, const QString &format, int mode, int width=0, int height=0)

void	setOtherBuffersSaveMode (int mode)

int	otherBuffersSaveMode () const

bool	hasTransparentObjects () const

void	setTransparentObjects (bool)

bool	depthPeelingAllowed () const

bool	depthPeelingEnabled () const

void	enableDepthPeeling (bool)

unsigned	depthPeelingPasses () const

void	setDepthPeelingPasses (unsigned n)

unsigned	numTextureUnits () const

bool	recording () const

void	setBackgroundAlpha (float a)

GLWidgetManager *	rightEye ()

GLWidgetManager *	leftEye ()

void	setRightEye (GLWidgetManager *)

void	setLeftEye (GLWidgetManager *)

AWindow *	aWindow ()

const AWindow *	aWindow () const

virtual void	saveContents ()

void	saveContentsWithCustomSize ()

virtual void	recordStart ()

void	recordStartWithCustomSize ()

virtual void	recordStop ()

bool	hasCameraChanged () const

void	bindOtherFramebuffer (DrawMode m)

void	restoreFramebuffer ()

void	resizeOtherFramebuffers (int w, int h)

Public Member Functions inherited from anatomist::View
	View (AWindow *win)

virtual	~View ()

ControlSwitch *	controlSwitch ()

Protected Member Functions
virtual void	initializeGL () Q_DECL_OVERRIDE

virtual void	resizeGL (int w, int h) Q_DECL_OVERRIDE

virtual void	paintGL () Q_DECL_OVERRIDE

virtual void	mousePressEvent (QMouseEvent *me)

virtual void	mouseReleaseEvent (QMouseEvent *me)

virtual void	mouseMoveEvent (QMouseEvent *me)

virtual void	mouseDoubleClickEvent (QMouseEvent *)

virtual void	keyPressEvent (QKeyEvent *ev)

virtual void	keyReleaseEvent (QKeyEvent *ev)

virtual void	focusInEvent (QFocusEvent *)

virtual void	focusOutEvent (QFocusEvent *)

virtual void	wheelEvent (QWheelEvent *)

Protected Member Functions inherited from anatomist::GLWidgetManager
virtual void	project (int virtualWidth=0, int virtualHeight=0)

virtual void	setupView (int virtualWidth=0, int virtualHeight=0)

void	drawObjects (DrawMode m=Normal)

void	depthPeelingRender (DrawMode m=Normal)

virtual void	paintGL (DrawMode m, int virtualWidth=0, int virtualHeight=0)
	Virtual width and height are used to perform off-screen rendering. More...

void	record ()

virtual void	updateZBuffer ()

bool	isZBufferUpToDate () const

void	setZBufferUpdated (bool)

void	stopZBufferTimer ()

bool	isRGBBufferUpToDate () const

void	setRGBBufferUpdated (bool)

Additional Inherited Members
Public Types inherited from anatomist::GLWidgetManager
enum	DrawMode { Normal , ZSelect , ObjectSelect , ObjectsSelect , PolygonSelect }

Static Public Member Functions inherited from anatomist::GLWidgetManager
static QGLWidget *	sharedWidget ()

Protected Attributes inherited from anatomist::GLWidgetManager
anatomist::GLPrimitives	_primitives

anatomist::GLPrimitives	_selectprimitives

Detailed Description

Definition at line 54 of file glwidget.h.

Constructor & Destructor Documentation

◆ QAGLWidget()

QAGLWidget::QAGLWidget	(	anatomist::AWindow *	win,
		QWidget *	parent = `0`,
		const char *	name = `0`,
		const QGLWidget *	shareWidget = `0`,
		Qt::WindowFlags	f = `Qt::WindowFlags()`
	)

◆ ~QAGLWidget()

virtual QAGLWidget::~QAGLWidget ( )

virtual

Member Function Documentation

◆ debugPrint

void QAGLWidget::debugPrint ( )

slot

◆ focusInEvent()

virtual void QAGLWidget::focusInEvent ( QFocusEvent * )

protectedvirtual

Reimplemented from anatomist::GLWidgetManager.

◆ focusOutEvent()

virtual void QAGLWidget::focusOutEvent ( QFocusEvent * )

protectedvirtual

Reimplemented from anatomist::GLWidgetManager.

◆ height()

int QAGLWidget::height ( )

inlinevirtual

Implements anatomist::GLWidgetManager.

Definition at line 84 of file glwidget.h.

◆ initializeGL()

virtual void QAGLWidget::initializeGL ( )

protectedvirtual

Reimplemented from anatomist::GLWidgetManager.

◆ keyPressEvent()

virtual void QAGLWidget::keyPressEvent ( QKeyEvent * ev )

protectedvirtual

Reimplemented from anatomist::GLWidgetManager.

◆ keyReleaseEvent()

virtual void QAGLWidget::keyReleaseEvent ( QKeyEvent * ev )

protectedvirtual

Reimplemented from anatomist::GLWidgetManager.

◆ minimumSizeHint()

virtual QSize QAGLWidget::minimumSizeHint ( ) const

virtual

Reimplemented from anatomist::GLWidgetManager.

◆ mouseDoubleClickEvent()

virtual void QAGLWidget::mouseDoubleClickEvent ( QMouseEvent * )

protectedvirtual

Reimplemented from anatomist::GLWidgetManager.

◆ mouseMoveEvent()

virtual void QAGLWidget::mouseMoveEvent ( QMouseEvent * me )

protectedvirtual

Reimplemented from anatomist::GLWidgetManager.

◆ mousePressEvent()

virtual void QAGLWidget::mousePressEvent ( QMouseEvent * me )

protectedvirtual

Reimplemented from anatomist::GLWidgetManager.

◆ mouseReleaseEvent()

virtual void QAGLWidget::mouseReleaseEvent ( QMouseEvent * me )

protectedvirtual

Reimplemented from anatomist::GLWidgetManager.

◆ name()

virtual std::string QAGLWidget::name ( ) const

virtual

Reimplemented from anatomist::GLWidgetManager.

Reimplemented in QAGLWidget3D.

◆ paintGL()

virtual void QAGLWidget::paintGL ( )

protectedvirtual

Reimplemented from anatomist::GLWidgetManager.

◆ resizeGL()

virtual void QAGLWidget::resizeGL	(	int	w,
		int	h
	)

protectedvirtual

Reimplemented from anatomist::GLWidgetManager.

◆ sizeHint()

virtual QSize QAGLWidget::sizeHint ( ) const

virtual

Reimplemented from anatomist::GLWidgetManager.

◆ updateGL

virtual void QAGLWidget::updateGL ( )

virtualslot

to be reimplemented in "public slots"

◆ viewRendered

void QAGLWidget::viewRendered ( )

signal

◆ wheelEvent()

virtual void QAGLWidget::wheelEvent ( QWheelEvent * )

protectedvirtual

Reimplemented from anatomist::GLWidgetManager.

◆ width()

int QAGLWidget::width ( )

inlinevirtual

Implements anatomist::GLWidgetManager.

Definition at line 75 of file glwidget.h.

The documentation for this class was generated from the following file:

anatomist/window/glwidget.h
