Selection windows factory, providing Qt windows / widgets. More...

#include <anatomist/selection/qSelectFactory.h>

Inheritance diagram for QSelectFactory:

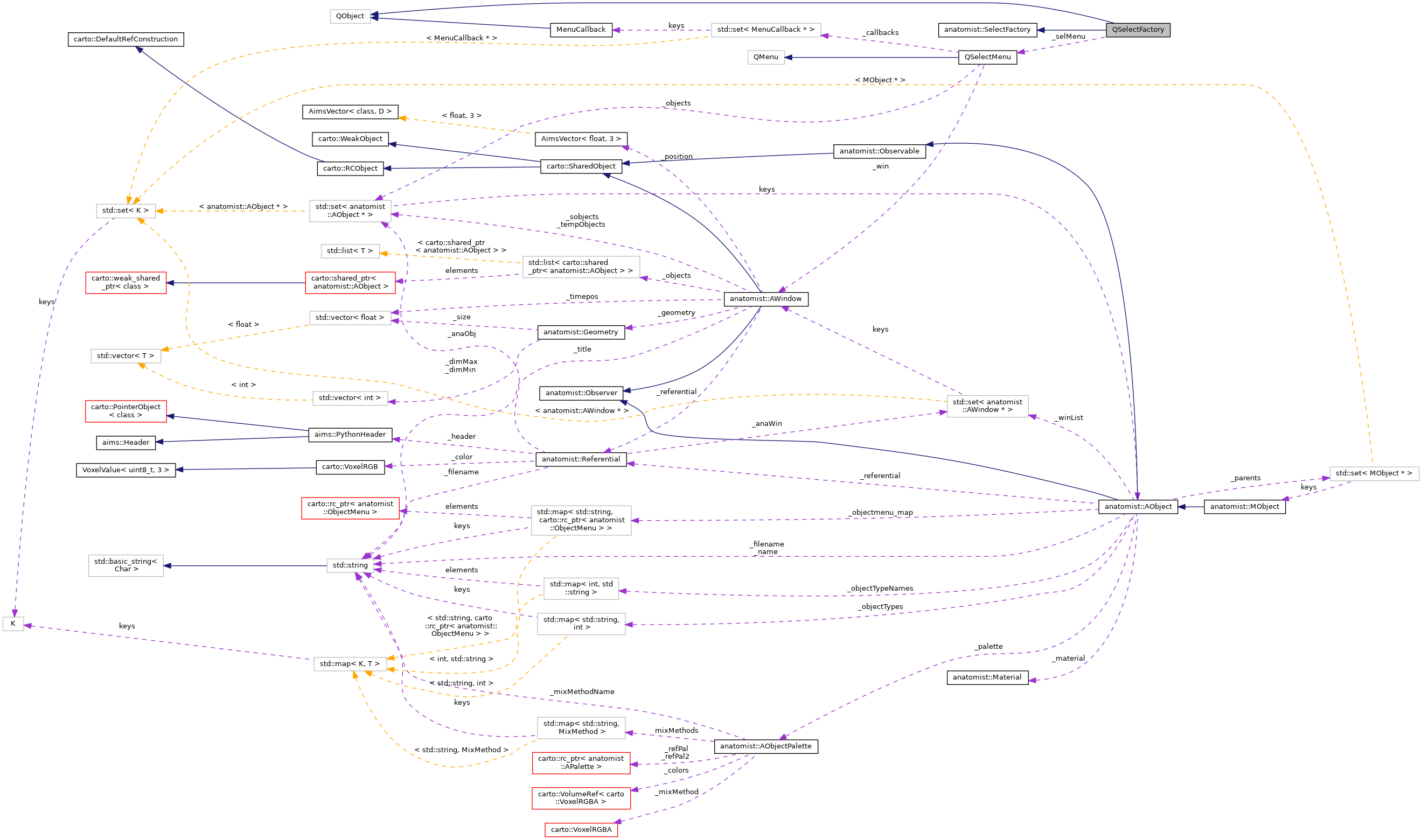

Collaboration diagram for QSelectFactory:

[legend]

Public Slots
virtual void	view (anatomist::AWindow *win)

virtual void	unselect (anatomist::AWindow *win)

virtual void	selectAll (anatomist::AWindow *win)

virtual void	remove (anatomist::AWindow *win)

virtual void	removeFromThisWindow (anatomist::AWindow *win)

virtual void	neighbours (anatomist::AWindow *win)

virtual void	selAttrib (anatomist::AWindow *win)

Public Member Functions
	QSelectFactory ()

virtual	~QSelectFactory ()

virtual anatomist::WSelectChooser *	createSelectChooser (unsigned group, const std::set< anatomist::AObject * > &objects) const
	Creates a selection choice window. More...

virtual void	handleSelectionMenu (anatomist::AWindow win, int x, int y, const Tree specific=0)
	draws / handles the selection menu (right click) More...

virtual void	selectNeighbours (anatomist::AGraph graph, anatomist::AGraphObject go, std::set< anatomist::AObject * > &toselect) const

virtual void	selectNodesWith (std::set< anatomist::AObject * > &tosel, const Graph *gr, const std::string &attr, const std::string &val)

Public Member Functions inherited from anatomist::SelectFactory
	SelectFactory ()

virtual	~SelectFactory ()

const std::map< unsigned, std::set< AObject * > > &	selected () const

virtual void	select (unsigned group, const std::set< AObject * > &obj, const HColor *col=0) const

virtual void	unselect (unsigned group, const std::set< AObject * > &obj) const

virtual void	unselectAll (unsigned group) const

virtual void	selectAll (AWindow win, const HColor col=0) const
	Selects all selectable objects in a given window. More...

virtual void	flip (unsigned group, const std::set< AObject * > &obj, const HColor *col=0) const
	Inverts state of given objects. More...

virtual void	select (SelectMode mode, unsigned group, const std::set< AObject * > &obj, const HColor *col=0) const

virtual bool	isSelected (unsigned group, AObject *obj) const

virtual HColor	highlightColor (AObject *obj) const

virtual void	setHighlightColor (AObject obj, const HColor col=0) const

virtual void	refresh () const
	Redraws objects in involved windows. More...

virtual void	refreshSelectionRendering () const
	Redraws all windows containing selected objects (called after selection rendering mode has changed) More...

virtual void	propagateSelection (unsigned group) const

virtual void	remove (anatomist::AWindow *win)

virtual void	removeFromThisWindow (anatomist::AWindow *win)

Protected Attributes
QSelectMenu *	_selMenu

Additional Inherited Members
Public Types inherited from anatomist::SelectFactory
enum	SelectMode { Normal = 0 , Add = 1 , Toggle = 2 }

Static Public Member Functions inherited from anatomist::SelectFactory
static void	setFactory (SelectFactory *fac)

static SelectFactory *	factory ()

static bool	hasAncestor (const AWindow win, AObject obj)
	tells if win sees obj or one of its ancestors More...

static AObject *	objectAt (AObject o, const std::vector< float > &pos, float tolerence, const Referential wref, const Point3df &wgeom, const std::string &selector="default")

static void	select (AWindow *w, const std::vector< float > &pos, float tolerence, int modifier, const std::string &selector="default")

static void	findObjectsAt (AWindow w, const std::vector< float > &pos, float tolerence, std::set< AObject > &shown, std::set< AObject * > &hidden, const std::string &selector)

static void	registerSelector (const std::string &key, Selector *s)

static void	registerPostSelector (const std::string &key, PostSelector *s)
	Registers possible actions to be taken after object selection. More...

static void	activatePostSelector (int priority, const std::string &psel)
	Activates a registered post-selector, it will be used after every object selection with a given priority. More...

static void	deactivatePostSelector (const std::string &psel)
	Dectivates a post-selector: won't be called anymore. More...

static void	setSelectColor (const HColor &col)

static HColor &	selectColor ()

static bool &	selectColorInverse ()

Detailed Description

Selection windows factory, providing Qt windows / widgets.

Definition at line 59 of file qSelectFactory.h.

Constructor & Destructor Documentation

◆ QSelectFactory()

QSelectFactory::QSelectFactory ( )

◆ ~QSelectFactory()

virtual QSelectFactory::~QSelectFactory ( )

virtual

Member Function Documentation

◆ createSelectChooser()

virtual anatomist::WSelectChooser* QSelectFactory::createSelectChooser	(	unsigned	group,
		const std::set< anatomist::AObject * > &	objects
	)		const

virtual

Creates a selection choice window.

The default factory returns a base object which is not really a window (see SelectChooser). This mechanism enables to switch between Motif windows and Qt windows (see QSelectFactory) implementations

Reimplemented from anatomist::SelectFactory.

◆ handleSelectionMenu()

virtual void QSelectFactory::handleSelectionMenu	(	anatomist::AWindow *	win,
		int	x,
		int	y,
		const Tree *	specific = `0`
	)

virtual

draws / handles the selection menu (right click)

Parameters

specific if given, describes the menu tree for window-specific actions. The callbacks must be in the tree, like in AObject's option trees. Callbacks type is void (*func)( void * ), with an optional "client_data" attribute passed to the function

Reimplemented from anatomist::SelectFactory.

◆ neighbours

virtual void QSelectFactory::neighbours ( anatomist::AWindow * win )

virtualslot

◆ remove

virtual void QSelectFactory::remove ( anatomist::AWindow * win )

virtualslot

◆ removeFromThisWindow

virtual void QSelectFactory::removeFromThisWindow ( anatomist::AWindow * win )

virtualslot

◆ selAttrib

virtual void QSelectFactory::selAttrib ( anatomist::AWindow * win )

virtualslot

◆ selectAll

virtual void QSelectFactory::selectAll ( anatomist::AWindow * win )

virtualslot

◆ selectNeighbours()

virtual void QSelectFactory::selectNeighbours	(	anatomist::AGraph *	graph,
		anatomist::AGraphObject *	go,
		std::set< anatomist::AObject * > &	toselect
	)		const

virtual

◆ selectNodesWith()

virtual void QSelectFactory::selectNodesWith	(	std::set< anatomist::AObject * > &	tosel,
		const Graph *	gr,
		const std::string &	attr,
		const std::string &	val
	)

virtual

References slots.

◆ unselect

virtual void QSelectFactory::unselect ( anatomist::AWindow * win )

virtualslot

◆ view

virtual void QSelectFactory::view ( anatomist::AWindow * win )

virtualslot

Member Data Documentation

◆ _selMenu

QSelectMenu* QSelectFactory::_selMenu

protected

Definition at line 93 of file qSelectFactory.h.

The documentation for this class was generated from the following file:

anatomist/selection/qSelectFactory.h
