RenderingWindow Class Reference

Rendering aspect (shading/lighting model, effects) tuning window. More...

#include <anatomist/color/wRendering.h>

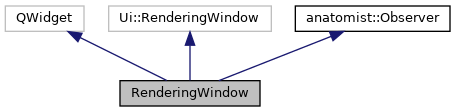

Inheritance diagram for RenderingWindow:

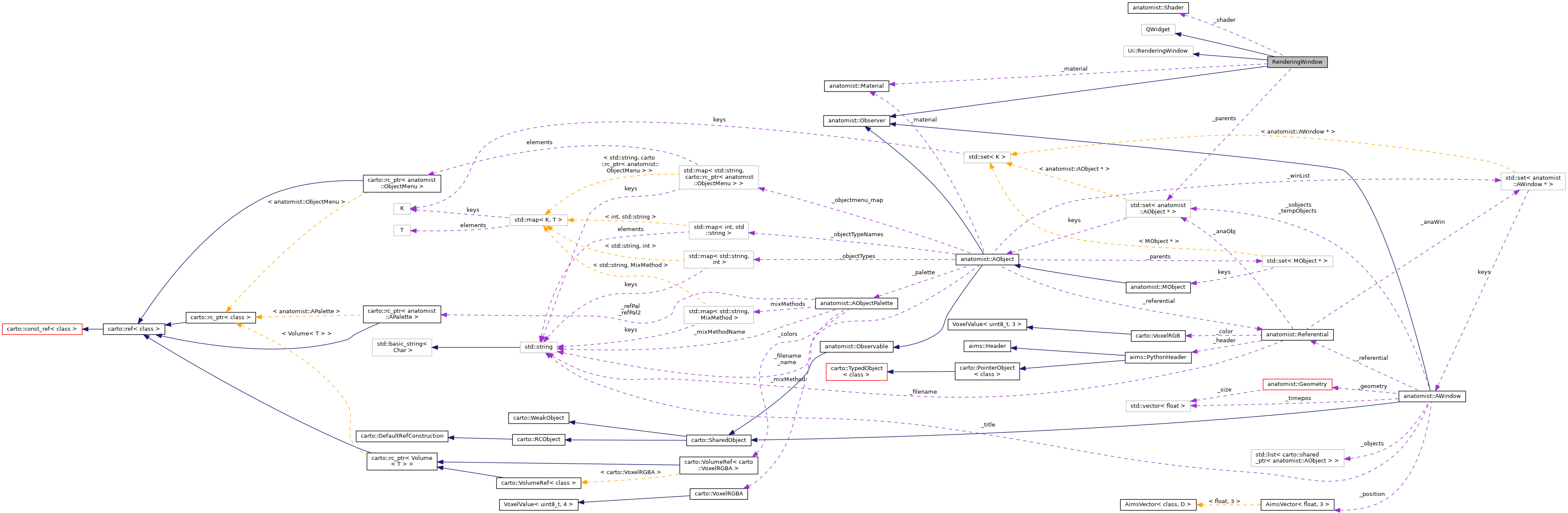

Collaboration diagram for RenderingWindow:

Public Member Functions
	RenderingWindow (const std::set< anatomist::AObject * > &, QWidget *parent=0, const char *name=0, Qt::WindowFlags f=Qt::WindowFlags())
virtual	~RenderingWindow ()
const std::set< anatomist::AObject * > &	objects () const
const anatomist::Material &	getMaterial () const
const anatomist::Shader &	getShader () const
void	update (const anatomist::Observable *observable, void *arg)
	This method is called whenever the observed object is changed. More...
void	updateObjectsRendering ()
void	updateInterface ()
void	runCommand ()
Public Member Functions inherited from anatomist::Observer
virtual	~Observer ()

Protected Slots
void	chooseObject ()
void	objectsChosen (const std::set< anatomist::AObject * > &)
void	enableShadersClicked (int x)
void	renderModeChanged (int x)
void	renderPropertyChanged (int x)
void	lightingModelChanged (int x)
void	interpolationModelChanged (int x)
void	coloringModelChanged (int x)
void	selectionModeChanged (int x)
void	lineWidthChanged ()
void	unlitColorClicked ()
void	reloadClicked (void)

Protected Member Functions
void	updateObjectsShading ()
void	removeObjectsShading ()
virtual void	unregisterObservable (anatomist::Observable *)
	Called when an observable is destroyed, only called by Observable: don't use this function directly. More...
Protected Member Functions inherited from anatomist::Observer
virtual void	cleanupObserver ()
	call this function from inherited classes destructors. More...
virtual void	registerObservable (Observable *)
	only called by Observable: don't use this function directly More...
const std::set< Observable * > &	observed () const

Protected Attributes
std::set< anatomist::AObject * >	_parents
anatomist::Material	_material
anatomist::Shader	_shader

Detailed Description

Rendering aspect (shading/lighting model, effects) tuning window.

Definition at line 54 of file wRendering.h.

Constructor & Destructor Documentation

RenderingWindow()

RenderingWindow::RenderingWindow	(	const std::set< anatomist::AObject * > &	,
		QWidget *	parent = 0,
		const char *	name = 0,
		Qt::WindowFlags	f = Qt::WindowFlags()
	)

~RenderingWindow()

virtual RenderingWindow::~RenderingWindow ( )

virtual

Member Function Documentation

chooseObject

void RenderingWindow::chooseObject ( )

protectedslot

coloringModelChanged

void RenderingWindow::coloringModelChanged ( int  x )

protectedslot

enableShadersClicked

void RenderingWindow::enableShadersClicked ( int  x )

protectedslot

getMaterial()

const anatomist::Material& RenderingWindow::getMaterial ( ) const

inline

Definition at line 64 of file wRendering.h.

References _material.

getShader()

const anatomist::Shader& RenderingWindow::getShader ( ) const

inline

Definition at line 65 of file wRendering.h.

References _shader.

interpolationModelChanged

void RenderingWindow::interpolationModelChanged ( int  x )

protectedslot

lightingModelChanged

void RenderingWindow::lightingModelChanged ( int  x )

protectedslot

lineWidthChanged

void RenderingWindow::lineWidthChanged ( )

protectedslot

objects()

const std::set<anatomist::AObject*>& RenderingWindow::objects ( ) const

inline

Definition at line 63 of file wRendering.h.

References _parents.

objectsChosen

void RenderingWindow::objectsChosen ( const std::set< anatomist::AObject * > &  )

protectedslot

reloadClicked

void RenderingWindow::reloadClicked ( void  )

protectedslot

removeObjectsShading()

void RenderingWindow::removeObjectsShading ( )

protected

renderModeChanged

void RenderingWindow::renderModeChanged ( int  x )

protectedslot

renderPropertyChanged

void RenderingWindow::renderPropertyChanged ( int  x )

protectedslot

runCommand()

void RenderingWindow::runCommand

(

)

References slots.

selectionModeChanged

void RenderingWindow::selectionModeChanged ( int  x )

protectedslot

unlitColorClicked

void RenderingWindow::unlitColorClicked ( )

protectedslot

unregisterObservable()

virtual void RenderingWindow::unregisterObservable ( anatomist::Observable *  )

protectedvirtual

Called when an observable is destroyed, only called by Observable: don't use this function directly.

Reimplemented from anatomist::Observer.

update()

void RenderingWindow::update ( const anatomist::Observable *  observable, void *  arg  )

virtual

This method is called whenever the observed object is changed.

The programmer calls an observable object's notifyObservers method to have all the object's observers notified of the change.

Parameters

observable

the observable object

Implements anatomist::Observer.

updateInterface()

void RenderingWindow::updateInterface

(

)

updateObjectsRendering()

void RenderingWindow::updateObjectsRendering

(

)

updateObjectsShading()

void RenderingWindow::updateObjectsShading ( )

protected

Member Data Documentation

_material

anatomist::Material RenderingWindow::_material

protected

Definition at line 94 of file wRendering.h.

Referenced by getMaterial().

_parents

std::set<anatomist::AObject *> RenderingWindow::_parents

protected

Definition at line 93 of file wRendering.h.

Referenced by objects().

_shader

anatomist::Shader RenderingWindow::_shader

protected

Definition at line 95 of file wRendering.h.

Referenced by getShader().

---

The documentation for this class was generated from the following file:

• anatomist/color/wRendering.h
