Assign a referential to objects and/or windows. More...

#include <anatomist/commands/cSetConnThres.h>

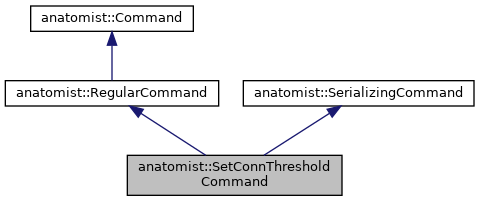

Inheritance diagram for anatomist::SetConnThresholdCommand:

[legend]

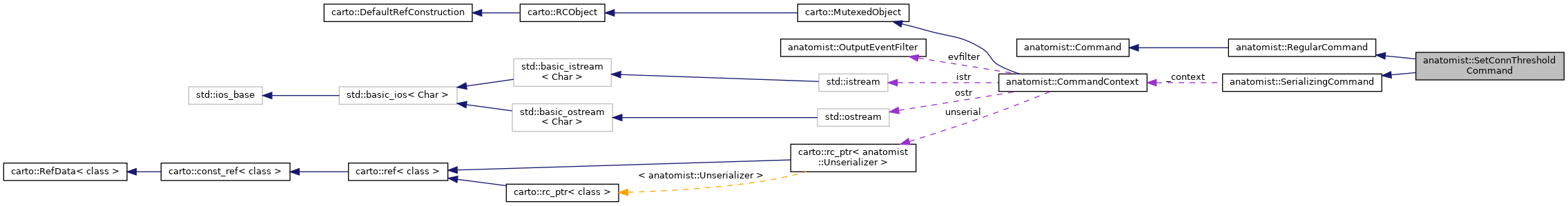

Collaboration diagram for anatomist::SetConnThresholdCommand:

[legend]

Public Member Functions
	SetConnThresholdCommand (AObject image, AWindow win, bool assignLowThreshold, float lowThres, bool assignHighThreshold, float highThres, CommandContext *context=0)

virtual	~SetConnThresholdCommand ()

virtual std::string	name () const
	Return the unique name of a class of commands. More...

virtual void	write (Tree &com, Serializer *ser) const
	Print the guts of a command into a Tree given as parent. More...

Public Member Functions inherited from anatomist::RegularCommand
virtual	~RegularCommand ()
	Destructor does nothing. More...

Public Member Functions inherited from anatomist::Command
virtual	~Command ()
	Destructor does nothing. More...

virtual void	execute ()
	Execute the command - may use {\tt doit()}. More...

virtual void	undo ()
	Undo the command - may use {\tt undoit()}. More...

virtual void	redo ()
	Redo the command - may use {\tt doit()}. More...

Public Member Functions inherited from anatomist::SerializingCommand
virtual	~SerializingCommand ()

CommandContext *	context ()

const CommandContext *	context () const

Protected Member Functions
virtual void	doit ()
	Do a command. More...

Protected Member Functions inherited from anatomist::RegularCommand
	RegularCommand ()
	The programmer cannot call the constructor of an abstract base class. More...

Protected Member Functions inherited from anatomist::Command
	Command ()
	The programmer cannot call the constructor of an abstract base class. More...

virtual void	undoit ()
	Undo a command. More...

Protected Member Functions inherited from anatomist::SerializingCommand
	SerializingCommand (CommandContext *)

Friends
class	StdModule

Additional Inherited Members
Public Types inherited from anatomist::Command
typedef Command (	Reader) (const Tree &, CommandContext *)

Protected Attributes inherited from anatomist::SerializingCommand
CommandContext *	_context

Detailed Description

Assign a referential to objects and/or windows.

Definition at line 52 of file cSetConnThres.h.

Constructor & Destructor Documentation

◆ SetConnThresholdCommand()

anatomist::SetConnThresholdCommand::SetConnThresholdCommand	(	AObject *	image,
		AWindow *	win,
		bool	assignLowThreshold,
		float	lowThres,
		bool	assignHighThreshold,
		float	highThres,
		CommandContext *	context = `0`
	)

Parameters

ref	pointer to a referential. 0 = new ref or no ref.
obj	objects to be assigned this referential
win	windows to be assigned this referential
refId	referential Id for created referential, used only if ref is null for loaded commands. If RefId < 0, the ID is not recorded into the unserializer. Both ref and refId null means no ref at all
unser	Unserializer pointer

◆ ~SetConnThresholdCommand()

virtual anatomist::SetConnThresholdCommand::~SetConnThresholdCommand ( )

virtual

Member Function Documentation

◆ doit()

virtual void anatomist::SetConnThresholdCommand::doit ( )

protectedvirtual

Do a command.

Implements anatomist::Command.

◆ name()

virtual std::string anatomist::SetConnThresholdCommand::name ( ) const

inlinevirtual

Return the unique name of a class of commands.

Implements anatomist::Command.

Definition at line 72 of file cSetConnThres.h.

◆ write()

virtual void anatomist::SetConnThresholdCommand::write	(	Tree &	com,
		Serializer *	ser
	)		const

virtual

Print the guts of a command into a Tree given as parent.

Reimplemented from anatomist::Command.

Friends And Related Function Documentation

◆ StdModule

friend class StdModule

friend

Definition at line 86 of file cSetConnThres.h.

The documentation for this class was generated from the following file:

anatomist/commands/cSetConnThres.h
