#include <anatomist/window3D/transformer.h>

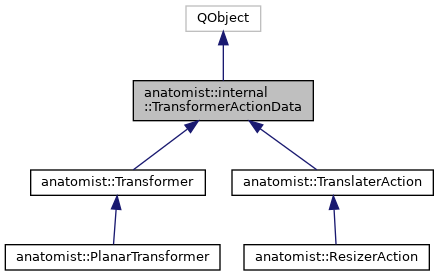

Inheritance diagram for anatomist::internal::TransformerActionData:

[legend]

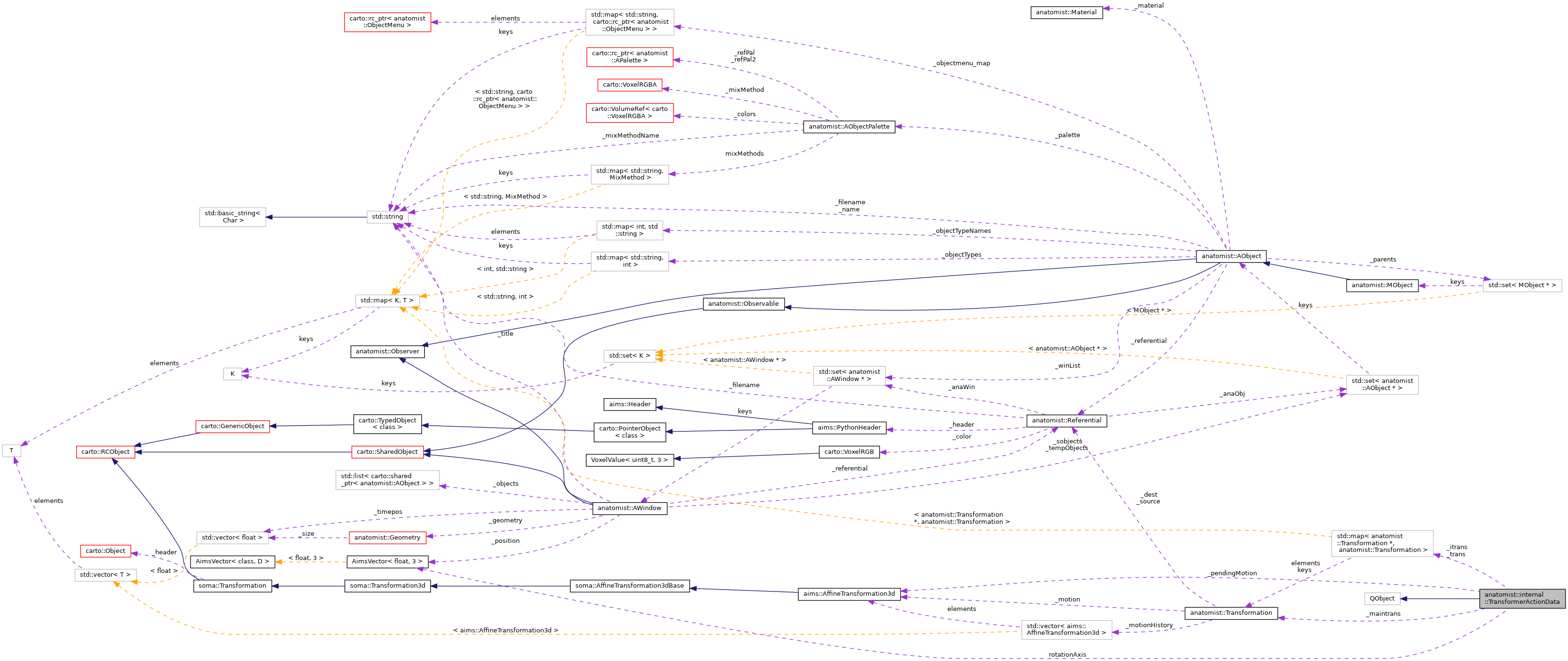

Collaboration diagram for anatomist::internal::TransformerActionData:

[legend]

Public Slots
virtual void	resetTransform ()

virtual void	resetRotation ()

virtual void	fromRefButtonClicked ()

virtual void	toRefButtonClicked ()

virtual void	invertTransformationClicked ()

virtual void	centerOnObjectsToggled (int state)

Signals
void	transformationChanged ()

Public Member Functions
	TransformerActionData ()

	TransformerActionData (const TransformerActionData &)

virtual	~TransformerActionData ()

Transformation *	mainTransformation () const

void	selectTransformations (AWindow *)

void	setMainTransformation (Transformation *t)

bool	isMainTransDirect () const

Referential *	mainSourceRef () const

Referential *	mainDestRef () const

void	setTransformData (const Transformation &t, bool absolute=false, bool addToHistory=false)

virtual aims::Quaternion	initialQuaternion ()=0

virtual View *	tadView ()=0

void	clearEditionFlags ()

bool	getCurrentMotion (Motion &)
	Gets the current motion. More...

void	emitTransformationChanged ()
	Emits the transformationChanged Qt signal. More...

void	undo ()
	Undoes last motion. More...

void	redo ()
	Redoes last motion. More...

bool	undoable ()
	Returns true if the transformation is undoable and false otherwise. More...

bool	redoable ()
	Returns true if the transformation is redoable and false otherwise. More...

Protected Slots
virtual void	rotationAngleEdited (const QString &)

virtual void	rotationScaleEdited (const QString &)

Protected Member Functions
virtual void	updateTemporaryObjects (const aims::Quaternion &rotation)=0

virtual void	updateGVInfo (const aims::Quaternion &q)=0

virtual void	matrixCellChanged (int row, int col, QTableWidget *twid)

virtual void	axisCellChanged (int row, int col, QTableWidget *twid)

virtual void	centerCellChanged (int row, int col, QTableWidget *twid)

virtual void	rotationAngleChanged (QLineEdit ledit, QComboBox unit)

virtual void	rotationScaleChanged (QLineEdit *ledit)

void	updatePendingMotion (const Motion &)
	Updates the pending motion. More...

const Motion &	pendingMotion () const
	Returns the pending motion. More...

void	transmitValidatedMotion (Motion motion, bool notify=false)
	Transmits a validated motion to the history. More...

Protected Attributes
Transformation *	_maintrans

std::map< Transformation *, Transformation >	_trans

std::map< Transformation *, Transformation >	_itrans

Point3df	rotationAxis

bool	_rotationAngleEdited

bool	_rotationScaleEdited

Motion	_pendingMotion

bool	_centerOnObjects

Detailed Description

Definition at line 57 of file transformer.h.

Constructor & Destructor Documentation

◆ TransformerActionData() [1/2]

anatomist::internal::TransformerActionData::TransformerActionData ( )

◆ TransformerActionData() [2/2]

anatomist::internal::TransformerActionData::TransformerActionData ( const TransformerActionData & )

◆ ~TransformerActionData()

virtual anatomist::internal::TransformerActionData::~TransformerActionData ( )

virtual

Member Function Documentation

◆ axisCellChanged()

virtual void anatomist::internal::TransformerActionData::axisCellChanged	(	int	row,
		int	col,
		QTableWidget *	twid
	)

protectedvirtual

◆ centerCellChanged()

virtual void anatomist::internal::TransformerActionData::centerCellChanged	(	int	row,
		int	col,
		QTableWidget *	twid
	)

protectedvirtual

◆ centerOnObjectsToggled

virtual void anatomist::internal::TransformerActionData::centerOnObjectsToggled ( int state )

virtualslot

References slots.

◆ clearEditionFlags()

void anatomist::internal::TransformerActionData::clearEditionFlags ( )

◆ emitTransformationChanged()

void anatomist::internal::TransformerActionData::emitTransformationChanged ( )

Emits the transformationChanged Qt signal.

◆ fromRefButtonClicked

virtual void anatomist::internal::TransformerActionData::fromRefButtonClicked ( )

virtualslot

◆ getCurrentMotion()

bool anatomist::internal::TransformerActionData::getCurrentMotion ( Motion & )

Gets the current motion.

◆ initialQuaternion()

virtual aims::Quaternion anatomist::internal::TransformerActionData::initialQuaternion ( )

pure virtual

Implemented in anatomist::PlanarTransformer, anatomist::TranslaterAction, and anatomist::Transformer.

◆ invertTransformationClicked

virtual void anatomist::internal::TransformerActionData::invertTransformationClicked ( )

virtualslot

◆ isMainTransDirect()

bool anatomist::internal::TransformerActionData::isMainTransDirect ( ) const

◆ mainDestRef()

Referential* anatomist::internal::TransformerActionData::mainDestRef ( ) const

◆ mainSourceRef()

Referential* anatomist::internal::TransformerActionData::mainSourceRef ( ) const

◆ mainTransformation()

Transformation* anatomist::internal::TransformerActionData::mainTransformation ( ) const

◆ matrixCellChanged()

virtual void anatomist::internal::TransformerActionData::matrixCellChanged	(	int	row,
		int	col,
		QTableWidget *	twid
	)

protectedvirtual

◆ pendingMotion()

const Motion& anatomist::internal::TransformerActionData::pendingMotion ( ) const

inlineprotected

Returns the pending motion.

Definition at line 127 of file transformer.h.

References _pendingMotion.

◆ redo()

void anatomist::internal::TransformerActionData::redo ( )

Redoes last motion.

◆ redoable()

bool anatomist::internal::TransformerActionData::redoable ( )

Returns true if the transformation is redoable and false otherwise.

◆ resetRotation

virtual void anatomist::internal::TransformerActionData::resetRotation ( )

virtualslot

◆ resetTransform

virtual void anatomist::internal::TransformerActionData::resetTransform ( )

virtualslot

◆ rotationAngleChanged()

virtual void anatomist::internal::TransformerActionData::rotationAngleChanged	(	QLineEdit *	ledit,
		QComboBox *	unit
	)

protectedvirtual

◆ rotationAngleEdited

virtual void anatomist::internal::TransformerActionData::rotationAngleEdited ( const QString & )

protectedvirtualslot

◆ rotationScaleChanged()

virtual void anatomist::internal::TransformerActionData::rotationScaleChanged ( QLineEdit * ledit )

protectedvirtual

◆ rotationScaleEdited

virtual void anatomist::internal::TransformerActionData::rotationScaleEdited ( const QString & )

protectedvirtualslot

◆ selectTransformations()

void anatomist::internal::TransformerActionData::selectTransformations ( AWindow * )

◆ setMainTransformation()

void anatomist::internal::TransformerActionData::setMainTransformation ( Transformation * t )

◆ setTransformData()

void anatomist::internal::TransformerActionData::setTransformData	(	const Transformation &	t,
		bool	absolute = `false`,
		bool	addToHistory = `false`
	)

◆ tadView()

virtual View* anatomist::internal::TransformerActionData::tadView ( )

pure virtual

Implemented in anatomist::TranslaterAction, and anatomist::Transformer.

◆ toRefButtonClicked

virtual void anatomist::internal::TransformerActionData::toRefButtonClicked ( )

virtualslot

◆ transformationChanged

void anatomist::internal::TransformerActionData::transformationChanged ( )

signal

◆ transmitValidatedMotion()

void anatomist::internal::TransformerActionData::transmitValidatedMotion	(	Motion	motion,
		bool	notify = `false`
	)

protected

Transmits a validated motion to the history.

◆ undo()

void anatomist::internal::TransformerActionData::undo ( )

Undoes last motion.

◆ undoable()

bool anatomist::internal::TransformerActionData::undoable ( )

Returns true if the transformation is undoable and false otherwise.

◆ updateGVInfo()

virtual void anatomist::internal::TransformerActionData::updateGVInfo ( const aims::Quaternion & q )

protectedpure virtual

Implemented in anatomist::TranslaterAction, and anatomist::Transformer.

◆ updatePendingMotion()

void anatomist::internal::TransformerActionData::updatePendingMotion ( const Motion & )

protected

Updates the pending motion.

◆ updateTemporaryObjects()

virtual void anatomist::internal::TransformerActionData::updateTemporaryObjects ( const aims::Quaternion & rotation )

protectedpure virtual

Implemented in anatomist::TranslaterAction, and anatomist::Transformer.

Member Data Documentation

◆ _centerOnObjects

bool anatomist::internal::TransformerActionData::_centerOnObjects

protected

Definition at line 114 of file transformer.h.

◆ _itrans

std::map<Transformation*, Transformation> anatomist::internal::TransformerActionData::_itrans

protected

Definition at line 109 of file transformer.h.

◆ _maintrans

Transformation* anatomist::internal::TransformerActionData::_maintrans

protected

Definition at line 107 of file transformer.h.

◆ _pendingMotion

Motion anatomist::internal::TransformerActionData::_pendingMotion

protected

Definition at line 113 of file transformer.h.

Referenced by pendingMotion().

◆ _rotationAngleEdited

bool anatomist::internal::TransformerActionData::_rotationAngleEdited

protected

Definition at line 111 of file transformer.h.

◆ _rotationScaleEdited

bool anatomist::internal::TransformerActionData::_rotationScaleEdited

protected

Definition at line 112 of file transformer.h.

◆ _trans

std::map<Transformation*, Transformation> anatomist::internal::TransformerActionData::_trans

protected

Definition at line 108 of file transformer.h.

◆ rotationAxis

Point3df anatomist::internal::TransformerActionData::rotationAxis

protected

Definition at line 110 of file transformer.h.

The documentation for this class was generated from the following file:

anatomist/window3D/transformer.h
