soma::VolumeFormatWriter< T > Class Template Reference

FormatWriter specialized for 4D Volume. More...

#include <cartodata/io/volumeformatwriter.h>

Inheritance diagram for soma::VolumeFormatWriter< T >:

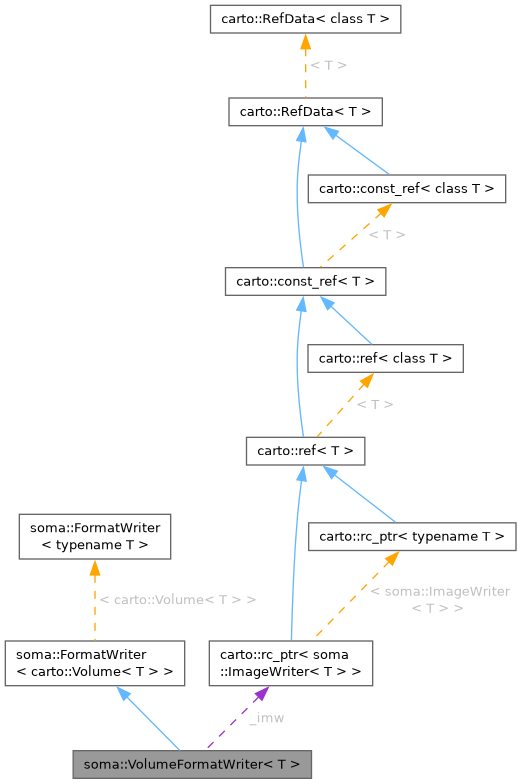

Collaboration diagram for soma::VolumeFormatWriter< T >:

Public Member Functions
virtual	~VolumeFormatWriter ()
virtual bool	filterProperties (carto::Object header, carto::Object options=carto::none())
	FormatWriter derived function It removes properties that must not be written.
virtual bool	write (const carto::Volume< T > &obj, carto::rc_ptr< DataSourceInfo > dsi, carto::Object options)
	FormatWriter derived function This method understands a volume and calls appropriate ImageWriter methods.
void	attach (carto::rc_ptr< ImageWriter< T > > imw)
	Linking to a ImageWriter Allows us to declare only once the ImageWriter.
Public Member Functions inherited from soma::FormatWriter< carto::Volume< T > >
virtual	~FormatWriter ()
virtual bool	write (const T &obj, carto::rc_ptr< DataSourceInfo > dsi, carto::Object options)=0

Protected Attributes
carto::rc_ptr< ImageWriter< T > >	_imw

Detailed Description

template<typename T>
class soma::VolumeFormatWriter< T >

FormatWriter specialized for 4D Volume.

A such VolumeFormatWriter needs to be linked to a specialized ImageWriter before being registered into a FormatDictionary.
It understands the Volume and detects specific cases (borders, partial reading, ...) before performing the writing through its linked ImageWriter.
Options may be given through the filename, at creation of the Reader.

See also

Reader FileUtil

Note

Options currently available are :

• (bool) partial_writing : if view should be partially written into an existing full volume.
• (bool) byte_swapping : if data should be byte swapped (GIS).
• (bool) ascii : if data should be written in ASCII (GIS).
• (int) ox, oy, oz, ot : top left position of partial frame in the output file.

Definition at line 78 of file volumeformatwriter.h.

Constructor & Destructor Documentation

~VolumeFormatWriter()

template<typename T>

soma::VolumeFormatWriter< T >::~VolumeFormatWriter ( )

virtual

Definition at line 69 of file volumeformatwriter_d.h.

Member Function Documentation

attach()

template<typename T>

void soma::VolumeFormatWriter< T >::attach

(

carto::rc_ptr< ImageWriter< T > >

imw

)

Linking to a ImageWriter Allows us to declare only once the ImageWriter.

Definition at line 384 of file volumeformatwriter_d.h.

References _imw.

Referenced by soma::VolumeRefFormatWriter< T >::write().

filterProperties()

template<typename T>

bool soma::VolumeFormatWriter< T >::filterProperties ( carto::Object header, carto::Object options = carto::none() )

virtual

FormatWriter derived function It removes properties that must not be written.

Implements soma::FormatWriter< carto::Volume< T > >.

Definition at line 77 of file volumeformatwriter_d.h.

References soma::MinfUtil::filter().

Referenced by write().

write()

template<typename T>

bool soma::VolumeFormatWriter< T >::write ( const carto::Volume< T > & obj, carto::rc_ptr< DataSourceInfo > dsi, carto::Object options )

virtual

FormatWriter derived function This method understands a volume and calls appropriate ImageWriter methods.

Definition at line 90 of file volumeformatwriter_d.h.

References _imw, carto::Volume< T >::allocatorContext(), soma::AllocatorContext::allocatorType(), carto::Volume< T >::at(), filterProperties(), carto::rc_ptr< typename T >::get(), carto::VolumeProxy< T >::getSize(), soma::AffineTransformationBase::inverse(), soma::AllocatorContext::isAllocated(), localMsg, carto::Volume< T >::posInRefVolume(), soma::AllocatorStrategy::ReadWriteMap, carto::Volume< T >::referential(), carto::Volume< T >::refVolume(), carto::Volume< T >::reorientedHeader(), carto::toString(), soma::Transformation::transformVector(), and carto::Object::value().

Referenced by soma::VolumeRefFormatWriter< T >::write().

Member Data Documentation

_imw

template<typename T>

carto::rc_ptr<ImageWriter<T> > soma::VolumeFormatWriter< T >::_imw

protected

Definition at line 100 of file volumeformatwriter.h.

Referenced by attach(), and write().

---

The documentation for this class was generated from the following files:

• cartodata/io/volumeformatwriter.h
• cartodata/io/volumeformatwriter_d.h
