volumeutil.h File Reference
#include <cartodata/volume/volumeref.h>#include <cartodata/volume/functional.h>#include <cartobase/type/datatypetraits.h>#include <cartobase/smart/rcptr.h>#include <cartobase/containers/nditerator.h>#include <algorithm>#include <exception>

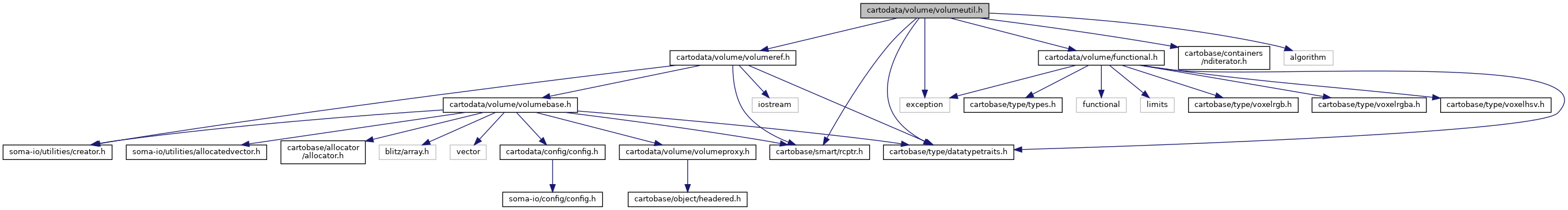

Include dependency graph for volumeutil.h:

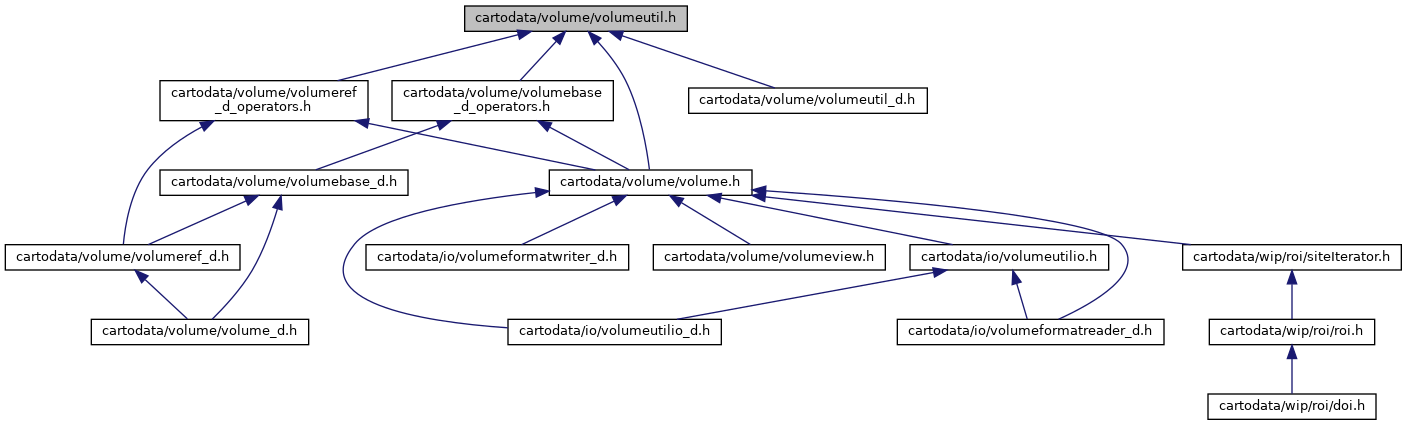

This graph shows which files directly or indirectly include this file:
Go to the source code of this file.
Classes | |
| struct | carto::internal::inSet< T, U > |
| struct | carto::internal::notInSet< T, U > |
| struct | carto::internal::changeIf< T, U > |
| struct | carto::internal::invMinMax< T > |
| class | carto::UnaryFromConstantBinaryFunctor< T, BinaryFunction > |
| Utility functor. More... | |
| class | carto::UnaryFromConstantBinaryFunctor2< T, BinaryFunction > |
| Utility functor. More... | |
| class | carto::Scaler< T, U > |
| Scaler functor. More... | |
| class | carto::Divider< T, U > |
| Divider functor. More... | |
| class | carto::VolumeUtilBase< T, Scalar > |
| class | carto::VolumeUtilBase< T, true > |
| Volume utilities base class for scalar types. More... | |
| class | carto::VolumeUtilBase< T, false > |
| Volume utilities base class for non scalar types. More... | |
| class | carto::VolumeUtil< T > |
| Volume utilities classes. More... | |
Namespaces | |
| carto | |
| carto::volumeutil | |
| carto::internal | |
Functions | |
| bool | carto::volumeutil::sameSize (const std::vector< int > &s1, const std::vector< int > &s2) |
| Used by the actual Volume and VolumeRef operators It allows to keep the loops in one place and to specialize for non arithmetic types. More... | |
| std::vector< int > | carto::volumeutil::maxSize (const std::vector< int > &s1, const std::vector< int > &s2) |
| return the largest dimensions between s1 and s2 More... | |
| std::vector< int > | carto::volumeutil::minSize (const std::vector< int > &s1, const std::vector< int > &s2) |
| return the smallest dimensions between s1 and s2 More... | |
| template<typename T > | |
| VolumeRef< T > | carto::matrix_product (const Volume< T > &v1, const Volume< T > &v2) |
| matrix product More... | |
| template<typename T > | |
| VolumeRef< T > | carto::matrix_product (const rc_ptr< Volume< T > > &v1, const rc_ptr< Volume< T > > &v2) |
| matrix product More... | |
| template<typename T > | |
| VolumeRef< T > | carto::transpose (const Volume< T > &v) |
| transpose More... | |
| template<typename T > | |
| VolumeRef< T > | carto::transpose (const rc_ptr< Volume< T > > &v, bool copy=false) |
| transpose. More... | |
| template<typename T > | |
| rc_ptr< Volume< T > > | carto::diag (const rc_ptr< Volume< T > > &thing) |
| Build a diagonal matrix from a line (1D) vector. More... | |
| template<typename T > | |
| rc_ptr< Volume< T > > | carto::undiag (const rc_ptr< Volume< T > > &thing) |
| template<typename T > | |
| bool | carto::isSameVolumeSize (const Volume< T > &v1, const Volume< T > &v2) |
| template<typename T > | |
| bool | carto::isSameVolumeSize (const rc_ptr< Volume< T > > &v1, const rc_ptr< Volume< T > > &v2) |
| template<typename T , typename U , typename OUTP , typename BinaryFunction > | |
| Volume< OUTP > & | carto::volumeutil::applyTowards (const T &cst1, const Volume< U > &vol2, Volume< OUTP > &dst, BinaryFunction func) |
| template<typename T > | |
| void | carto::sort (Volume< T > &thing, bool ascending=true) |
| template<typename T > | |
| void | carto::sort (rc_ptr< Volume< T > > &thing, bool ascending=true) |
| template<typename T , typename UnaryFunction > | |
| Volume< typename UnaryFunction::result_type > | carto::volumeutil::apply (const Volume< T > &vol, UnaryFunction func) |
| Apply a function to all the elements of a volume (create output version) More... | |
| template<typename T , typename U , typename BinaryFunction > | |
| Volume< typename BinaryFunction::result_type > | carto::volumeutil::apply (const Volume< T > &vol1, const Volume< U > &vol2, BinaryFunction func) |
| template<typename T , typename UnaryFunction > | |
| rc_ptr< Volume< typename UnaryFunction::result_type > > | carto::volumeutil::apply (const rc_ptr< Volume< T > > &vol, UnaryFunction func) |
| template<typename T , typename U , typename BinaryFunction > | |
| rc_ptr< Volume< typename BinaryFunction::result_type > > | carto::volumeutil::apply (const rc_ptr< Volume< T > > &vol1, const Volume< U > &vol2, BinaryFunction func) |
| template<typename T , typename UnaryFunction > | |
| Volume< T > & | carto::volumeutil::selfApply (Volume< T > &vol, UnaryFunction func) |
| Apply a function to all the elements of a volume (in place version) More... | |
| template<typename T , typename U , typename BinaryFunction > | |
| Volume< T > & | carto::volumeutil::selfApply (Volume< T > &vol1, const Volume< U > &vol2, BinaryFunction func) |
| template<typename T , typename UnaryFunction > | |
| rc_ptr< Volume< T > > & | carto::volumeutil::selfApply (rc_ptr< Volume< T > > &vol, UnaryFunction func) |
| template<typename T , typename U , typename BinaryFunction > | |
| rc_ptr< Volume< T > > & | carto::volumeutil::selfApply (rc_ptr< Volume< T > > &vol1, const Volume< U > &vol2, BinaryFunction func) |
| template<typename T , typename OUTP , typename UnaryFunction > | |
| Volume< OUTP > & | carto::volumeutil::applyTowards (const Volume< T > &vol, Volume< OUTP > &dst, UnaryFunction func) |
| Apply a function to all the elements of a volume (already allocated output version) More... | |
| template<typename T , typename OUTP , typename UnaryFunction > | |
| Volume< OUTP > & | carto::volumeutil::applyTowards (const T &cst, Volume< OUTP > &dst, UnaryFunction func) |
| template<typename T , typename U , typename OUTP , typename BinaryFunction > | |
| Volume< OUTP > & | carto::volumeutil::applyTowards (const Volume< T > &vol1, const Volume< U > &vol2, Volume< OUTP > &dst, BinaryFunction func) |
| template<typename T , typename U , typename OUTP , typename BinaryFunction > | |
| Volume< OUTP > & | carto::volumeutil::applyTowards (const Volume< T > &vol1, const U &cst2, Volume< OUTP > &dst, BinaryFunction func) |
| template<typename OUTP , typename T , typename BinaryFunction > | |
| OUTP | carto::volumeutil::accumulate (const Volume< T > &vol, BinaryFunction func, OUTP initial) |
| Accumulation over a volume. More... | |
| template<typename OUTP , typename T , typename BinaryFunction > | |
| OUTP | carto::volumeutil::accumulate (const rc_ptr< Volume< T > > &vol, BinaryFunction func, OUTP initial) |
| template<typename T > | |
| void | carto::transfer (const Volume< T > &src, Volume< T > &dst) |
| Transfer data from an allocated volume to another Allocated sizes must be equal (same number of voxels) More... | |
| template<typename T > | |
| void | carto::transfer (const rc_ptr< Volume< T > > &src, rc_ptr< Volume< T > > &dst) |
| template<typename OUTP , typename INP > | |
| void | carto::transfer (const Volume< INP > &src, Volume< OUTP > &dst) |
| template<typename OUTP , typename INP > | |
| void | carto::transfer (const rc_ptr< Volume< INP > > &src, rc_ptr< Volume< OUTP > > &dst) |
| template<typename T > | |
| Volume< T > | carto::deepcopy (const Volume< T > &src, const std::vector< int > &size=std::vector< int >()) |
| Performs a copy of the data (not only a reference copy) The whole view hierarchy is fully duplicated. More... | |
| template<typename T > | |
| rc_ptr< Volume< T > > | carto::deepcopy (const rc_ptr< Volume< T > > &src, const std::vector< int > &size=std::vector< int >()) |
| template<typename OUTP , typename INP > | |
| Volume< OUTP > | carto::deepcopy (const Volume< INP > &src, const std::vector< int > &size=std::vector< int >()) |
| template<typename OUTP , typename INP > | |
| rc_ptr< Volume< OUTP > > | carto::deepcopy (const rc_ptr< Volume< INP > > &src, const std::vector< int > &size=std::vector< int >()) |
| template<typename T > | |
| Volume< T > | carto::copy (const Volume< T > &src) |
| Performs a copy of the data (not only a reference copy) Only the data inside the view is copied. More... | |
| template<typename T > | |
| rc_ptr< Volume< T > > | carto::copy (const rc_ptr< Volume< T > > &src) |
| template<typename OUTP , typename INP > | |
| Volume< OUTP > | carto::copy (const Volume< INP > &src) |
| template<typename OUTP , typename INP > | |
| rc_ptr< Volume< OUTP > > | carto::copy (const rc_ptr< Volume< INP > > &src) |
| template<typename T > | |
| Volume< T > | carto::copyStructure (const Volume< T > &src) |
| Performs a copy of the view structure without transfering the data. More... | |
| template<typename T > | |
| rc_ptr< Volume< T > > | carto::copyStructure (const rc_ptr< Volume< T > > &src) |
| template<typename OUTP , typename INP > | |
| Volume< OUTP > | carto::copyStructure (const Volume< INP > &src) |
| template<typename OUTP , typename INP > | |
| rc_ptr< Volume< OUTP > > | carto::copyStructure (const rc_ptr< Volume< INP > > &src) |
| template<typename T > | |
| T | carto::min (const Volume< T > &vol) |
| Returns the minimum value of the volume. More... | |
| template<typename T > | |
| T | carto::min (const rc_ptr< Volume< T > > &vol) |
| template<typename T > | |
| T | carto::max (const Volume< T > &vol) |
| Returns the maximum value of the volume. More... | |
| template<typename T > | |
| T | carto::max (const rc_ptr< Volume< T > > &vol) |
| template<typename T > | |
| DataTypeTraits< T >::LongType | carto::sum (const Volume< T > &vol) |
| Returns the sum of the volume values. More... | |
| template<typename OUTP , typename T > | |
| OUTP | carto::sum (const Volume< T > &vol) |
| template<typename T > | |
| DataTypeTraits< T >::LongType | carto::sum (const rc_ptr< Volume< T > > &vol) |
| template<typename OUTP , typename T > | |
| OUTP | carto::sum (const rc_ptr< Volume< T > > &vol) |
| template<typename T > | |
| bool | carto::all (const Volume< T > &vol) |
| Returns true if all values compare to true. More... | |
| template<typename T > | |
| bool | carto::all (const rc_ptr< Volume< T > > &vol) |
| template<typename T > | |
| bool | carto::any (const Volume< T > &vol) |
| Returns true if at least one value compares to true. More... | |
| template<typename T > | |
| bool | carto::any (const rc_ptr< Volume< T > > &vol) |
| template<typename T , typename U > | |
| Volume< bool > | carto::valuesIn (const Volume< T > &volume, const U &set) |
| Find values contained in a set. More... | |
| template<typename T , typename U > | |
| rc_ptr< Volume< bool > > | carto::valuesIn (const rc_ptr< Volume< T > > &volume, const U &set) |
| template<typename T , typename U > | |
| Volume< bool > | carto::valuesNotIn (const Volume< T > &volume, const U &set) |
| Find values not contained in a set. More... | |
| template<typename T , typename U > | |
| rc_ptr< Volume< bool > > | carto::valuesNotIn (const rc_ptr< Volume< T > > &volume, const U &set) |
| template<typename T , typename U > | |
| void | carto::conditionalSet (Volume< T > &volume, const Volume< U > &condition, const T &value) |
| Conditionally fill a volume. More... | |
| template<typename T , typename U > | |
| void | carto::conditionalSet (rc_ptr< Volume< T > > &volume, const rc_ptr< Volume< U > > &condition, const T &value) |
| template<typename T > | |
| Volume< T > | carto::invertMinMax (const Volume< T > &volume) |
| Invert a volume between its min and max values. More... | |
| template<typename T > | |
| rc_ptr< Volume< T > > | carto::invertMinMax (const rc_ptr< Volume< T > > &volume) |
| template<typename T > | |
| void | carto::setBorders (Volume< T > &volume, const typename Volume< T >::Position4Di &top, const typename Volume< T >::Position4Di &bottom=typename Volume< T >::Position4Di(-1, -1, -1, -1)) |
| Set border width. More... | |
| template<typename T > | |
| void | carto::setBorders (rc_ptr< Volume< T > > &volume, const typename Volume< T >::Position4Di &top, const typename Volume< T >::Position4Di &bottom=typename Volume< T >::Position4Di(-1, -1, -1, -1)) |
| The actual pointed volume will see its structure change. More... | |
| template<typename T > | |
| void | carto::setMinBorders (Volume< T > &volume, const typename Volume< T >::Position4Di &top, const typename Volume< T >::Position4Di &bottom=typename Volume< T >::Position4Di(-1, -1, -1, -1)) |
| Set border width. More... | |
| template<typename T > | |
| void | carto::setMinBorders (rc_ptr< Volume< T > > &volume, const typename Volume< T >::Position4Di &top, const typename Volume< T >::Position4Di &bottom=typename Volume< T >::Position4Di(-1, -1, -1, -1)) |
| The actual pointed volume will see its structure change. More... | |
