aims::FfdTransformation Class Referenceabstract

FFD vector field deformation transform. More...

#include <aims/registration/ffd.h>

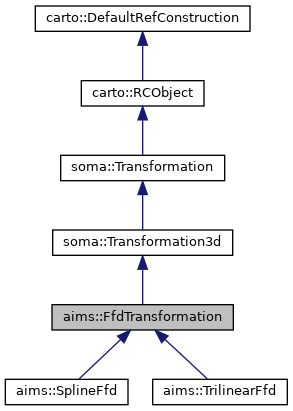

Inheritance diagram for aims::FfdTransformation:
Inheritance graph
[legend]

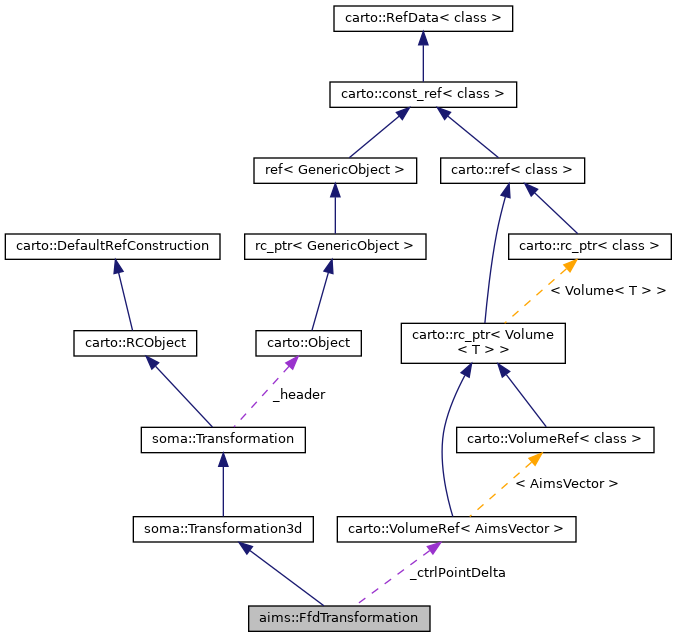

Collaboration diagram for aims::FfdTransformation:
Collaboration graph
[legend]

Public Member Functions

 FfdTransformation (int dimX=0, int dimY=1, int dimZ=1, float sizeX=1., float sizeY=1., float sizeZ=1.)

template<typename T >
 FfdTransformation (int dimX, int dimY, int dimZ, const carto::rc_ptr< carto::Volume< T > > &test_volume)

template<typename T >
 FfdTransformation (int dimX, int dimY, int dimZ, const carto::Volume< T > &test_volume)

 FfdTransformation (const FfdTransformation &other)

 FfdTransformation (const carto::rc_ptr< carto::Volume< Point3df > > &other)

FfdTransformation & operator= (const FfdTransformation &other)

 operator const carto::VolumeRef< Point3df > & () const

 operator carto::VolumeRef< Point3df > & ()

 operator const carto::rc_ptr< carto::Volume< Point3df > > & () const

 operator carto::rc_ptr< carto::Volume< Point3df > > & ()

carto::rc_ptr< carto::Volume< Point3df > > & ctrlDeformations ()

bool isIdentity () const CARTO_OVERRIDE
 Always false, because testing for identity is expensive. More...

Point3df getCtrlKnot (int nx, int ny, int nz) const

void updateCtrlKnot (int nx, int ny, int nz, const Point3df &newCtrlKnot)

void updateAllCtrlKnot (const carto::rc_ptr< carto::Volume< Point3df > > &newCtrlKnotGrid)

void updateAllCtrlKnotFromDeformation (const carto::rc_ptr< carto::Volume< Point3df > > &newDeformationGrid)

void increaseResolution (const Point3d &addKnots)

Point3dd deformation (const Point3dd &p_mm) const

Point3dd ffdCoord (const Point3dd &p_mm) const

int dimX () const

int dimY () const

int dimZ () const

int getSizeX () const

int getSizeY () const

int getSizeZ () const

std::vector< int > getSize () const

float sizeX () const

float sizeY () const

float sizeZ () const

std::vector< float > getVoxelSize () const

bool isFlat (int i) const

bool isXFlat () const

bool isYFlat () const

bool isZFlat () const

virtual void updateDimensions ()

void printControlPointsGrid () const

void writeDebugCtrlKnots (const std::string &filename) const

void writeDebugDeformations (const std::string &filename, int dimX, int dimY, int dimZ, float sizeX, float sizeY, float sizeZ) const

void write (const std::string &filename) const

- Public Member Functions inherited from soma::Transformation3d
virtual ~Transformation3d ()

Point3dd transform (double x, double y, double z) const

Point3dd transform (const Point3dd &pos) const

Point3df transform (const Point3df &dir) const

Point3df transform (float x, float y, float z) const

Point3d transform (const Point3d &p) const

virtual bool invertible () const

virtual std::unique_ptr< Transformation3d > getInverse () const

- Public Member Functions inherited from soma::Transformation
virtual ~Transformation ()

carto::Object header ()

const carto::Object header () const

void setHeader (carto::Object ph)

- Public Member Functions inherited from carto::RCObject
 RCObject ()

 RCObject (const RCObject &)

RCObject & operator= (const RCObject &)

virtual ~RCObject ()


Protected Member Functions

Point3dd splineVoxToMm (const Point3dd &p) const

Point3dd mmToSplineVox (const Point3dd &p) const

void updateGridResolution (const carto::rc_ptr< carto::Volume< Point3df > > &newGrid)

virtual Point3dd _deformation (const Point3dd &p_mm) const =0

- Protected Member Functions inherited from soma::Transformation3d
 Transformation3d ()

virtual Point3dd transformDouble (double x, double y, double z) const=0

virtual Point3dd transformPoint3dd (const Point3dd &pos) const

virtual Point3df transformPoint3df (const Point3df &dir) const

virtual Point3d transformPoint3d (const Point3d &p) const

virtual Point3df transformFloat (float x, float y, float z) const

- Protected Member Functions inherited from soma::Transformation
 Transformation ()


Protected Attributes

carto::VolumeRef< Point3df > _ctrlPointDelta

int _dimx

int _dimy

int _dimz

float _vsx

float _vsy

float _vsz

bool _flatx

bool _flaty

bool _flatz

- Protected Attributes inherited from soma::Transformation
carto::Object _header


Additional Inherited Members

- Public Types inherited from carto::RCObject
typedef int RefCounterType


Detailed Description

FFD vector field deformation transform.

Free Form Deformation is the registration technique used to build the vector fields. This class is dedicated to the application of the vector field deformation to transform coordinates.

Vector fields are stored in volumes VolumeRef<Point3df>.

Definition at line 37 of file ffd.h.

Constructor & Destructor Documentation

◆ FfdTransformation() [1/5]

aims::FfdTransformation::FfdTransformation ( int  dimX = 0,
int  dimY = 1,
int  dimZ = 1,
float  sizeX = 1.,
float  sizeY = 1.,
float  sizeZ = 1.
)

◆ FfdTransformation() [2/5]

template<typename T >
aims::FfdTransformation::FfdTransformation ( int  dimX,
int  dimY,
int  dimZ,
const carto::rc_ptr< carto::Volume< T > > &  test_volume
)
inline

Definition at line 143 of file ffd.h.

References _ctrlPointDelta, _flatx, _flaty, _flatz, dimX(), dimY(), dimZ(), and updateDimensions().

◆ FfdTransformation() [3/5]

template<typename T >
aims::FfdTransformation::FfdTransformation ( int  dimX,
int  dimY,
int  dimZ,
const carto::Volume< T > &  test_volume
)
inline

Definition at line 161 of file ffd.h.

References _ctrlPointDelta, _flatx, _flaty, _flatz, dimX(), dimY(), dimZ(), carto::VolumeProxy< class >::getSizeX(), carto::VolumeProxy< class >::getSizeY(), carto::VolumeProxy< class >::getSizeZ(), carto::VolumeProxy< class >::getVoxelSize(), and updateDimensions().

◆ FfdTransformation() [4/5]

aims::FfdTransformation::FfdTransformation ( const FfdTransformation &  other)

◆ FfdTransformation() [5/5]

aims::FfdTransformation::FfdTransformation ( const carto::rc_ptr< carto::Volume< Point3df > > &  other)

Member Function Documentation

◆ _deformation()

virtual Point3dd aims::FfdTransformation::_deformation ( const Point3dd &  p_mm) const
protectedpure virtual

◆ ctrlDeformations()

carto::rc_ptr<carto::Volume<Point3df> >& aims::FfdTransformation::ctrlDeformations ( )
inline

Definition at line 61 of file ffd.h.

References _ctrlPointDelta.

◆ deformation()

Point3dd aims::FfdTransformation::deformation ( const Point3dd &  p_mm) const

◆ dimX()

int aims::FfdTransformation::dimX ( ) const
inline

Definition at line 86 of file ffd.h.

References _dimx.

Referenced by FfdTransformation().

◆ dimY()

int aims::FfdTransformation::dimY ( ) const
inline

Definition at line 87 of file ffd.h.

References _dimy.

Referenced by FfdTransformation().

◆ dimZ()

int aims::FfdTransformation::dimZ ( ) const
inline

Definition at line 88 of file ffd.h.

References _dimz.

Referenced by FfdTransformation().

◆ ffdCoord()

Point3dd aims::FfdTransformation::ffdCoord ( const Point3dd &  p_mm) const
inline

Definition at line 82 of file ffd.h.

References mmToSplineVox().

◆ getCtrlKnot()

Point3df aims::FfdTransformation::getCtrlKnot ( int  nx,
int  ny,
int  nz
) const

◆ getSize()

std::vector<int> aims::FfdTransformation::getSize ( ) const
inline

Definition at line 92 of file ffd.h.

References _dimx, _dimy, and _dimz.

◆ getSizeX()

int aims::FfdTransformation::getSizeX ( ) const
inline

Definition at line 89 of file ffd.h.

References _dimx.

◆ getSizeY()

int aims::FfdTransformation::getSizeY ( ) const
inline

Definition at line 90 of file ffd.h.

References _dimy.

◆ getSizeZ()

int aims::FfdTransformation::getSizeZ ( ) const
inline

Definition at line 91 of file ffd.h.

References _dimz.

◆ getVoxelSize()

std::vector<float> aims::FfdTransformation::getVoxelSize ( ) const
inline

Definition at line 98 of file ffd.h.

References _vsx, _vsy, and _vsz.

◆ increaseResolution()

void aims::FfdTransformation::increaseResolution ( const Point3d &  addKnots)

◆ isFlat()

bool aims::FfdTransformation::isFlat ( int  i) const
inline

Definition at line 101 of file ffd.h.

References _flatx, _flaty, and _flatz.

◆ isIdentity()

bool aims::FfdTransformation::isIdentity ( ) const
inlinevirtual

Always false, because testing for identity is expensive.

Reimplemented from soma::Transformation.

Definition at line 65 of file ffd.h.

◆ isXFlat()

bool aims::FfdTransformation::isXFlat ( ) const
inline

Definition at line 111 of file ffd.h.

References _flatx.

◆ isYFlat()

bool aims::FfdTransformation::isYFlat ( ) const
inline

Definition at line 112 of file ffd.h.

References _flaty.

◆ isZFlat()

bool aims::FfdTransformation::isZFlat ( ) const
inline

Definition at line 113 of file ffd.h.

References _flatz.

◆ mmToSplineVox()

Point3dd aims::FfdTransformation::mmToSplineVox ( const Point3dd &  p) const
inlineprotected

Definition at line 186 of file ffd.h.

References sizeX(), sizeY(), and sizeZ().

Referenced by ffdCoord().

◆ operator carto::rc_ptr< carto::Volume< Point3df > > &()

aims::FfdTransformation::operator carto::rc_ptr< carto::Volume< Point3df > > & ( )
inline

Definition at line 59 of file ffd.h.

References _ctrlPointDelta.

◆ operator carto::VolumeRef< Point3df > &()

aims::FfdTransformation::operator carto::VolumeRef< Point3df > & ( )
inline

Definition at line 55 of file ffd.h.

References _ctrlPointDelta.

◆ operator const carto::rc_ptr< carto::Volume< Point3df > > &()

aims::FfdTransformation::operator const carto::rc_ptr< carto::Volume< Point3df > > & ( ) const
inline

Definition at line 57 of file ffd.h.

References _ctrlPointDelta.

◆ operator const carto::VolumeRef< Point3df > &()

aims::FfdTransformation::operator const carto::VolumeRef< Point3df > & ( ) const
inline

Definition at line 53 of file ffd.h.

References _ctrlPointDelta.

◆ operator=()

FfdTransformation& aims::FfdTransformation::operator= ( const FfdTransformation &  other)

◆ printControlPointsGrid()

void aims::FfdTransformation::printControlPointsGrid ( ) const

◆ sizeX()

float aims::FfdTransformation::sizeX ( ) const
inline

Definition at line 95 of file ffd.h.

References _vsx.

Referenced by mmToSplineVox(), and splineVoxToMm().

◆ sizeY()

float aims::FfdTransformation::sizeY ( ) const
inline

Definition at line 96 of file ffd.h.

References _vsy.

Referenced by mmToSplineVox(), and splineVoxToMm().

◆ sizeZ()

float aims::FfdTransformation::sizeZ ( ) const
inline

Definition at line 97 of file ffd.h.

References _vsz.

Referenced by mmToSplineVox(), and splineVoxToMm().

◆ splineVoxToMm()

Point3dd aims::FfdTransformation::splineVoxToMm ( const Point3dd &  p) const
inlineprotected

Definition at line 178 of file ffd.h.

References sizeX(), sizeY(), and sizeZ().

◆ updateAllCtrlKnot()

void aims::FfdTransformation::updateAllCtrlKnot ( const carto::rc_ptr< carto::Volume< Point3df > > &  newCtrlKnotGrid)

◆ updateAllCtrlKnotFromDeformation()

void aims::FfdTransformation::updateAllCtrlKnotFromDeformation ( const carto::rc_ptr< carto::Volume< Point3df > > &  newDeformationGrid)

◆ updateCtrlKnot()

void aims::FfdTransformation::updateCtrlKnot ( int  nx,
int  ny,
int  nz,
const Point3df &  newCtrlKnot
)

◆ updateDimensions()

virtual void aims::FfdTransformation::updateDimensions ( )
virtual

Reimplemented in aims::SplineFfd.

Referenced by FfdTransformation().

◆ updateGridResolution()

void aims::FfdTransformation::updateGridResolution ( const carto::rc_ptr< carto::Volume< Point3df > > &  newGrid)
protected

◆ write()

void aims::FfdTransformation::write ( const std::string &  filename) const

◆ writeDebugCtrlKnots()

void aims::FfdTransformation::writeDebugCtrlKnots ( const std::string &  filename) const

◆ writeDebugDeformations()

void aims::FfdTransformation::writeDebugDeformations ( const std::string &  filename,
int  dimX,
int  dimY,
int  dimZ,
float  sizeX,
float  sizeY,
float  sizeZ
) const

Member Data Documentation

◆ _ctrlPointDelta

carto::VolumeRef<Point3df> aims::FfdTransformation::_ctrlPointDelta
protected

Definition at line 135 of file ffd.h.

Referenced by ctrlDeformations(), FfdTransformation(), operator carto::rc_ptr< carto::Volume< Point3df > > &(), operator carto::VolumeRef< Point3df > &(), operator const carto::rc_ptr< carto::Volume< Point3df > > &(), and operator const carto::VolumeRef< Point3df > &().

◆ _dimx

int aims::FfdTransformation::_dimx
protected

Definition at line 136 of file ffd.h.

Referenced by dimX(), getSize(), and getSizeX().

◆ _dimy

int aims::FfdTransformation::_dimy
protected

Definition at line 136 of file ffd.h.

Referenced by dimY(), getSize(), and getSizeY().

◆ _dimz

int aims::FfdTransformation::_dimz
protected

Definition at line 136 of file ffd.h.

Referenced by dimZ(), getSize(), and getSizeZ().

◆ _flatx

bool aims::FfdTransformation::_flatx
protected

Definition at line 138 of file ffd.h.

Referenced by FfdTransformation(), isFlat(), and isXFlat().

◆ _flaty

bool aims::FfdTransformation::_flaty
protected

Definition at line 138 of file ffd.h.

Referenced by FfdTransformation(), isFlat(), and isYFlat().

◆ _flatz

bool aims::FfdTransformation::_flatz
protected

Definition at line 138 of file ffd.h.

Referenced by FfdTransformation(), isFlat(), and isZFlat().

◆ _vsx

float aims::FfdTransformation::_vsx
protected

Definition at line 137 of file ffd.h.

Referenced by getVoxelSize(), and sizeX().

◆ _vsy

float aims::FfdTransformation::_vsy
protected

Definition at line 137 of file ffd.h.

Referenced by getVoxelSize(), and sizeY().

◆ _vsz

float aims::FfdTransformation::_vsz
protected

Definition at line 137 of file ffd.h.

Referenced by getVoxelSize(), and sizeZ().

The documentation for this class was generated from the following file:
