Volume graphs are a graph implementation specifically designed to represent volumes as graphs (vertices are the voxels, and edges are a chosen connectivity). More...

#include <bioprocessing/graph/volumegraph.h>

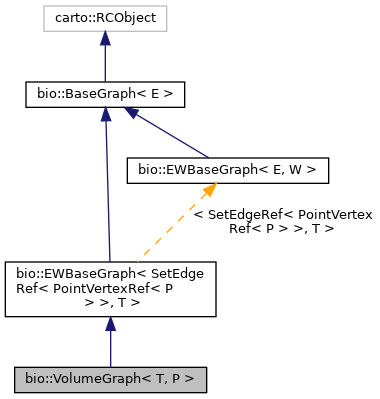

Inheritance diagram for bio::VolumeGraph< T, P >:

[legend]

Collaboration diagram for bio::VolumeGraph< T, P >:

[legend]

Classes
class	edge_const_iterator
	Iterator on the edges of a volume graph. More...

class	edge_iterator

class	vertex_const_iterator
	Iterator on the vertices of a volume graph. More...

class	vertex_iterator

Public Types
typedef T	Type
	Value type. More...

typedef P	Point
	Point type. More...

typedef Base::Edge	Edge
	Usable edge type (RC) More...

typedef Base::Vertex	Vertex
	Usable vertex type (RC) More...

typedef Base::Weight	Weight
	Weight type. More...

typedef VolumeGraphRef< T, P >	Graph
	Usable graph type (RC) More...

typedef VolumeGraphRef< T, P >	Ref
	Reference type. More...

typedef carto::VolumeRef< Type >	Volume
	Volume type. More...

Public Types inherited from bio::EWBaseGraph< SetEdgeRef< PointVertexRef< P > >, T >
typedef T	Weight
	Weight type. More...

typedef Base::Edge	Edge
	Usable edge type. More...

typedef Base::Vertex	Vertex
	Usable vertex type. More...

typedef EWBaseGraphRef< SetEdgeRef< PointVertexRef< P > >, T >	Graph
	Usable graph type. More...

typedef EWBaseGraphRef< SetEdgeRef< PointVertexRef< P > >, T >	Ref
	Reference type. More...

Public Types inherited from bio::BaseGraph< E >
typedef E	Edge
	Usable edge type. More...

typedef Edge::Vertex	Vertex
	Usable vertex type. More...

typedef BaseGraphRef< E >	Graph
	Usable graph type. More...

typedef BaseGraphRef< E >	Ref
	Reference type. More...

Public Member Functions
	VolumeGraph (int sx=1, int sy=1, int sz=1, int st=1, const aims::strel::Connectivity &conn=aims::strel::Connectivity6XYZ())
	Constructor from volume dimensions and connectivity This initializes the graph so that it represents a volume of size sx * sy * sz * st, with edges representing a connectivity `conn`. More...

	VolumeGraph (const Volume &in, const aims::strel::Connectivity &conn=aims::strel::Connectivity6XYZ())
	Constructor from an exisiting volume and connectivity The volume is not copied, a reference to it is made. More...

virtual	~VolumeGraph ()

vertex_const_iterator	beginVertex () const
	Iterator on all edges (This::Edge) More...

vertex_const_iterator	endVertex () const
	Iterator on all vertices. More...

vertex_iterator	beginVertex ()
	Iterator on all vertices. More...

vertex_iterator	endVertex ()
	Iterator on all vertices. More...

edge_const_iterator	beginEdge (const Vertex &v) const
	Iterator on the edges containing a given vertex. More...

edge_const_iterator	endEdge (const Vertex &v) const
	Iterator on the edges containing a given vertex. More...

edge_iterator	beginEdge (const Vertex &v)
	Iterator on the edges containing a given vertex. More...

edge_iterator	endEdge (const Vertex &v)
	Iterator on the edges containing a given vertex. More...

edge_const_iterator	beginEdge () const

edge_const_iterator	endEdge () const

edge_iterator	beginEdge ()

edge_iterator	endEdge ()

void	insert (Vertex v)
	Insertion of a new vertex (undefined for now) More...

void	insert (Edge e)
	Insertion of a new edge (undefined for now) More...

bool	contains (const Vertex &v) const
	True if `v` is in the graph. More...

bool	contains (const Edge &e) const
	True if `e` is in the graph. More...

bool	empty () const
	True if the graph contains no edges and vertices. More...

void	clear ()
	Clear the graph from all edges and vertices. More...

void	insert (Edge e, Weight w=(Weight) 0)
	Insertion of a weighted edge (undefined for now) More...

Weight	weight (const Edge &e)
	Returns the weight of `e`. More...

Weight	weight (const Edge &e) const
	Returns the weight of `e`. More...

bool	isAdjacent (const Vertex &x, const Vertex &y) const
	Are x and y adjacent in the graph ? More...

bool	isLinked (const Vertex &x, const Vertex &y) const
	Are x and y linked in the graph ? More...

bool	isSubGraph (const Graph &g) const
	Is g a sub-graph os this graph ? (Meaning all its edges and vertices are included in this graph) More...

bool	isConnectedComponent (const Graph &g) const
	Is g a connected component in this graph (Meaning all its vertices are linked) More...

bool	isAdjacentTo (const Vertex &v, const Graph &g) const
	Is v adjacent to g ? (Meaning v isn't in g and there exist an edge in this graph that contains v and a vertex of g) More...

bool	isAdjacentFrom (const Vertex &v, const Graph &g) const

Graph	getConnectedComponent (Vertex &v)
	Returns the (one and only) connected component of this graph containing v. More...

Weight	Fm (const Vertex &v) const
	Returns the minimum weight of all edges containing v. More...

void	setDimensions (int sx=1, int sy=1, int sz=1, int st=1)
	Sets the dimensions of the underlying volume. More...

void	setDimensions (const Point &dim)
	Sets the dimensions of the underlying volume. More...

void	setHeader (float vx=1., float vy=1., float vz=1., float vt=1.)
	Sets the header of the underlying volume. More...

void	setHeader (const Point4df &vs)
	Sets the header of the underlying volume. More...

void	setWeightMethod (Weight(*weight)(const Type &, const Type &))
	Sets the weight method. More...

template<typename M >
void	mask (const carto::VolumeRef< M > &mask)
	Mask the underlying volume using mask. More...

T &	access (const Point &p)
	Access the volume at voxel p. More...

const T &	access (const Point &p) const
	Access the volume at voxel p. More...

bool	inside (const Point &p) const
	True if p is a voxel from the underlying volume. More...

Public Member Functions inherited from bio::EWBaseGraph< SetEdgeRef< PointVertexRef< P > >, T >
virtual	~EWBaseGraph ()

virtual void	insert (Edge e, Weight w=(Weight) 0)

virtual Weight	weight (const Graph &g) const

virtual bool	isMinimum (const Graph &g) const

virtual bool	isMinimumSpanningForestRelativeTo (const Graph &h, const Graph &g) const

virtual bool	isMinimumSpanningTree (const Graph &g) const

bool	isDescending (const Path &p) const

bool	isPathofSteepestdescent (const Path &p) const

bool	isWatershedCut (const EdgeSet &s) const

bool	isBasinCut (const EdgeSet &es) const

virtual Graph	getMinOfF () const

T	Fm (const G &thisg, const Vertex &v)

Public Member Functions inherited from bio::BaseGraph< E >
virtual	~BaseGraph ()

virtual bool	operator== (const This &other) const

virtual bool	operator!= (const This &other) const

virtual bool	operator> (const This &other) const

virtual bool	operator< (const This &other) const

virtual bool	operator>= (const This &other) const

virtual bool	operator<= (const This &other) const

virtual bool	operator= (const This &other)

virtual bool	isAdjacent (const Edge &e) const

virtual bool	isLinked (const Vertex &v) const

virtual bool	isExtension (const Graph &h, const Graph &g) const

virtual bool	isForestRelativeTo (const Graph &h, const Graph &g) const

virtual bool	isSpanningForestRelativeTo (const Graph &h, const Graph &g) const

virtual bool	isTree (const Graph &g) const

virtual bool	isSpanningTree (const Graph &g) const

virtual bool	isForest (const Graph &g) const

virtual bool	isSpanningForest (const Graph &g) const

template<typename EdgeIterator >
bool	isGraphCut (EdgeIterator begin, EdgeIterator end, const Graph &g) const

template<typename EdgeSet >
bool	isGraphCut (const EdgeSet &es, const Graph &g) const

Static Public Member Functions
template<typename Set >
static Set	getComplement (const Set &s, const Set &e)
	Returns the complement of s in e. More...

static Type	notPresentValue ()
	Value whose meaning is "none". More...

static Type	presentValue ()
	Value whose meaning is "present". More...

Static Public Member Functions inherited from bio::BaseGraph< E >
template<typename Set >
static Set	getComplement (const Set &s, const Set &e)

Protected Types
typedef VolumeGraph< T, P >	This
	Type of *this. More...

typedef EWBaseGraph< SetEdgeRef< PointVertexRef< P > >, T >	Base
	Base class (EWBaseGraph) More...

typedef BaseGraph< SetEdgeRef< PointVertexRef< P > > >	BaseBase
	Base class of Base (BaseGraph) More...

Protected Types inherited from bio::EWBaseGraph< SetEdgeRef< PointVertexRef< P > >, T >
typedef EWBaseGraph< SetEdgeRef< PointVertexRef< P > >, T >	This
	Type of *this. More...

typedef BaseGraph< SetEdgeRef< PointVertexRef< P > > >	Base
	Base class. More...

Protected Types inherited from bio::BaseGraph< E >
typedef BaseGraph< E >	This
	Type of *this. More...

Protected Attributes
Volume	_vol

Weight(*	_weight )(const Type &, const Type &)

aims::StructuringElement	_conn

Additional Inherited Members
Static Protected Member Functions inherited from bio::EWBaseGraph< SetEdgeRef< PointVertexRef< P > >, T >
static Weight	Fm (const G &thisg, const Vertex &v)

Static Protected Member Functions inherited from bio::BaseGraph< E >
template<typename G >
static bool	isAdjacent (const G &thisg, const Vertex &x, const Vertex &y)
	These methods are templated on the iterator type (which is implementation dependant and thus not known in BaseGraph). More...

template<typename G >
static bool	isLinked (const G &thisg, const Vertex &x, const Vertex &y)

template<typename VertexSet , typename G >
static bool	isLinked (const G &thisg, const Vertex &x, const Vertex &y, VertexSet &s)

template<typename G >
static bool	isSubGraph (const G &thisg, const typename G::Ref &g)

template<typename G >
static bool	isConnectedComponent (const G &thisg, const typename G::Ref &g)

template<typename G >
static bool	isAdjacent (const G &thisg, const Edge &e)

template<typename G >
static bool	isAdjacentTo (const G &thisg, const Vertex &v, const typename G::Ref &g)

template<typename G >
static bool	isAdjacentFrom (const G &thisg, const Vertex &v, const typename G::Ref &g)

template<typename G >
static G::Ref	getConnectedComponent (G &thisg, Vertex &v)

template<typename G >
static void	getConnectedComponent (G &thisg, Vertex &v, typename G::Ref &g)

Detailed Description

template<typename T, typename P>
class bio::VolumeGraph< T, P >

Volume graphs are a graph implementation specifically designed to represent volumes as graphs (vertices are the voxels, and edges are a chosen connectivity).

To optimize the memory allocated by those graphs, they are actually stored as volumes. Vertices are thus PointVertexRef, and it is not possible to insert vertices that do not represent voxels present in the underlying volume.

Voxels from the underlying volume are considered not present if they take a given value (see notPresentValue()). By default, all the voxels from the volume are present. If construction is done based on an existing volume, its values are kept. Else, a default "present" value is given to the voxels.

Definition at line 57 of file volumegraph.h.

Member Typedef Documentation

◆ Base

template<typename T , typename P >

typedef EWBaseGraph< SetEdgeRef< PointVertexRef >, T > bio::VolumeGraph< T, P >::Base

protected

Base class (EWBaseGraph)

Definition at line 62 of file volumegraph.h.

◆ BaseBase

template<typename T , typename P >

typedef BaseGraph<SetEdgeRef< PointVertexRef > > bio::VolumeGraph< T, P >::BaseBase

protected

Base class of Base (BaseGraph)

Definition at line 63 of file volumegraph.h.

◆ Edge

template<typename T , typename P >

typedef Base::Edge bio::VolumeGraph< T, P >::Edge

Usable edge type (RC)

Definition at line 67 of file volumegraph.h.

◆ Graph

template<typename T , typename P >

typedef VolumeGraphRef<T,P> bio::VolumeGraph< T, P >::Graph

Usable graph type (RC)

Definition at line 70 of file volumegraph.h.

◆ Point

template<typename T , typename P >

typedef P bio::VolumeGraph< T, P >::Point

Point type.

Definition at line 66 of file volumegraph.h.

◆ Ref

template<typename T , typename P >

typedef VolumeGraphRef<T,P> bio::VolumeGraph< T, P >::Ref

Reference type.

Definition at line 71 of file volumegraph.h.

◆ This

template<typename T , typename P >

typedef VolumeGraph<T,P> bio::VolumeGraph< T, P >::This

protected

Type of *this.

Definition at line 61 of file volumegraph.h.

◆ Type

template<typename T , typename P >

typedef T bio::VolumeGraph< T, P >::Type

Value type.

Definition at line 65 of file volumegraph.h.

◆ Vertex

template<typename T , typename P >

typedef Base::Vertex bio::VolumeGraph< T, P >::Vertex

Usable vertex type (RC)

Definition at line 68 of file volumegraph.h.

◆ Volume

template<typename T , typename P >

typedef carto::VolumeRef<Type> bio::VolumeGraph< T, P >::Volume

Volume type.

Definition at line 72 of file volumegraph.h.

◆ Weight

template<typename T , typename P >

typedef Base::Weight bio::VolumeGraph< T, P >::Weight

Weight type.

Definition at line 69 of file volumegraph.h.

Constructor & Destructor Documentation

◆ VolumeGraph() [1/2]

template<typename T , typename P >

bio::VolumeGraph< T, P >::VolumeGraph	(	int	sx = `1`,
		int	sy = `1`,
		int	sz = `1`,
		int	st = `1`,
		const aims::strel::Connectivity &	conn = `aims::strel::Connectivity6XYZ()`
	)

Constructor from volume dimensions and connectivity This initializes the graph so that it represents a volume of size sx * sy * sz * st, with edges representing a connectivity conn.

Definition at line 222 of file volumegraph.h.

◆ VolumeGraph() [2/2]

template<typename T , typename P >

bio::VolumeGraph< T, P >::VolumeGraph	(	const Volume &	in,
		const aims::strel::Connectivity &	conn = `aims::strel::Connectivity6XYZ()`
	)

Constructor from an exisiting volume and connectivity The volume is not copied, a reference to it is made.

As such, any change to the VolumeGraph is a change to this volume.

Definition at line 230 of file volumegraph.h.

◆ ~VolumeGraph()

template<typename T , typename P >

virtual bio::VolumeGraph< T, P >::~VolumeGraph ( )

inlinevirtual

Definition at line 88 of file volumegraph.h.

Member Function Documentation

◆ access() [1/2]

template<typename T , typename P >

T & bio::VolumeGraph< T, P >::access ( const Point & p )

Access the volume at voxel p.

Definition at line 364 of file volumegraph.h.

◆ access() [2/2]

template<typename T , typename P >

const T & bio::VolumeGraph< T, P >::access ( const Point & p ) const

Access the volume at voxel p.

Definition at line 373 of file volumegraph.h.

◆ beginEdge() [1/4]

template<typename T , typename P >

edge_iterator bio::VolumeGraph< T, P >::beginEdge ( )

◆ beginEdge() [2/4]

template<typename T , typename P >

edge_const_iterator bio::VolumeGraph< T, P >::beginEdge ( ) const

◆ beginEdge() [3/4]

template<typename T , typename P >

edge_iterator bio::VolumeGraph< T, P >::beginEdge ( const Vertex & v )

inline

Iterator on the edges containing a given vertex.

Definition at line 111 of file volumegraph.h.

References bio::VolumeGraph< T, P >::_conn, and bio::VolumeGraph< T, P >::_vol.

◆ beginEdge() [4/4]

template<typename T , typename P >

edge_const_iterator bio::VolumeGraph< T, P >::beginEdge ( const Vertex & v ) const

inline

Iterator on the edges containing a given vertex.

Definition at line 105 of file volumegraph.h.

References bio::VolumeGraph< T, P >::_conn, and bio::VolumeGraph< T, P >::_vol.

◆ beginVertex() [1/2]

template<typename T , typename P >

vertex_iterator bio::VolumeGraph< T, P >::beginVertex ( )

inline

Iterator on all vertices.

Definition at line 101 of file volumegraph.h.

References bio::VolumeGraph< T, P >::_vol.

◆ beginVertex() [2/2]

template<typename T , typename P >

vertex_const_iterator bio::VolumeGraph< T, P >::beginVertex ( ) const

inline

Iterator on all edges (This::Edge)

Iterator on all vertices

Definition at line 97 of file volumegraph.h.

References bio::VolumeGraph< T, P >::_vol.

◆ clear()

template<typename T , typename P >

void bio::VolumeGraph< T, P >::clear

virtual

Clear the graph from all edges and vertices.

Reimplemented from bio::BaseGraph< E >.

Definition at line 269 of file volumegraph.h.

◆ contains() [1/2]

template<typename T , typename P >

bool bio::VolumeGraph< T, P >::contains ( const Edge & e ) const

virtual

True if e is in the graph.

Reimplemented from bio::BaseGraph< E >.

Definition at line 247 of file volumegraph.h.

◆ contains() [2/2]

template<typename T , typename P >

bool bio::VolumeGraph< T, P >::contains ( const Vertex & v ) const

virtual

True if v is in the graph.

Reimplemented from bio::BaseGraph< E >.

Definition at line 238 of file volumegraph.h.

◆ empty()

template<typename T , typename P >

bool bio::VolumeGraph< T, P >::empty

virtual

True if the graph contains no edges and vertices.

Reimplemented from bio::BaseGraph< E >.

Definition at line 256 of file volumegraph.h.

◆ endEdge() [1/4]

template<typename T , typename P >

edge_iterator bio::VolumeGraph< T, P >::endEdge ( )

◆ endEdge() [2/4]

template<typename T , typename P >

edge_const_iterator bio::VolumeGraph< T, P >::endEdge ( ) const

◆ endEdge() [3/4]

template<typename T , typename P >

edge_iterator bio::VolumeGraph< T, P >::endEdge ( const Vertex & v )

inline

Iterator on the edges containing a given vertex.

Definition at line 114 of file volumegraph.h.

References bio::VolumeGraph< T, P >::_conn, and bio::VolumeGraph< T, P >::_vol.

◆ endEdge() [4/4]

template<typename T , typename P >

edge_const_iterator bio::VolumeGraph< T, P >::endEdge ( const Vertex & v ) const

inline

Iterator on the edges containing a given vertex.

Definition at line 108 of file volumegraph.h.

References bio::VolumeGraph< T, P >::_conn, and bio::VolumeGraph< T, P >::_vol.

◆ endVertex() [1/2]

template<typename T , typename P >

vertex_iterator bio::VolumeGraph< T, P >::endVertex ( )

inline

Iterator on all vertices.

Definition at line 103 of file volumegraph.h.

References bio::VolumeGraph< T, P >::_vol.

◆ endVertex() [2/2]

template<typename T , typename P >

vertex_const_iterator bio::VolumeGraph< T, P >::endVertex ( ) const

inline

Iterator on all vertices.

Definition at line 99 of file volumegraph.h.

References bio::VolumeGraph< T, P >::_vol.

◆ Fm()

template<typename T , typename P >

Weight bio::VolumeGraph< T, P >::Fm ( const Vertex & v ) const

inlinevirtual

Returns the minimum weight of all edges containing v.

Reimplemented from bio::EWBaseGraph< SetEdgeRef< PointVertexRef >, T >.

Definition at line 174 of file volumegraph.h.

References bio::EWBaseGraph< SetEdgeRef< PointVertexRef >, T >::Fm().

◆ getComplement()

template<typename T , typename P >

template<typename Set >

static Set bio::VolumeGraph< T, P >::getComplement	(	const Set &	s,
		const Set &	e
	)

inlinestatic

Returns the complement of s in e.

Definition at line 178 of file volumegraph.h.

References bio::BaseGraph< E >::getComplement().

Referenced by bio::VolumeGraphRef< T, P >::getComplement().

◆ getConnectedComponent()

template<typename T , typename P >

Graph bio::VolumeGraph< T, P >::getConnectedComponent ( Vertex & v )

inline

Returns the (one and only) connected component of this graph containing v.

Definition at line 171 of file volumegraph.h.

References bio::BaseGraph< E >::getConnectedComponent().

◆ insert() [1/3]

template<typename T , typename P >

void bio::VolumeGraph< T, P >::insert ( Edge e )

inlinevirtual

Insertion of a new edge (undefined for now)

Reimplemented from bio::BaseGraph< E >.

Definition at line 130 of file volumegraph.h.

◆ insert() [2/3]

template<typename T , typename P >

void bio::VolumeGraph< T, P >::insert	(	Edge	e,
		Weight	w = `(Weight)0`
	)

inline

Insertion of a weighted edge (undefined for now)

Definition at line 140 of file volumegraph.h.

◆ insert() [3/3]

template<typename T , typename P >

void bio::VolumeGraph< T, P >::insert ( Vertex v )

inlinevirtual

Insertion of a new vertex (undefined for now)

Reimplemented from bio::BaseGraph< E >.

Definition at line 128 of file volumegraph.h.

◆ inside()

template<typename T , typename P >

bool bio::VolumeGraph< T, P >::inside ( const Point & p ) const

True if p is a voxel from the underlying volume.

Definition at line 382 of file volumegraph.h.

Referenced by bio::VolumeGraph< T, P >::edge_const_iterator::toNext().

◆ isAdjacent()

template<typename T , typename P >

bool bio::VolumeGraph< T, P >::isAdjacent	(	const Vertex &	x,
		const Vertex &	y
	)		const

inlinevirtual

Are x and y adjacent in the graph ?

Reimplemented from bio::BaseGraph< E >.

Definition at line 149 of file volumegraph.h.

References bio::BaseGraph< E >::isAdjacent().

◆ isAdjacentFrom()

template<typename T , typename P >

bool bio::VolumeGraph< T, P >::isAdjacentFrom	(	const Vertex &	v,
		const Graph &	g
	)		const

inlinevirtual

Reimplemented from bio::BaseGraph< E >.

Definition at line 167 of file volumegraph.h.

References bio::BaseGraph< E >::isAdjacentFrom().

◆ isAdjacentTo()

template<typename T , typename P >

bool bio::VolumeGraph< T, P >::isAdjacentTo	(	const Vertex &	v,
		const Graph &	g
	)		const

inlinevirtual

Is v adjacent to g ? (Meaning v isn't in g and there exist an edge in this graph that contains v and a vertex of g)

Reimplemented from bio::BaseGraph< E >.

Definition at line 165 of file volumegraph.h.

References bio::BaseGraph< E >::isAdjacentTo().

◆ isConnectedComponent()

template<typename T , typename P >

bool bio::VolumeGraph< T, P >::isConnectedComponent ( const Graph & g ) const

inlinevirtual

Is g a connected component in this graph (Meaning all its vertices are linked)

Reimplemented from bio::BaseGraph< E >.

Definition at line 160 of file volumegraph.h.

References bio::BaseGraph< E >::isConnectedComponent().

◆ isLinked()

template<typename T , typename P >

bool bio::VolumeGraph< T, P >::isLinked	(	const Vertex &	x,
		const Vertex &	y
	)		const

inlinevirtual

Are x and y linked in the graph ?

Reimplemented from bio::BaseGraph< E >.

Definition at line 152 of file volumegraph.h.

References bio::BaseGraph< E >::isLinked().

◆ isSubGraph()

template<typename T , typename P >

bool bio::VolumeGraph< T, P >::isSubGraph ( const Graph & g ) const

inlinevirtual

Is g a sub-graph os this graph ? (Meaning all its edges and vertices are included in this graph)

Reimplemented from bio::BaseGraph< E >.

Definition at line 156 of file volumegraph.h.

References bio::BaseGraph< E >::isSubGraph().

◆ mask()

template<typename T , typename P >

template<typename M >

void bio::VolumeGraph< T, P >::mask ( const carto::VolumeRef< M > & mask )

Mask the underlying volume using mask.

i.e. All voxels/vertices not present in the mask are set to notPresentValue()

Definition at line 348 of file volumegraph.h.

◆ notPresentValue()

template<typename T , typename P >

T bio::VolumeGraph< T, P >::notPresentValue

static

Value whose meaning is "none".

Definition at line 298 of file volumegraph.h.

Referenced by bio::VolumeGraphRef< T, P >::notPresentValue(), bio::VolumeGraph< T, P >::vertex_const_iterator::operator++(), and bio::VolumeGraph< T, P >::vertex_const_iterator::vertex_const_iterator().

◆ presentValue()

template<typename T , typename P >

T bio::VolumeGraph< T, P >::presentValue

static

Value whose meaning is "present".

Definition at line 304 of file volumegraph.h.

Referenced by bio::VolumeGraphRef< T, P >::presentValue().

◆ setDimensions() [1/2]

template<typename T , typename P >

void bio::VolumeGraph< T, P >::setDimensions ( const Point & dim )

Sets the dimensions of the underlying volume.

Definition at line 316 of file volumegraph.h.

◆ setDimensions() [2/2]

template<typename T , typename P >

void bio::VolumeGraph< T, P >::setDimensions	(	int	sx = `1`,
		int	sy = `1`,
		int	sz = `1`,
		int	st = `1`
	)

Sets the dimensions of the underlying volume.

Definition at line 310 of file volumegraph.h.

◆ setHeader() [1/2]

template<typename T , typename P >

void bio::VolumeGraph< T, P >::setHeader ( const Point4df & vs )

Sets the header of the underlying volume.

Definition at line 335 of file volumegraph.h.

◆ setHeader() [2/2]

template<typename T , typename P >

void bio::VolumeGraph< T, P >::setHeader	(	float	vx = `1.`,
		float	vy = `1.`,
		float	vz = `1.`,
		float	vt = `1.`
	)

Sets the header of the underlying volume.

Definition at line 325 of file volumegraph.h.

◆ setWeightMethod()

template<typename T , typename P >

void bio::VolumeGraph< T, P >::setWeightMethod ( Weight(*)(const Type &, const Type &) weight )

Sets the weight method.

A weight method takes two voxels values and returns a weight.

Definition at line 341 of file volumegraph.h.

◆ weight() [1/2]

template<typename T , typename P >

VolumeGraph< T, P >::Weight bio::VolumeGraph< T, P >::weight ( const Edge & e )

virtual

Returns the weight of e.

Reimplemented from bio::EWBaseGraph< SetEdgeRef< PointVertexRef >, T >.

Definition at line 280 of file volumegraph.h.

◆ weight() [2/2]

template<typename T , typename P >

VolumeGraph< T, P >::Weight bio::VolumeGraph< T, P >::weight ( const Edge & e ) const

virtual

Returns the weight of e.

Reimplemented from bio::EWBaseGraph< SetEdgeRef< PointVertexRef >, T >.

Definition at line 289 of file volumegraph.h.

Member Data Documentation

◆ _conn

template<typename T , typename P >

aims::StructuringElement bio::VolumeGraph< T, P >::_conn

protected

Definition at line 214 of file volumegraph.h.

Referenced by bio::VolumeGraph< T, P >::beginEdge(), and bio::VolumeGraph< T, P >::endEdge().

◆ _vol

template<typename T , typename P >

Volume bio::VolumeGraph< T, P >::_vol

protected

Definition at line 212 of file volumegraph.h.

Referenced by bio::VolumeGraph< T, P >::beginEdge(), bio::VolumeGraph< T, P >::beginVertex(), bio::VolumeGraph< T, P >::endEdge(), bio::VolumeGraph< T, P >::endVertex(), bio::VolumeGraph< T, P >::vertex_const_iterator::operator++(), bio::VolumeGraph< T, P >::vertex_const_iterator::operator=(), bio::VolumeGraph< T, P >::edge_const_iterator::operator=(), and bio::VolumeGraph< T, P >::vertex_const_iterator::vertex_const_iterator().

◆ _weight

template<typename T , typename P >

Weight(* bio::VolumeGraph< T, P >::_weight) (const Type &, const Type &)

protected

Definition at line 213 of file volumegraph.h.

The documentation for this class was generated from the following file:

bioprocessing/graph/volumegraph.h

Classes

Public Types

Public Member Functions

Static Public Member Functions

Protected Types

Protected Attributes

Additional Inherited Members

Detailed Description

template<typename T, typename P> class bio::VolumeGraph< T, P >

Member Typedef Documentation

◆ Base

◆ BaseBase

◆ Edge

◆ Graph

◆ Point

◆ Ref

◆ This

◆ Type

◆ Vertex

◆ Volume

◆ Weight

Constructor & Destructor Documentation

◆ VolumeGraph() [1/2]

◆ VolumeGraph() [2/2]

◆ ~VolumeGraph()

Member Function Documentation

◆ access() [1/2]

◆ access() [2/2]

◆ beginEdge() [1/4]

◆ beginEdge() [2/4]

◆ beginEdge() [3/4]

◆ beginEdge() [4/4]

◆ beginVertex() [1/2]

◆ beginVertex() [2/2]

◆ clear()

◆ contains() [1/2]

◆ contains() [2/2]

◆ empty()

◆ endEdge() [1/4]

◆ endEdge() [2/4]

◆ endEdge() [3/4]

◆ endEdge() [4/4]

◆ endVertex() [1/2]

◆ endVertex() [2/2]

◆ Fm()

◆ getComplement()

◆ getConnectedComponent()

◆ insert() [1/3]

◆ insert() [2/3]

◆ insert() [3/3]

◆ inside()

◆ isAdjacent()

◆ isAdjacentFrom()

◆ isAdjacentTo()

◆ isConnectedComponent()

◆ isLinked()

◆ isSubGraph()

◆ mask()

◆ notPresentValue()

◆ presentValue()

◆ setDimensions() [1/2]

◆ setDimensions() [2/2]

◆ setHeader() [1/2]

◆ setHeader() [2/2]

◆ setWeightMethod()

◆ weight() [1/2]

◆ weight() [2/2]

Member Data Documentation

◆ _conn

◆ _vol

◆ _weight

template<typename T, typename P>
class bio::VolumeGraph< T, P >
