aims::LinearFilteringImageAlgorithm< T > Class Template Reference

#include <aims/signalfilter/filteringimagealgorithm.h>

Inheritance diagram for aims::LinearFilteringImageAlgorithm< T >:
Inheritance graph
[legend]

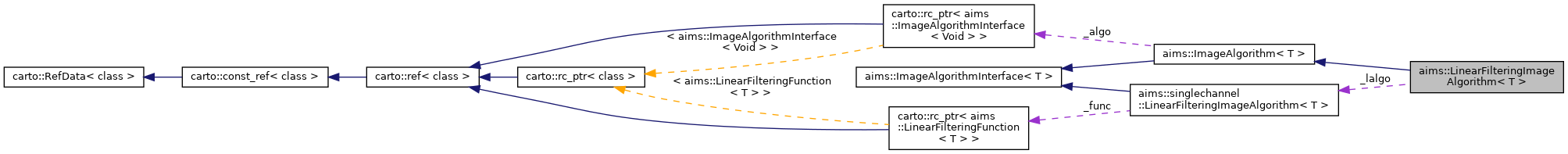

Collaboration diagram for aims::LinearFilteringImageAlgorithm< T >:
Collaboration graph
[legend]

Public Types

typedef T VoxelType

typedef carto::DataTypeTraits< T >::ChannelType ChannelType

typedef singlechannel::LinearFilteringImageAlgorithm< ChannelType > SingleChannelImageAlgorithmType

- Public Types inherited from aims::ImageAlgorithm< T >
typedef T VoxelType

typedef carto::DataTypeTraits< T >::ChannelType ChannelType

- Public Types inherited from aims::ImageAlgorithmInterface< T >
typedef T VoxelType


Public Member Functions

virtual void setOptions (const carto::Object &options)

virtual void updateOptions (const carto::Object &options)

virtual LinearFilteringImageAlgorithm< T > * clone () const
 ImageAlgorithmInterface<T> Pure virtual method. More...

virtual ~LinearFilteringImageAlgorithm ()

- Public Member Functions inherited from aims::ImageAlgorithm< T >
virtual void execute (const carto::VolumeRef< T > &in, carto::VolumeRef< T > &out) const
 ImageAlgorithmInterface<T> Pure virtual method. More...

virtual Point4dl getOutputImageDimensions (const Point4dl &dims) const
 Returns the output dimensions of the processed image. More...

virtual Point4df getOutputImageVoxelSize (const Point4df &voxelsize) const
 Returns the output voxel size of the processed image. More...

virtual void setVerbose (int level)

virtual ~ImageAlgorithm ()

- Public Member Functions inherited from aims::ImageAlgorithmInterface< T >
virtual Point4dl getOutputImageDimensions (const long &dx=1, const long &dy=1, const long &dz=1, const long &dt=1) const

virtual Point4df getOutputImageVoxelSize (const float &vx=1.0, const float &vy=1.0, const float &vz=1.0, const float &vt=1.0) const

virtual carto::VolumeRef< T > execute (const carto::VolumeRef< T > &in) const

virtual void setQuiet ()

virtual ~ImageAlgorithmInterface ()


Protected Member Functions

 LinearFilteringImageAlgorithm ()

 LinearFilteringImageAlgorithm (const LinearFilteringFunction< ChannelType > &f)

 LinearFilteringImageAlgorithm (const LinearFilteringImageAlgorithm< T > &other)

LinearFilteringImageAlgorithm & operator= (LinearFilteringImageAlgorithm &other)

- Protected Member Functions inherited from aims::ImageAlgorithm< T >
 ImageAlgorithm ()

 ImageAlgorithm (const ImageAlgorithmInterface< ChannelType > &algo)

 ImageAlgorithm (ImageAlgorithmInterface< ChannelType > *algo, bool deepcopy=true)

 ImageAlgorithm (const ImageAlgorithm &other)

ImageAlgorithm & operator= (const ImageAlgorithm &other)

- Protected Member Functions inherited from aims::ImageAlgorithmInterface< T >
 ImageAlgorithmInterface ()

 ImageAlgorithmInterface (const ImageAlgorithmInterface &other)

ImageAlgorithmInterface & operator= (const ImageAlgorithmInterface &other)


Protected Attributes

SingleChannelImageAlgorithmType * _lalgo

- Protected Attributes inherited from aims::ImageAlgorithm< T >
carto::rc_ptr< ImageAlgorithmInterface< ChannelType > > _algo

- Protected Attributes inherited from aims::ImageAlgorithmInterface< T >
int _verbose


Detailed Description

template<typename T>
class aims::LinearFilteringImageAlgorithm< T >

Definition at line 69 of file filteringimagealgorithm.h.

Member Typedef Documentation

◆ ChannelType

template<typename T >
typedef carto::DataTypeTraits<T>::ChannelType aims::LinearFilteringImageAlgorithm< T >::ChannelType

Definition at line 76 of file filteringimagealgorithm.h.

◆ SingleChannelImageAlgorithmType

template<typename T >
typedef singlechannel::LinearFilteringImageAlgorithm<ChannelType> aims::LinearFilteringImageAlgorithm< T >::SingleChannelImageAlgorithmType

Definition at line 77 of file filteringimagealgorithm.h.

◆ VoxelType

template<typename T >
typedef T aims::LinearFilteringImageAlgorithm< T >::VoxelType

Definition at line 75 of file filteringimagealgorithm.h.

Constructor & Destructor Documentation

◆ LinearFilteringImageAlgorithm() [1/3]

template<typename T >
aims::LinearFilteringImageAlgorithm< T >::LinearFilteringImageAlgorithm ( )
protected

◆ LinearFilteringImageAlgorithm() [2/3]

template<typename T >
aims::LinearFilteringImageAlgorithm< T >::LinearFilteringImageAlgorithm ( const LinearFilteringFunction< ChannelType > &  f)
inlineprotected

Definition at line 102 of file filteringimagealgorithm.h.

References aims::LinearFilteringImageAlgorithm< T >::_lalgo.

◆ LinearFilteringImageAlgorithm() [3/3]

template<typename T >
aims::LinearFilteringImageAlgorithm< T >::LinearFilteringImageAlgorithm ( const LinearFilteringImageAlgorithm< T > &  other)
inlineprotected

Definition at line 108 of file filteringimagealgorithm.h.

References aims::LinearFilteringImageAlgorithm< T >::_lalgo.

◆ ~LinearFilteringImageAlgorithm()

template<typename T >
virtual aims::LinearFilteringImageAlgorithm< T >::~LinearFilteringImageAlgorithm ( )
inlinevirtual

Definition at line 121 of file filteringimagealgorithm.h.

Member Function Documentation

◆ clone()

template<typename T >
virtual LinearFilteringImageAlgorithm<T>* aims::LinearFilteringImageAlgorithm< T >::clone ( ) const
inlinevirtual

ImageAlgorithmInterface<T> Pure virtual method.

Clone the object

Reimplemented from aims::ImageAlgorithm< T >.

Reimplemented in aims::GaborFilter< T >.

Definition at line 92 of file filteringimagealgorithm.h.

◆ operator=()

template<typename T >
LinearFilteringImageAlgorithm& aims::LinearFilteringImageAlgorithm< T >::operator= ( LinearFilteringImageAlgorithm< T > &  other)
inlineprotected

Definition at line 114 of file filteringimagealgorithm.h.

References aims::LinearFilteringImageAlgorithm< T >::_lalgo, and aims::singlechannel::LinearFilteringImageAlgorithm< T >::clone().

Referenced by aims::GaborFilter< T >::operator=().

◆ setOptions()

template<typename T >
virtual void aims::LinearFilteringImageAlgorithm< T >::setOptions ( const carto::Object &  options)
inlinevirtual

Reimplemented from aims::ImageAlgorithmInterface< T >.

Definition at line 82 of file filteringimagealgorithm.h.

References aims::LinearFilteringImageAlgorithm< T >::_lalgo, and aims::singlechannel::LinearFilteringImageAlgorithm< T >::setOptions().

◆ updateOptions()

template<typename T >
virtual void aims::LinearFilteringImageAlgorithm< T >::updateOptions ( const carto::Object &  options)
inlinevirtual

Reimplemented from aims::ImageAlgorithmInterface< T >.

Definition at line 87 of file filteringimagealgorithm.h.

References aims::LinearFilteringImageAlgorithm< T >::_lalgo, and aims::singlechannel::LinearFilteringImageAlgorithm< T >::updateOptions().

Member Data Documentation

◆ _lalgo

template<typename T >
SingleChannelImageAlgorithmType* aims::LinearFilteringImageAlgorithm< T >::_lalgo
protected

Definition at line 127 of file filteringimagealgorithm.h.

Referenced by aims::LinearFilteringImageAlgorithm< T >::LinearFilteringImageAlgorithm(), aims::LinearFilteringImageAlgorithm< T >::operator=(), aims::LinearFilteringImageAlgorithm< T >::setOptions(), and aims::LinearFilteringImageAlgorithm< T >::updateOptions().

The documentation for this class was generated from the following file:
