aims::ImageAlgorithmInterface is the interface for an image processing algorithm. More...

#include <aims/algorithm/imagealgorithm.h>

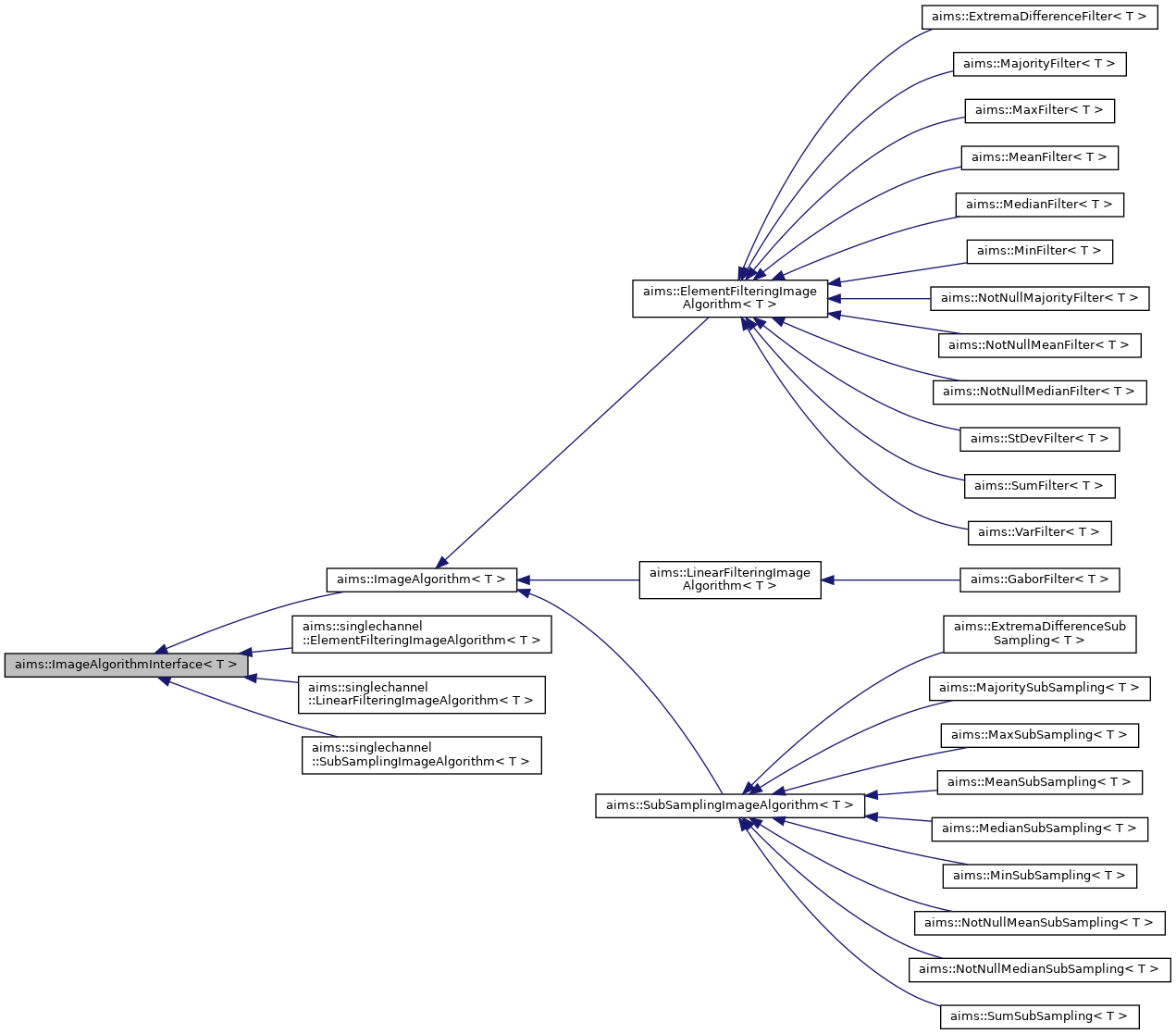

Inheritance diagram for aims::ImageAlgorithmInterface< T >:

[legend]

Public Types
typedef T	VoxelType

Public Member Functions
virtual Point4dl	getOutputImageDimensions (const Point4dl &dims) const
	Returns the output dimensions of the processed image. More...

virtual Point4df	getOutputImageVoxelSize (const Point4df &voxelsize) const
	Returns the output voxel size of the processed image. More...

virtual void	execute (const carto::VolumeRef< T > &in, carto::VolumeRef< T > &out) const =0
	`ImageAlgorithmInterface<T>` Pure virtual method. More...

virtual void	setOptions (const carto::Object &)

virtual void	updateOptions (const carto::Object &)

virtual ImageAlgorithmInterface *	clone () const =0
	`ImageAlgorithmInterface<T>` Pure virtual method. More...

virtual Point4dl	getOutputImageDimensions (const long &dx=1, const long &dy=1, const long &dz=1, const long &dt=1) const

virtual Point4df	getOutputImageVoxelSize (const float &vx=1.0, const float &vy=1.0, const float &vz=1.0, const float &vt=1.0) const

virtual carto::VolumeRef< T >	execute (const carto::VolumeRef< T > &in) const

virtual void	setVerbose (int level)

virtual void	setQuiet ()

virtual	~ImageAlgorithmInterface ()

Protected Member Functions
	ImageAlgorithmInterface ()

	ImageAlgorithmInterface (const ImageAlgorithmInterface &other)

ImageAlgorithmInterface &	operator= (const ImageAlgorithmInterface &other)

Protected Attributes
int	_verbose

Detailed Description

template<typename T>
class aims::ImageAlgorithmInterface< T >

aims::ImageAlgorithmInterface is the interface for an image processing algorithm.

Image processing algorithms take volumes as input and output. Output dimensions and voxel size may differ from input ones.

Definition at line 68 of file imagealgorithm.h.

Member Typedef Documentation

◆ VoxelType

template<typename T >

typedef T aims::ImageAlgorithmInterface< T >::VoxelType

Definition at line 73 of file imagealgorithm.h.

Constructor & Destructor Documentation

◆ ~ImageAlgorithmInterface()

template<typename T >

virtual aims::ImageAlgorithmInterface< T >::~ImageAlgorithmInterface ( )

inlinevirtual

Definition at line 174 of file imagealgorithm.h.

◆ ImageAlgorithmInterface() [1/2]

template<typename T >

aims::ImageAlgorithmInterface< T >::ImageAlgorithmInterface ( )

inlineprotected

Definition at line 176 of file imagealgorithm.h.

References verbose.

◆ ImageAlgorithmInterface() [2/2]

template<typename T >

aims::ImageAlgorithmInterface< T >::ImageAlgorithmInterface ( const ImageAlgorithmInterface< T > & other )

inlineprotected

Definition at line 177 of file imagealgorithm.h.

Member Function Documentation

◆ clone()

template<typename T >

virtual ImageAlgorithmInterface* aims::ImageAlgorithmInterface< T >::clone ( ) const

pure virtual

◆ execute() [1/2]

template<typename T >

virtual carto::VolumeRef<T> aims::ImageAlgorithmInterface< T >::execute ( const carto::VolumeRef< T > & in ) const

inlinevirtual

See also: execute( const carto::VolumeRef<T> & )

Definition at line 139 of file imagealgorithm.h.

References carto::VolumeRef< class >::copyHeaderFrom(), aims::ImageAlgorithmInterface< T >::execute(), aims::ImageAlgorithmInterface< T >::getOutputImageDimensions(), aims::ImageAlgorithmInterface< T >::getOutputImageVoxelSize(), carto::PropertySet::getProperty(), carto::VolumeRef< class >::getSizeT(), carto::VolumeRef< class >::getSizeX(), carto::VolumeRef< class >::getSizeY(), carto::VolumeRef< class >::getSizeZ(), carto::VolumeRef< class >::header(), and carto::PropertySet::setProperty().

◆ execute() [2/2]

template<typename T >

virtual void aims::ImageAlgorithmInterface< T >::execute	(	const carto::VolumeRef< T > &	in,
		carto::VolumeRef< T > &	out
	)		const

pure virtual

ImageAlgorithmInterface<T> Pure virtual method.

Returns the image processed by an algorithm on the input image into an already allocated output volume.

Parameters

in	Input image to process
out	Output image processed

Implemented in aims::singlechannel::ElementFilteringImageAlgorithm< T >, aims::singlechannel::LinearFilteringImageAlgorithm< T >, aims::singlechannel::SubSamplingImageAlgorithm< T >, and aims::ImageAlgorithm< T >.

Referenced by aims::ImageAlgorithmInterface< T >::execute().

◆ getOutputImageDimensions() [1/2]

template<typename T >

virtual Point4dl aims::ImageAlgorithmInterface< T >::getOutputImageDimensions	(	const long &	dx = `1`,
		const long &	dy = `1`,
		const long &	dz = `1`,
		const long &	dt = `1`
	)		const

inlinevirtual

See also: getOutputImageDimensions( const Point4dl & )

Definition at line 121 of file imagealgorithm.h.

References aims::ImageAlgorithmInterface< T >::getOutputImageDimensions().

◆ getOutputImageDimensions() [2/2]

template<typename T >

virtual Point4dl aims::ImageAlgorithmInterface< T >::getOutputImageDimensions ( const Point4dl & dims ) const

inlinevirtual

Returns the output dimensions of the processed image.

This is used when output image does not have the same dimensions as input image.

Parameters

Point4dl dims dimensions of the input image.

Returns: Point4dl dimensions of the output image.

The default implementation returns same dimensions as input.

Reimplemented in aims::singlechannel::SubSamplingImageAlgorithm< T >, and aims::ImageAlgorithm< T >.

Definition at line 84 of file imagealgorithm.h.

Referenced by aims::ImageAlgorithmInterface< T >::execute(), and aims::ImageAlgorithmInterface< T >::getOutputImageDimensions().

◆ getOutputImageVoxelSize() [1/2]

template<typename T >

virtual Point4df aims::ImageAlgorithmInterface< T >::getOutputImageVoxelSize	(	const float &	vx = `1.0`,
		const float &	vy = `1.0`,
		const float &	vz = `1.0`,
		const float &	vt = `1.0`
	)		const
