aims::ImageAlgorithm class used to implement image algorithms More...

#include <aims/algorithm/imagealgorithm.h>

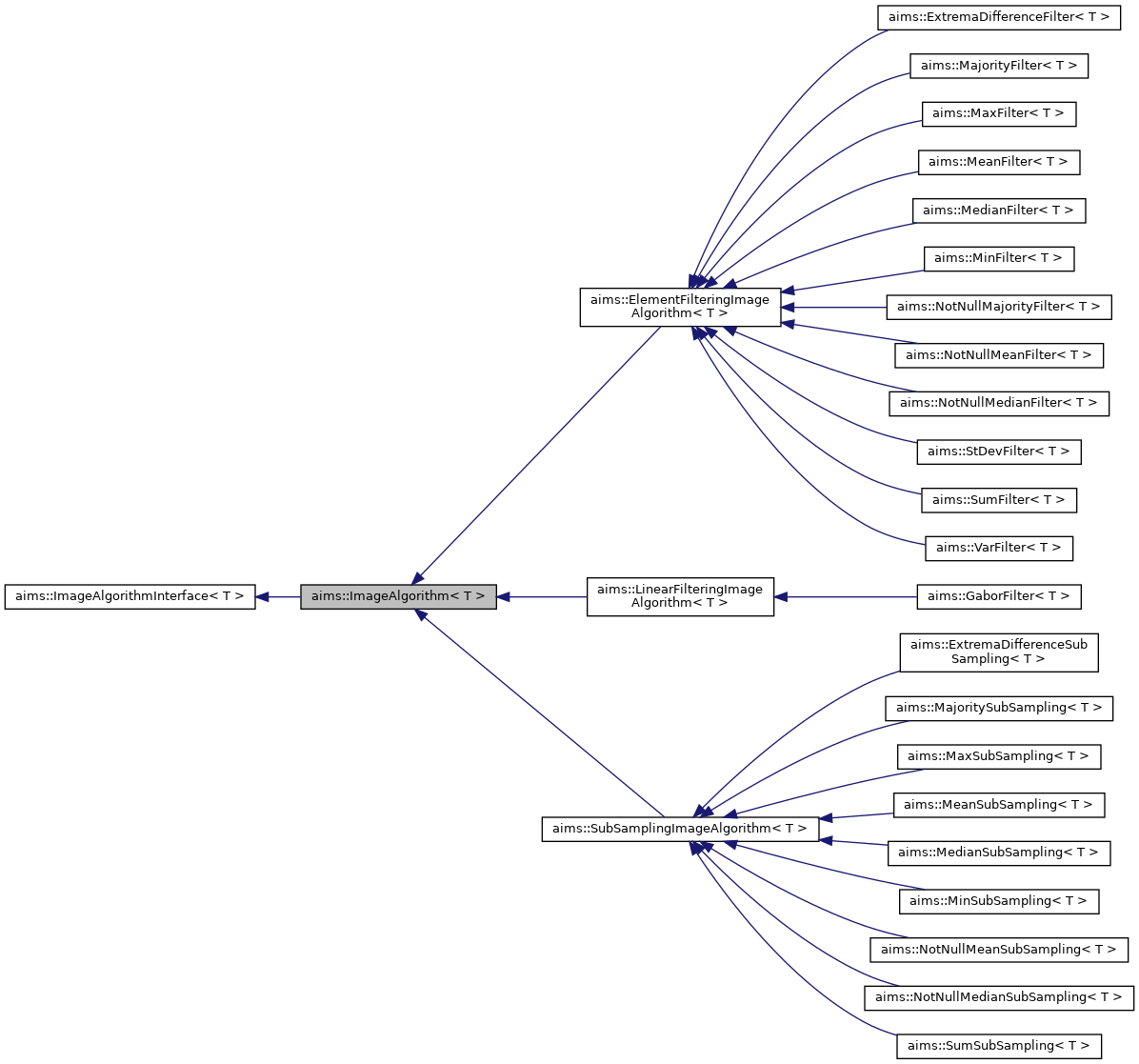

Inheritance diagram for aims::ImageAlgorithm< T >:

[legend]

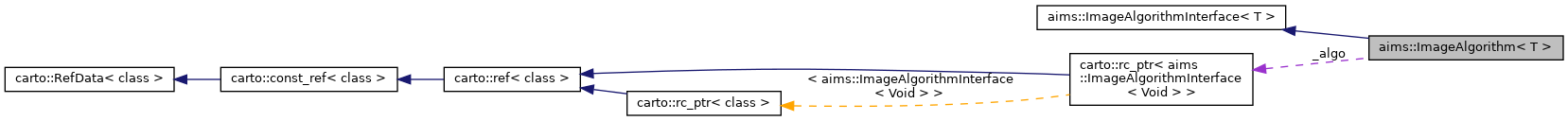

Collaboration diagram for aims::ImageAlgorithm< T >:

[legend]

Public Types
typedef T	VoxelType

typedef carto::DataTypeTraits< T >::ChannelType	ChannelType

Public Types inherited from aims::ImageAlgorithmInterface< T >
typedef T	VoxelType

Public Member Functions
virtual void	execute (const carto::VolumeRef< T > &in, carto::VolumeRef< T > &out) const
	`ImageAlgorithmInterface<T>` Pure virtual method. More...

virtual Point4dl	getOutputImageDimensions (const Point4dl &dims) const
	Returns the output dimensions of the processed image. More...

virtual Point4df	getOutputImageVoxelSize (const Point4df &voxelsize) const
	Returns the output voxel size of the processed image. More...

virtual ImageAlgorithm< T > *	clone () const
	`ImageAlgorithmInterface<T>` Pure virtual method. More...

virtual void	setVerbose (int level)

virtual	~ImageAlgorithm ()

Public Member Functions inherited from aims::ImageAlgorithmInterface< T >
virtual void	setOptions (const carto::Object &)

virtual void	updateOptions (const carto::Object &)

virtual Point4dl	getOutputImageDimensions (const long &dx=1, const long &dy=1, const long &dz=1, const long &dt=1) const

virtual Point4df	getOutputImageVoxelSize (const float &vx=1.0, const float &vy=1.0, const float &vz=1.0, const float &vt=1.0) const

virtual carto::VolumeRef< T >	execute (const carto::VolumeRef< T > &in) const

virtual void	setQuiet ()

virtual	~ImageAlgorithmInterface ()

Protected Member Functions
	ImageAlgorithm ()

	ImageAlgorithm (const ImageAlgorithmInterface< ChannelType > &algo)

	ImageAlgorithm (ImageAlgorithmInterface< ChannelType > *algo, bool deepcopy=true)

	ImageAlgorithm (const ImageAlgorithm &other)

ImageAlgorithm &	operator= (const ImageAlgorithm &other)

Protected Member Functions inherited from aims::ImageAlgorithmInterface< T >
	ImageAlgorithmInterface ()

	ImageAlgorithmInterface (const ImageAlgorithmInterface &other)

ImageAlgorithmInterface &	operator= (const ImageAlgorithmInterface &other)

Protected Attributes
carto::rc_ptr< ImageAlgorithmInterface< ChannelType > >	_algo

Protected Attributes inherited from aims::ImageAlgorithmInterface< T >
int	_verbose

Detailed Description

template<typename T>
class aims::ImageAlgorithm< T >

aims::ImageAlgorithm class used to implement image algorithms

aims::ImageAlgorithm is a base class that allows to not take care about multi-channel management. When a multi-channel image is processed, the c ImageAlgorithmInterface will be applied to each channel separately.

Template Parameters

T	type of voxel that will be processed by `ImageAlgorithmInterface`

Definition at line 200 of file imagealgorithm.h.

Member Typedef Documentation

◆ ChannelType

template<typename T >

typedef carto::DataTypeTraits<T>::ChannelType aims::ImageAlgorithm< T >::ChannelType

Definition at line 207 of file imagealgorithm.h.

◆ VoxelType

template<typename T >

typedef T aims::ImageAlgorithm< T >::VoxelType

Definition at line 206 of file imagealgorithm.h.

Constructor & Destructor Documentation

◆ ~ImageAlgorithm()

template<typename T >

virtual aims::ImageAlgorithm< T >::~ImageAlgorithm ( )

inlinevirtual

Definition at line 247 of file imagealgorithm.h.

◆ ImageAlgorithm() [1/4]

template<typename T >

aims::ImageAlgorithm< T >::ImageAlgorithm ( )

inlineprotected

Definition at line 249 of file imagealgorithm.h.

◆ ImageAlgorithm() [2/4]

template<typename T >

aims::ImageAlgorithm< T >::ImageAlgorithm ( const ImageAlgorithmInterface< ChannelType > & algo )

inlineprotected

Definition at line 250 of file imagealgorithm.h.

◆ ImageAlgorithm() [3/4]

template<typename T >

aims::ImageAlgorithm< T >::ImageAlgorithm	(	ImageAlgorithmInterface< ChannelType > *	algo,
		bool	deepcopy = `true`
	)

inlineprotected

Definition at line 254 of file imagealgorithm.h.

References deepcopy().

◆ ImageAlgorithm() [4/4]

template<typename T >

aims::ImageAlgorithm< T >::ImageAlgorithm ( const ImageAlgorithm< T > & other )

inlineprotected

Definition at line 258 of file imagealgorithm.h.

Member Function Documentation

◆ clone()

template<typename T >

virtual ImageAlgorithm<T>* aims::ImageAlgorithm< T >::clone ( ) const

inlinevirtual

ImageAlgorithmInterface<T> Pure virtual method.

Clone the object

Implements aims::ImageAlgorithmInterface< T >.

Reimplemented in aims::VarFilter< T >, aims::SumFilter< T >, aims::StDevFilter< T >, aims::MinFilter< T >, aims::NotNullMedianFilter< T >, aims::MedianFilter< T >, aims::NotNullMeanFilter< T >, aims::MeanFilter< T >, aims::MaxFilter< T >, aims::NotNullMajorityFilter< T >, aims::MajorityFilter< T >, aims::GaborFilter< T >, aims::ElementFilteringImageAlgorithm< T >, aims::LinearFilteringImageAlgorithm< T >, aims::ExtremaDifferenceFilter< T >, and aims::SubSamplingImageAlgorithm< T >.

Definition at line 233 of file imagealgorithm.h.

◆ execute()

template<typename T >

virtual void aims::ImageAlgorithm< T >::execute	(	const carto::VolumeRef< T > &	in,
		carto::VolumeRef< T > &	out
	)		const

inlinevirtual

ImageAlgorithmInterface<T> Pure virtual method.

Returns the image processed by an algorithm on the input image into an already allocated output volume.

Parameters

in	Input image to process
out	Output image processed

Implements aims::ImageAlgorithmInterface< T >.

Definition at line 212 of file imagealgorithm.h.

References aims::ImageAlgorithm< T >::_algo, and aims::ImageAlgorithmInterface< T >::_verbose.

Referenced by MedianSmoothing< T >::doit().

◆ getOutputImageDimensions()

template<typename T >

virtual Point4dl aims::ImageAlgorithm< T >::getOutputImageDimensions ( const Point4dl & dims ) const

inlinevirtual

Returns the output dimensions of the processed image.

This is used when output image does not have the same dimensions as input image.

Parameters

Point4dl dims dimensions of the input image.

Returns: Point4dl dimensions of the output image.

The default implementation returns same dimensions as input.

Reimplemented from aims::ImageAlgorithmInterface< T >.

Definition at line 219 of file imagealgorithm.h.

References aims::ImageAlgorithm< T >::_algo.

◆ getOutputImageVoxelSize()

template<typename T >

virtual Point4df aims::ImageAlgorithm< T >::getOutputImageVoxelSize ( const Point4df & voxelsize ) const

inlinevirtual

Returns the output voxel size of the processed image.

This is used when output image does not have the same voxel size as input image.

Parameters

Point4df voxelsize voxel size of the input image.

Returns: Point4df voxel size of the output image.

The default implementation returns same voxel size as input.

Reimplemented from aims::ImageAlgorithmInterface< T >.

Definition at line 223 of file imagealgorithm.h.

References aims::ImageAlgorithm< T >::_algo.

◆ operator=()

template<typename T >

ImageAlgorithm& aims::ImageAlgorithm< T >::operator= ( const ImageAlgorithm< T > & other )

inlineprotected

Definition at line 262 of file imagealgorithm.h.

References aims::ImageAlgorithm< T >::_algo, ASSERT, and aims::ImageAlgorithmInterface< T >::operator=().

Referenced by aims::SubSamplingImageAlgorithm< T >::operator=().

◆ setVerbose()

template<typename T >

virtual void aims::ImageAlgorithm< T >::setVerbose ( int level )

inlinevirtual

Reimplemented from aims::ImageAlgorithmInterface< T >.

Definition at line 237 of file imagealgorithm.h.

References aims::ImageAlgorithm< T >::_algo, and aims::ImageAlgorithmInterface< T >::setVerbose().

Member Data Documentation

◆ _algo

template<typename T >

carto::rc_ptr<ImageAlgorithmInterface<ChannelType> > aims::ImageAlgorithm< T >::_algo

protected

Definition at line 276 of file imagealgorithm.h.

Referenced by aims::ImageAlgorithm< T >::execute(), aims::ImageAlgorithm< T >::getOutputImageDimensions(), aims::ImageAlgorithm< T >::getOutputImageVoxelSize(), aims::ImageAlgorithm< T >::operator=(), and aims::ImageAlgorithm< T >::setVerbose().

The documentation for this class was generated from the following file:

aims/algorithm/imagealgorithm.h
