aims::StDevFilter< T > Class Template Reference

#include <aims/signalfilter/sdfilter.h>

Inheritance diagram for aims::StDevFilter< T >:

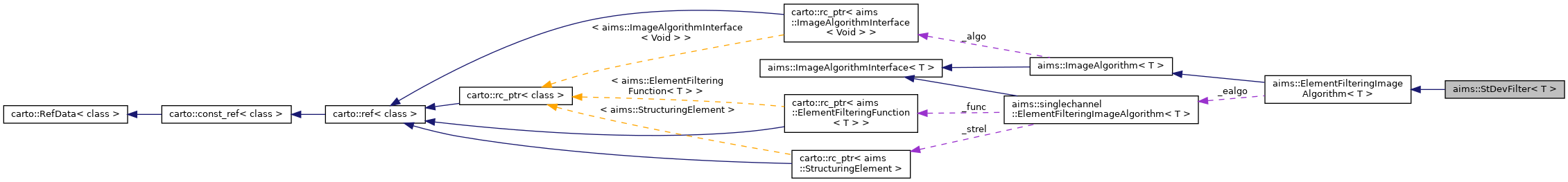

Collaboration diagram for aims::StDevFilter< T >:

Public Types
typedef carto::DataTypeTraits< T >::ChannelType	ChannelType
Public Types inherited from aims::ElementFilteringImageAlgorithm< T >
typedef T	VoxelType
typedef carto::DataTypeTraits< T >::ChannelType	ChannelType
typedef singlechannel::ElementFilteringImageAlgorithm< ChannelType >	SingleChannelImageAlgorithmType
Public Types inherited from aims::ImageAlgorithm< T >
typedef T	VoxelType
typedef carto::DataTypeTraits< T >::ChannelType	ChannelType
Public Types inherited from aims::ImageAlgorithmInterface< T >
typedef T	VoxelType

Public Member Functions
	StDevFilter (const StructuringElement &se=strel::Cube(1.0), const carto::Object &options=carto::none())
	StDevFilter (const carto::Object &options)
	StDevFilter (const StDevFilter< T > &other)
	~StDevFilter ()
StDevFilter< T > &	operator= (const StDevFilter< T > &other)
StDevFilter< T > *	clone () const
	ImageAlgorithmInterface<T> Pure virtual method. More...
Public Member Functions inherited from aims::ElementFilteringImageAlgorithm< T >
virtual void	setOptions (const carto::Object &options)
virtual void	updateOptions (const carto::Object &options)
virtual void	setStructuringElement (const StructuringElement &se)
virtual	~ElementFilteringImageAlgorithm ()
Public Member Functions inherited from aims::ImageAlgorithm< T >
virtual void	execute (const carto::VolumeRef< T > &in, carto::VolumeRef< T > &out) const
	ImageAlgorithmInterface<T> Pure virtual method. More...
virtual Point4dl	getOutputImageDimensions (const Point4dl &dims) const
	Returns the output dimensions of the processed image. More...
virtual Point4df	getOutputImageVoxelSize (const Point4df &voxelsize) const
	Returns the output voxel size of the processed image. More...
virtual void	setVerbose (int level)
virtual	~ImageAlgorithm ()
Public Member Functions inherited from aims::ImageAlgorithmInterface< T >
virtual Point4dl	getOutputImageDimensions (const long &dx=1, const long &dy=1, const long &dz=1, const long &dt=1) const
virtual Point4df	getOutputImageVoxelSize (const float &vx=1.0, const float &vy=1.0, const float &vz=1.0, const float &vt=1.0) const
virtual carto::VolumeRef< T >	execute (const carto::VolumeRef< T > &in) const
virtual void	setQuiet ()
virtual	~ImageAlgorithmInterface ()

Additional Inherited Members
Protected Member Functions inherited from aims::ElementFilteringImageAlgorithm< T >
	ElementFilteringImageAlgorithm (const ElementFilteringFunction< ChannelType > &f, const StructuringElement &se=strel::Cube(1.))
	ElementFilteringImageAlgorithm (const ElementFilteringImageAlgorithm< T > &other)
ElementFilteringImageAlgorithm &	operator= (ElementFilteringImageAlgorithm &other)
Protected Member Functions inherited from aims::ImageAlgorithm< T >
	ImageAlgorithm ()
	ImageAlgorithm (const ImageAlgorithmInterface< ChannelType > &algo)
	ImageAlgorithm (ImageAlgorithmInterface< ChannelType > *algo, bool deepcopy=true)
	ImageAlgorithm (const ImageAlgorithm &other)
ImageAlgorithm &	operator= (const ImageAlgorithm &other)
Protected Member Functions inherited from aims::ImageAlgorithmInterface< T >
	ImageAlgorithmInterface ()
	ImageAlgorithmInterface (const ImageAlgorithmInterface &other)
ImageAlgorithmInterface &	operator= (const ImageAlgorithmInterface &other)
Protected Attributes inherited from aims::ElementFilteringImageAlgorithm< T >
SingleChannelImageAlgorithmType *	_ealgo
Protected Attributes inherited from aims::ImageAlgorithm< T >
carto::rc_ptr< ImageAlgorithmInterface< ChannelType > >	_algo
Protected Attributes inherited from aims::ImageAlgorithmInterface< T >
int	_verbose

Detailed Description

template<typename T>
class aims::StDevFilter< T >

Definition at line 45 of file sdfilter.h.

Member Typedef Documentation

ChannelType

template<typename T >

typedef carto::DataTypeTraits<T>::ChannelType aims::StDevFilter< T >::ChannelType

Definition at line 48 of file sdfilter.h.

Constructor & Destructor Documentation

StDevFilter() [1/3]

template<typename T >

aims::StDevFilter< T >::StDevFilter ( const StructuringElement &  se = strel::Cube(1.0), const carto::Object &  options = carto::none()  )

inline

Definition at line 49 of file sdfilter.h.

StDevFilter() [2/3]

template<typename T >

aims::StDevFilter< T >::StDevFilter ( const carto::Object &  options )

inline

Definition at line 54 of file sdfilter.h.

StDevFilter() [3/3]

template<typename T >

aims::StDevFilter< T >::StDevFilter ( const StDevFilter< T > &  other )

inline

Definition at line 58 of file sdfilter.h.

~StDevFilter()

template<typename T >

aims::StDevFilter< T >::~StDevFilter ( )

inline

Definition at line 61 of file sdfilter.h.

Member Function Documentation

clone()

template<typename T >

StDevFilter<T>* aims::StDevFilter< T >::clone ( ) const

inlinevirtual

ImageAlgorithmInterface<T> Pure virtual method.

Clone the object

Reimplemented from aims::ElementFilteringImageAlgorithm< T >.

Definition at line 67 of file sdfilter.h.

operator=()

template<typename T >

StDevFilter<T>& aims::StDevFilter< T >::operator= ( const StDevFilter< T > &  other )

inline

Definition at line 62 of file sdfilter.h.

References aims::ElementFilteringImageAlgorithm< T >::operator=().

---

The documentation for this class was generated from the following file:

• aims/signalfilter/sdfilter.h
