Inheritance diagram for sigraph::SurfaceBasedFunctionalSketchFinder:

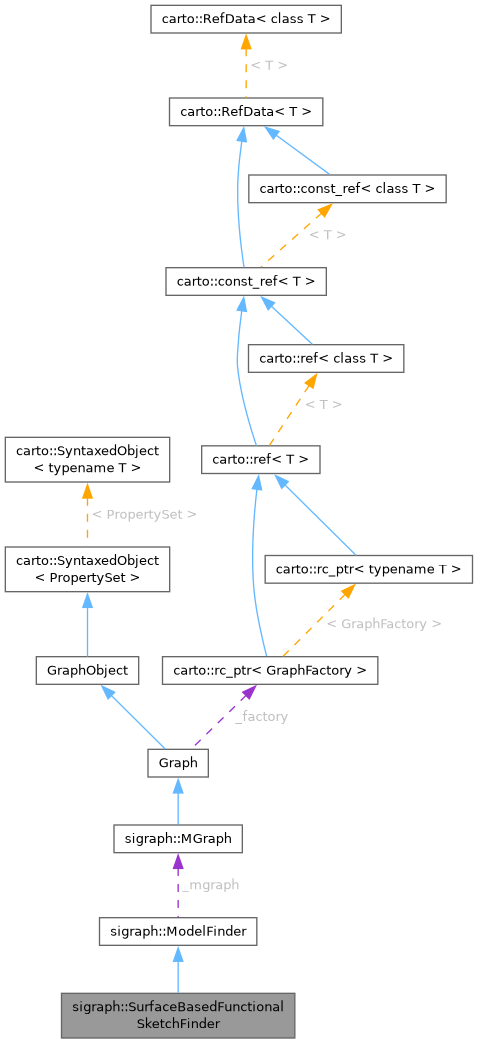

Collaboration diagram for sigraph::SurfaceBasedFunctionalSketchFinder:

[legend]

Public Member Functions
	SurfaceBasedFunctionalSketchFinder (MGraph &mg)

virtual	~SurfaceBasedFunctionalSketchFinder ()

virtual carto::AttributedObject *	selectModel (const Clique *cl)
	Choisit le noeud modèle dans le MGraph en fonction de la clique.

virtual void	initCliques (CGraph &data, bool verbose=true, bool withCache=false, bool translateLabels=true, bool checkLabels=true, const aims::SelectionSet *sel=0)
	Initialize cliques of data graph using the current model.

Public Member Functions inherited from sigraph::ModelFinder
virtual	~ModelFinder ()

const MGraph &	mGraph () const

virtual double	potential (const Clique *cl)
	Donne le potentiel d'une clique.

virtual double	potential (const Clique cl, std::map< Vertex , std::string > &changes)
	Donne le potentiel d'une clique, après une transformation de labels de noeuds, en ne le recalculant que si les labels ayant changé changent effectivement le potentiel.

virtual double	update (const Clique *cl)
	Fait un update() sur le modèle sous-jacent.

virtual double	update (const Clique cl, std::map< Vertex , std::string > &changes)
	Fait un update() sur le modèle sous-jacent.

virtual bool	isAdaptive () const
	peut apprendre ?

virtual void	clear ()
	nettoie les variables & caches éventuels

virtual double	printDescription (Clique *cl, bool naming=false)
	Calcule le potentiel et garde le(s) vecteur(s) de description de la clique.

Additional Inherited Members
Protected Member Functions inherited from sigraph::ModelFinder
	ModelFinder (MGraph &rg)

Protected Attributes inherited from sigraph::ModelFinder
MGraph &	_mgraph

Detailed Description

Constructor & Destructor Documentation

sigraph::SurfaceBasedFunctionalSketchFinder::SurfaceBasedFunctionalSketchFinder ( MGraph & mg )

virtual sigraph::SurfaceBasedFunctionalSketchFinder::~SurfaceBasedFunctionalSketchFinder ( )

virtual

virtual void sigraph::SurfaceBasedFunctionalSketchFinder::initCliques	(	CGraph &	data,
		bool	verbose = true,
		bool	withCache = false,
		bool	translateLabels = true,
		bool	checkLabels = true,
		const aims::SelectionSet *	sel = 0 )

virtual

Initialize cliques of data graph using the current model.

The default implementation only makes cliques of nodes with the same label, regardless of the model (only useful for morphometry-like applications).

If a selection is provided, it is used to translate labels.
The translateLabels option is only used if no selection is provided. In this case it decides whether to make a selection "identity" (with no labels translation) or to use the model and a labels hierarchy (
See also
LabelsTranslator) to select/group labels. To make it usable, the model has to provide elements with labels so the default implementation doesn't take care of it, it will only be useful for specialized ModelFinders (

FoldFinder)

virtual carto::AttributedObject * sigraph::SurfaceBasedFunctionalSketchFinder::selectModel ( const Clique * cl )

virtual

Choisit le noeud modèle dans le MGraph en fonction de la clique.

The documentation for this class was generated from the following file:
