Volume object. More...

#include <anatomist/volume/Volume.h>

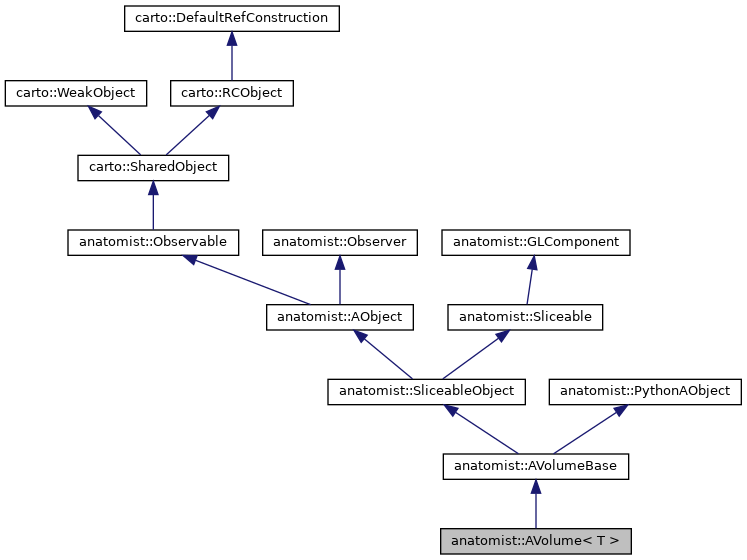

Inheritance diagram for anatomist::AVolume< T >:

[legend]

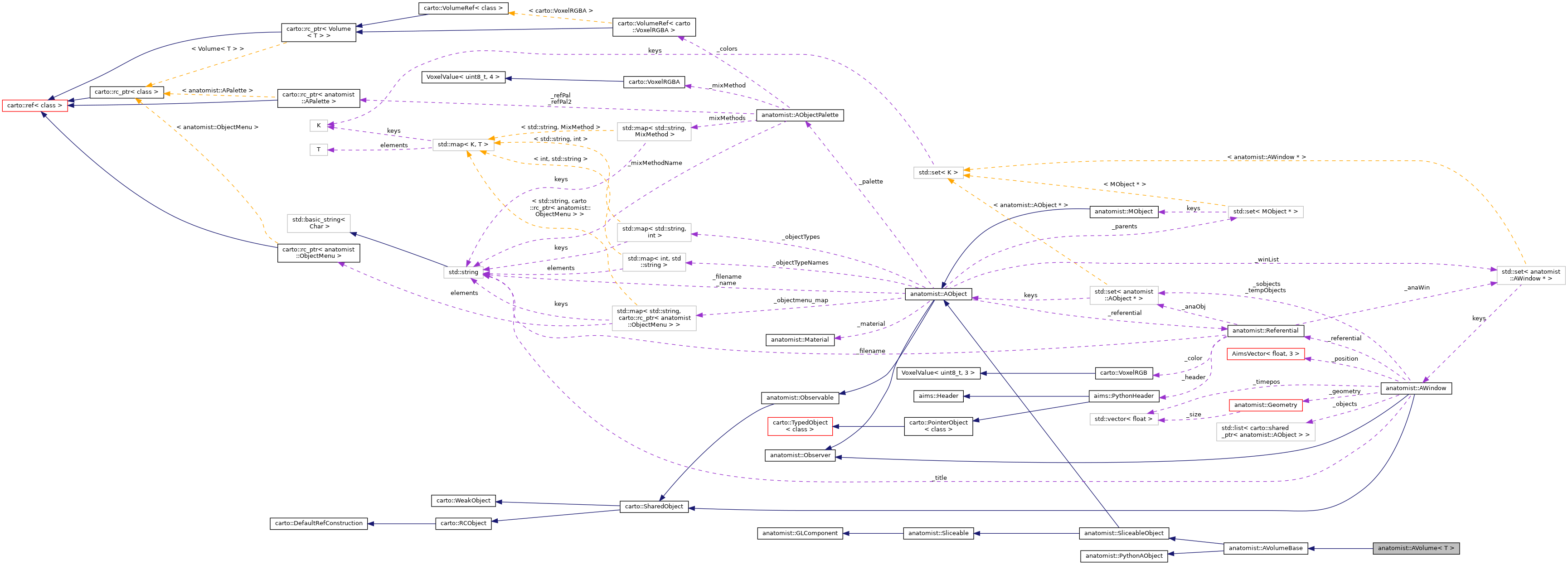

Collaboration diagram for anatomist::AVolume< T >:

[legend]

Public Member Functions
	AVolume (const std::string &filename="")

	AVolume (carto::rc_ptr< carto::Volume< T > >)

virtual	~AVolume ()

virtual AObject *	clone (bool shallow=true)
	Makes a copy of the object, with a duplicated object structure, palette and material, but which may share the underlying low-level data object (Aims object). More...

float	MinT () const
	Obsolete, deprecated. More...

float	MaxT () const
	Obsolete, deprecated. More...

virtual bool	boundingBox2D (std::vector< float > &bmin, std::vector< float > &bmax) const
	Bounding box in 2D views mode. More...

virtual bool	boundingBox (std::vector< float > &bmin, std::vector< float > &bmax) const
	Fills bmin and bmax with the N-D bounding box extrema in the object's referential coordinates. More...

void	SetExtrema ()
	Scans the object internals and determines its (texture) extrema values. More...

void	adjustPalette ()
	Creates or updates object palette according to object values (if needed) More...

carto::rc_ptr< carto::Volume< T > >	volume ()

const carto::rc_ptr< carto::Volume< T > >	volume () const

virtual void	setVolume (carto::rc_ptr< carto::Volume< T > > vol)

T &	operator() (size_t x=0, size_t y=0, size_t z=0, size_t t=0)

const T &	operator() (size_t x=0, size_t y=0, size_t z=0, size_t t=0) const

virtual bool	update2DTexture (AImage &, const Point3df &posbase, const SliceViewState &, unsigned tex=0) const
	new API More...

virtual std::vector< float >	voxelSize () const
	Returns at least 4 sizes. For 3D objects, returns (1, 1, 1, 1) More...

virtual void	setVoxelSize (const std::vector< float > &vs)

float	GetValue (Point3df pos, float time, Referential winref, Geometry wingeom)
	Retourne la valeur d'un voxel du volume. More...

bool	Is2DObject ()
	Can be display in 2D windows. More...

bool	textured2D () const
	true if 2D rendering uses a textured plane (not a full openGL object) More...

bool	Is3DObject ()
	Can be display in 3D windows. More...

virtual bool	isTransparent () const

virtual AObject *	objectAt (const std::vector< float > &pos, float tol=0)
	Not selectable: always returns Null. More...

virtual bool	hasTexture () const
	Textured objects have values associated with a geometric coordinate. More...

virtual unsigned	dimTexture () const
	Number of texture values for a point. More...

virtual float	mixedTexValue (const std::vector< float > &pos) const
	Same as above except that coordinates are not transformed but taken in object coordinates system. More...

virtual std::vector< float >	texValues (const std::vector< float > &pos) const

virtual carto::GenericObject *	attributed ()

virtual const carto::GenericObject *	attributed () const

virtual bool	loadable () const

virtual bool	savable () const

virtual bool	reload (const std::string &filename)
	Re-reads objects from disk. More...

virtual bool	save (const std::string &filename)

virtual std::string	objectFullTypeName (void) const
	Get Object Full Type Name. More...

virtual bool	printTalairachCoord (const Point3df &pos, const Referential *) const
	should be replaced by a real referential More...

virtual void	setInternalsChanged ()
	Notifies some underlying lower-level objects have changed. More...

Public Member Functions inherited from anatomist::AVolumeBase
	AVolumeBase ()

virtual	~AVolumeBase ()

virtual void	setShaderParameters (const Shader &shader, const ViewState &state) const

Public Member Functions inherited from anatomist::SliceableObject
	SliceableObject ()

virtual	~SliceableObject ()

virtual const GLComponent *	glAPI () const
	OpenGL objects const API. More...

virtual GLComponent *	glAPI ()
	OpenGL objects API. More...

virtual const Sliceable *	sliceableAPI () const

virtual Sliceable *	sliceableAPI ()

virtual std::vector< float >	glVoxelSize () const

virtual std::vector< float >	glMin2D () const

virtual std::vector< float >	glMax2D () const

virtual void	glSetChanged (glPart, bool=true) const

virtual void	glSetTexImageChanged (bool x=true, unsigned tex=0) const

virtual void	glSetTexEnvChanged (bool x=true, unsigned tex=0) const

virtual const Material *	glMaterial () const

virtual const AObjectPalette *	glPalette (unsigned tex=0) const

const Referential *	getReferential () const

Public Member Functions inherited from anatomist::AObject
	AObject (const std::string &filename="")

virtual	~AObject ()
	AObject subclasses must call cleanup() in their destructor. More...

virtual const MObject *	mObjectAPI () const

virtual MObject *	mObjectAPI ()

int	type () const
	Object type identifier. More...

void	setType (int type)
	Method to set type id, because type() is not virtual. More...

int	id () const
	Unique ID assigned upon construction, but somewhat unused now... More...

std::string	name () const
	Name shown in control window. More...

std::string	fileName () const
	File name (if any) for loaded objects. More...

void	setName (const std::string &n)

void	setFileName (const std::string &filename)

void	setId (int id)

virtual int	isMultiObject () const
	maybe not necessary ?: we can use dynamic_cast instead More...

virtual bool	render (PrimList &, const ViewState &)
	rendering (generally 2D or 3D using OpenGL). More...

virtual void	internalUpdate ()
	Updates the state of the object. More...

virtual AObjectPalette *	palette ()
	Normally, getOrCreatePalette() should be used instead of this function in most cases. More...

virtual const AObjectPalette *	palette () const

virtual void	setPalette (const AObjectPalette &palette)

virtual const AObjectPalette *	getOrCreatePalette () const
	User normally calls this function. More...

virtual void	createDefaultPalette (const std::string &name="")
	function called by getOrCreatePalette() - overloadable, need not be called directly More...

virtual void	SetMaterial (const Material &mat)

virtual Material &	GetMaterial ()

virtual const Material &	material () const

Referential *	getReferential () const

AObject *	referentialInheritance () const
	if not null, the object referential is inherited from this object More...

virtual void	setReferentialInheritance (AObject *ao)

virtual void	setReferential (Referential *ref)

virtual AObject *	fallbackReferentialInheritance () const
	object to take referential from when no ref is assigned More...

const Referential *	previousReferential () const
	Referential that the object was in before the last change. More...

virtual Tree *	optionTree () const
	Menu tree for new options, see object/optionMatcher.h. More...

virtual ObjectMenu *	optionMenu () const

int	InMemory () const
	For objects loading only when needed (not used yet...) More...

int	Visible () const
	Visibility in control window. More...

void	SetVisibility (int v)

ParentList &	Parents ()
	List of multi-objects containing this one. Obsolete: use parents() More...

ParentList &	parents ()
	List of multi-objects containing this one. More...

const ParentList &	parents () const
	List of multi-objects containing this one. More...

virtual void	RegisterParent (MObject *pob)

virtual void	UnregisterParent (MObject *pob)

const std::set< AWindow * > &	WinList ()
	List of windows showing this object. More...

virtual void	registerWindow (AWindow *window)

virtual void	unregisterWindow (AWindow *window)

virtual bool	IsFusion2DAllowed ()

virtual bool	renderingIsObserverDependent () const
	true only if the rendering (openGL) of the object changes with the observer position/orientation of the view (which is rare, but typically needed for Volume Rendering) More...

virtual int	CanBeDestroyed ()
	Allows / unallows destruction of object. More...

virtual void	setReferenceChanged ()

bool	hasReferenceChanged () const

virtual void	clearHasChangedFlags () const
	Reset has-changed flags. More...

bool	userModified () const
	if the object has been modified by user interaction, and needs saving More...

void	setUserModified (bool state=true)
	if the object has been modified by user interaction, and needs saving More...

virtual AObject *	objectAt (const std::vector< float > &pos, float tol, const Referential *orgref, const Point3df &orggeom)
	Same with origin window referential. More...

virtual void	setGeomExtrema ()
	Scans the object internals and determines its geometry extrema. More...

virtual float	mixedTexValue (const std::vector< float > &pos, const Referential *orgRef) const
	Gets a "mixed" texture value at a given space / time location. More...

virtual std::vector< float >	texValues (const std::vector< float > &pos, const Referential *orgRef) const
	Gets the array of texture values at a given location. More...

bool	save (const std::string &filename, bool onlyIfModified)

void	setHeaderOptions ()
	Set some object properties according to the header (.minf), such as material, palette etc. More...

virtual void	setProperties (carto::Object options)
	Same as setHeaderOptions() and used by it, allows passing a dictionary. More...

virtual void	storeHeaderOptions ()
	Store some object properties into the header (.minf), such as material, palette etc before saving the object. More...

virtual carto::Object	makeHeaderOptions () const
	get object properties into a generic object, such as material, palette etc before saving the object More...

long	loadDate () const
	Time the object was created, loaded or reloaded. More...

void	setLoadDate (long t)

virtual void	update (const Observable observable, void arg)
	This method is called whenever the observed object is changed. More...

bool	isCopy () const

void	setCopyFlag (bool x=true)

virtual std::string	toolTip () const
	tooltip displayed in 3D views (HTML). More...

carto::Object	aimsMeshFromGLComponent ()

Public Member Functions inherited from anatomist::Observable
	Observable ()
	Construct an Observable with zero observers. More...

virtual	~Observable ()
	does nothing More...

void	addObserver (Observer *observer)
	Adds an observer to the set of observers for this object. More...

void	deleteObserver (Observer *observer)
	Deletes an observer from the set of observers of this object. More...

void	deleteObservers ()
	Clears the observer list so that this object no longer has any observers (doesn't call any observer method - see notifyUnregisterObservers() for this ) More...

int	countObservers () const
	Returns the number of observers of this object. More...

virtual void	notifyObservers (void *arg=0)
	If this object has changed, as indicated by the hasChanged method, then notify all of its observers. More...

virtual void	notifyUnregisterObservers ()
	Notifies observable destruction to all observers and unregisters them. More...

bool	hasChanged () const
	Tests if this object has changed. More...

bool	obsHasChanged (int) const
	only valid during an Observer::update() More...

bool	obsHasChanged (const std::string &) const
	only valid during an Observer::update() More...

void	setChanged () const
	Indicates that this object has changed. More...

Public Member Functions inherited from carto::SharedObject
	SharedObject ()

	SharedObject (const SharedObject &x)

virtual	~SharedObject ()

SharedObject &	operator= (const SharedObject &)

bool	testDeletable ()

bool	tryDelete ()

Public Member Functions inherited from carto::WeakObject
void	attachWeakPtr (weak_ptr< T > &) const

void	detachWeakPtr (weak_ptr< T > &) const

void	attachWeakPtr (weak_shared_ptr< T > &) const

void	detachWeakPtr (weak_shared_ptr< T > &) const

virtual	~WeakObject ()

Public Member Functions inherited from carto::RCObject
	RCObject ()

	RCObject (const RCObject &)

RCObject &	operator= (const RCObject &)

virtual	~RCObject ()

Public Member Functions inherited from anatomist::Observer
virtual	~Observer ()

Public Member Functions inherited from anatomist::Sliceable
	Sliceable ()

virtual	~Sliceable ()

virtual unsigned	glNumVertex (const ViewState &) const

virtual const GLfloat *	glVertexArray (const ViewState &) const

virtual const GLfloat *	glNormalArray (const ViewState &state) const
	normals array (optional), default=0 (no normals, flat shaded faces) More...

virtual unsigned	glPolygonSize (const ViewState &) const
	number of vertices per polygon (default = 3: triangles) More...

virtual unsigned	glNumPolygon (const ViewState &) const

virtual const GLuint *	glPolygonArray (const ViewState &) const

virtual unsigned	glDimTex (const ViewState &, unsigned tex=0) const
	texture dimension (1, 2 [or 3]) More...

virtual unsigned	glTexCoordSize (const ViewState &, unsigned tex=0) const
	texture array size (must be >= numVertex to work), defalut=0 More...

virtual const GLfloat *	glTexCoordArray (const ViewState &, unsigned tex=0) const

virtual carto::VolumeRef< AimsRGBA >	glBuildTexImage (const ViewState &state, unsigned tex, int dimx=-1, int dimy=-1, bool useTexScale=true) const
	If you make non-standard textures (ie not from a palette), overload this function. More...

virtual bool	glMakeTexImage (const ViewState &state, const GLTexture &gltex, unsigned tex) const
	If you make non-standard textures (ie not from a palette), overload this function to fill `gltex`. More...

virtual carto::VolumeRef< AimsRGBA >	rgbaVolume (const SliceViewState *=0, int tex=0) const
	fills a resampled RGBA volume More...

virtual void	rgbaVolume (carto::Volume< AimsRGBA > &, const SliceViewState *=0, int tex=0) const
	same as the other rgbaVolume() but fills an already allocated volume More...

virtual bool	glAllowedTexRGBInterpolation (unsigned tex=0) const

virtual std::string	viewStateID (glPart part, const ViewState &) const
	Makes a unique ID from a viewstate. More...

Public Member Functions inherited from anatomist::GLComponent
	GLComponent ()

virtual	~GLComponent ()

void	clearLists ()

virtual void	glClearHasChangedFlags () const

virtual bool	glHasChanged (glPart) const

void	setShader (const Shader &shader)

void	removeShader ()

void	setupShader ()
	create, setup, or remove the shader More...

const Shader *	getShader () const

Shader *	getShader ()

virtual unsigned long	glMaxNumDisplayedPolygons () const
	Limit to the number of displayed polygons (default: 0, unlimited or ) global default value) More...

virtual void	glSetMaxNumDisplayedPolygons (unsigned long n)

virtual unsigned	glNumTextures () const

virtual unsigned	glNumTextures (const ViewState &) const

virtual glTextureMode	glTexMode (unsigned tex=0) const

virtual void	glSetTexMode (glTextureMode mode, unsigned tex=0)

virtual float	glTexRate (unsigned tex=0) const

virtual void	glSetTexRate (float rate, unsigned tex=0)

virtual glTextureFiltering	glTexFiltering (unsigned tex=0) const

virtual void	glSetTexFiltering (glTextureFiltering x, unsigned tex=0)

virtual glAutoTexturingMode	glAutoTexMode (unsigned tex=0) const

virtual void	glSetAutoTexMode (glAutoTexturingMode mode, unsigned tex=0)

virtual const float *	glAutoTexParams (unsigned coord=0, unsigned tex=0) const

virtual void	glSetAutoTexParams (const float *params, unsigned coord=0, unsigned tex=0)

virtual bool	glTexImageChanged (unsigned tex=0) const

virtual bool	glTexEnvChanged (unsigned tex=0) const

virtual GLint	glGLTexMode (unsigned tex=0) const

virtual GLint	glGLTexFiltering (unsigned tex=0) const

virtual void	glSetTexRGBInterpolation (bool x, unsigned tex=0)

virtual bool	glTexRGBInterpolation (unsigned tex=0) const

virtual const TexExtrema &	glTexExtrema (unsigned tex=0) const

virtual TexExtrema &	glTexExtrema (unsigned tex=0)

virtual GLPrimitives	glMainGLL (const ViewState &)

virtual void	glGarbageCollector (int nkept=-1)
	Frees unused display lists. More...

unsigned	glStateMemory () const
	Number of unused display lists in different states kept in memory (default: 4) More...

virtual void	glSetStateMemory (unsigned n)

virtual bool	glMakeBodyGLL (const ViewState &state, const GLList &gllist) const
	If you want to make a non-standard GL display list for the body geometry, overload this function to fill `gllist`. More...

virtual void	glBeforeBodyGLL (const ViewState &state, GLPrimitives &pl) const
	GL list to execute before the body is rendered. More...

virtual void	glAfterBodyGLL (const ViewState &state, GLPrimitives &pl) const
	GL list to execute after the body is rendered. More...

virtual bool	glMakeTexEnvGLL (const ViewState &state, const GLList &gllist, unsigned tex) const

virtual GLPrimitives	glBodyGLL (const ViewState &state) const

virtual GLPrimitives	glMaterialGLL (const ViewState &state) const

virtual GLPrimitives	glTexNameGLL (const ViewState &, unsigned tex=0) const

virtual GLPrimitives	glTexEnvGLL (const ViewState &, unsigned tex=0) const

virtual void	glSetMainGLL (const std::string &state, GLPrimitives x)

virtual void	glSetBodyGLL (const std::string &state, RefGLItem x)

virtual void	glSetMaterialGLL (const std::string &state, RefGLItem x)

virtual void	glSetTexNameGLL (const std::string &state, RefGLItem x, unsigned tex=0)

virtual std::set< glTextureMode >	glAllowedTexModes (unsigned tex=0) const
	List of actually allowed texturing modes for this particular object. More...

virtual std::set< glTextureFiltering >	glAllowedTexFilterings (unsigned tex=0) const

virtual std::set< glAutoTexturingMode >	glAllowedAutoTexModes (unsigned tex=0) const

virtual bool	glAllowedTexRate (unsigned tex=0) const

virtual carto::Object	debugInfo () const

int	glObjectID () const

virtual TexInfo &	glTexInfo (unsigned tex=0) const

Public Member Functions inherited from anatomist::PythonAObject
	PythonAObject ()

virtual	~PythonAObject ()

Protected Member Functions
void	updateSlice (AImage &image, const Point3df &p0, const std::vector< float > &time, const Transformation tra, const Point3df &inc, const Point3df &offset, const Geometry wingeom) const
	Generic texture filling routine for any transformation. More...

void	updateAxial (AImage *ximage, const Point3df &p0, const std::vector< float > &time) const
	Optimized texture filling routine (no transformation) More...

void	updateCoronal (AImage *ximage, const Point3df &p0, const std::vector< float > &time) const
	Optimized texture filling routine (no transformation) More...

void	updateSagittal (AImage *ximage, const Point3df &p0, const std::vector< float > &time) const
	Optimized texture filling routine (no transformation) More...

Protected Member Functions inherited from anatomist::AObject
const PrimList &	primitives () const

PrimList &	primitives ()

virtual void	cleanup ()
	must be called by objects destructors - Must be explicitly called by each object destructor since it can call virtual functions More...

virtual void	clearReferentialInheritance ()
	sets the object to get referential from to null, unregister it More...

AObject *&	_referentialInheritance ()
	provide access to derived classes More...

virtual void	unregisterObservable (Observable *)
	Called when an observable is destroyed, only called by Observable: don't use this function directly. More...

	AObject (const AObject &)
	copy constructor, protected and used only to reimplement clone() More...

Protected Member Functions inherited from anatomist::Observable
void	clearChanged () const
	Indicates that this object has no longer changed, or that it has already notified all of its observers of its most recent change. More...

void	obsSetChanged (int, bool=true) const
	int-based change flags (use enums to address them) More...

void	obsSetChanged (const std::string &, bool=true) const
	string-based change flags More...

Protected Member Functions inherited from carto::SharedObject
void	disableRefCount ()

Protected Member Functions inherited from carto::WeakObject
	WeakObject ()

	WeakObject (const WeakObject &)

WeakObject &	operator= (const WeakObject &)

Protected Member Functions inherited from anatomist::Observer
virtual void	cleanupObserver ()
	call this function from inherited classes destructors. More...

virtual void	registerObservable (Observable *)
	only called by Observable: don't use this function directly More...

const std::set< Observable * > &	observed () const

Protected Member Functions inherited from anatomist::GLComponent
void	glAddTextures (unsigned ntex=1)

Additional Inherited Members
Public Types inherited from anatomist::AObject
enum	ObjectType { VOLUME , BUCKET , FACET , TRIANG , LIST , VECTOR , MAP , SET , GRAPH , GRAPHOBJECT , VOLSURF , MULTISURF , MULTIBUCKET , MULTIVOLUME , FUSION2D , FUSION3D , FASCICLE , FASCICLEGRAPH , TEXTURE , TEXSURFACE , FUSION2DMESH , VECTORFIELD , OTHER }
	Base object type identifiers. More...

typedef std::set< MObject * >	ParentList
	Storage type for parent objects (multi-objects containing this one) More...

typedef ObjectMenu (	ObjectMenuRegistrerFunction) (const AObject objtype, ObjectMenu menu)
	dynamic menu registration function More...

Public Types inherited from carto::RCObject
typedef int	RefCounterType

Public Types inherited from anatomist::GLComponent
enum	glTextureMode { glGEOMETRIC , glLINEAR , glREPLACE , glDECAL , glBLEND , glADD , glCOMBINE , glLINEAR_A_IF_A , glLINEAR_ON_DEFINED , glLINEAR_A_IF_B = glLINEAR_ON_DEFINED , glLINEAR_A_IF_NOT_A , glLINEAR_A_IF_NOT_B , glLINEAR_B_IF_A , glLINEAR_B_IF_B , glLINEAR_B_IF_NOT_A , glLINEAR_B_IF_NOT_B , glLINEAR_A_IF_A_ALPHA , glLINEAR_A_IF_NOT_B_ALPHA , glLINEAR_B_IF_B_ALPHA , glLINEAR_B_IF_NOT_A_ALPHA , glMAX_CHANNEL , glMIN_CHANNEL , glMAX_ALPHA , glMIN_ALPHA , glGEOMETRIC_SQRT , glGEOMETRIC_LIGHTEN }

enum	glTextureFiltering { glFILT_NEAREST , glFILT_LINEAR }

enum	glPart { glGENERAL , glBODY , glMATERIAL , glGEOMETRY , glPALETTE , glREFERENTIAL , glTEXIMAGE , glTEXENV , glNOPART , glTEXIMAGE_NUM , glTEXENV_NUM }
	GL object parts, each driving a GL list. More...

enum	glAutoTexturingMode { glTEX_MANUAL , glTEX_OBJECT_LINEAR , glTEX_EYE_LINEAR , glTEX_SPHERE_MAP , glTEX_REFLECTION_MAP , glTEX_NORMAL_MAP }

typedef ViewState::glSelectRenderMode	glSelectRenderMode

Static Public Member Functions inherited from anatomist::AObject
static std::list< AObject * >	load (const std::string &filename)
	Static object loader: creates an objects, loads its contents. More...

static bool	reload (AObject *object, bool onlyoutdated=false)
	Reads from disk again. More...

static int	registerObjectType (const std::string &id)
	Creates a new object type number and returns it. More...

static std::string	objectTypeName (int type)

static void	setObjectMenu (std::string type, carto::rc_ptr< ObjectMenu > om)

static carto::rc_ptr< ObjectMenu >	getObjectMenu (std::string type)

static std::map< std::string, carto::rc_ptr< ObjectMenu > > &	getObjectMenuMap ()

static void	addObjectMenuRegistration (ObjectMenuRegistrerFunction)

static void	addObjectMenuRegistration (ObjectMenuRegistrerClass *)

static void	cleanStatic ()
	cleanup static global variables (called when quitting anatomist) More...

Static Public Member Functions inherited from anatomist::GLComponent
static unsigned long	glGlobalMaxNumDisplayedPolygons ()

static void	glSetGlobalMaxNumDisplayedPolygons (unsigned long n)

static GLPrimitives	glHandleTransformation (const ViewState &vs, const Referential *myref)
	helper function used in AObject::render() More...

static GLPrimitives	glPopTransformation (const ViewState &vs, const Referential *myref)
	called after glHandleTransformation() and glMainGLL() to pop the transformation matrix More...

Protected Attributes inherited from anatomist::AObject
int	_type
	Should be static in each object class. More...

int	_id

std::string	_name

std::string	_filename

std::set< AWindow * >	_winList

int	_inMemory

int	_visible

ParentList	_parents

Material	_material
	Should be a pointer: some objects don't have a material (2D objects) More...

Referential *	_referential
	Referentiel. More...

bool	_referenceHasChanged
	Reference has-changed flag. More...

AObjectPalette *	_palette
	Palette. More...

Static Protected Attributes inherited from anatomist::AObject
static std::map< std::string, int >	_objectTypes
	name-to-type map More...

static std::map< int, std::string >	_objectTypeNames
	type-to-name map More...

static std::map< std::string, carto::rc_ptr< ObjectMenu > >	_objectmenu_map
	Object Menu Map. More...

Detailed Description

template<typename T>
class anatomist::AVolume< T >

Volume object.

Definition at line 64 of file Volume.h.

Constructor & Destructor Documentation

◆ AVolume() [1/2]

template<typename T >

anatomist::AVolume< T >::AVolume ( const std::string & filename = "" )

◆ AVolume() [2/2]

template<typename T >

anatomist::AVolume< T >::AVolume ( carto::rc_ptr< carto::Volume< T > > )

◆ ~AVolume()

template<typename T >

virtual anatomist::AVolume< T >::~AVolume ( )

virtual

Member Function Documentation

◆ adjustPalette()

template<typename T >

void anatomist::AVolume< T >::adjustPalette ( )

virtual

Creates or updates object palette according to object values (if needed)

Reimplemented from anatomist::AObject.

◆ attributed() [1/2]

template<typename T >

virtual carto::GenericObject* anatomist::AVolume< T >::attributed ( )

virtual

Implements anatomist::PythonAObject.

◆ attributed() [2/2]

template<typename T >

virtual const carto::GenericObject* anatomist::AVolume< T >::attributed ( ) const

virtual

Reimplemented from anatomist::PythonAObject.

◆ boundingBox()

template<typename T >

virtual bool anatomist::AVolume< T >::boundingBox	(	std::vector< float > &	bmin,
		std::vector< float > &	bmax
	)		const

virtual

Fills bmin and bmax with the N-D bounding box extrema in the object's referential coordinates.

Changed in Anatomist 4.6. The older API was using Point3df instead of vector and informed only the spatial dimensions.

An object with no spatial information (a texture for instance) may still have time information. For this reason, the resulting bounding box should always have 4 components (at least), then 4th and additional ones should be valid, even if the function returns false (no spatial bounding box).

Returns: true if object has a "spatial" bounding box (x, y, z coordinates)

Reimplemented from anatomist::AObject.

◆ boundingBox2D()

template<typename T >

virtual bool anatomist::AVolume< T >::boundingBox2D	(	std::vector< float > &	bmin,
		std::vector< float > &	bmax
	)		const

virtual

Bounding box in 2D views mode.

In mm, may be the same as boundingBox() if the object field of view is the same in 3D and 2D modes. It normally includes voxels size (for a volume, bmin will be -vs/2 where vs is the voxel size, for the 3 first coordinates).

The default implementation just calls boundingBox().

Reimplemented from anatomist::AObject.

◆ clone()

template<typename T >

virtual AObject* anatomist::AVolume< T >::clone ( bool shallow = true )

virtual

Makes a copy of the object, with a duplicated object structure, palette and material, but which may share the underlying low-level data object (Aims object).

This is especially useful to show the same object with several palettes. This virtual method returns null by default if it is not overloaded.

Reimplemented from anatomist::AObject.

◆ dimTexture()

template<typename T >

virtual unsigned anatomist::AVolume< T >::dimTexture ( ) const

inlinevirtual

Number of texture values for a point.

Reimplemented from anatomist::AObject.

Definition at line 112 of file Volume.h.

◆ GetValue()

template<typename T >

float anatomist::AVolume< T >::GetValue	(	Point3df	pos,
		float	time,
		Referential *	winref,
		Geometry *	wingeom
	)

Retourne la valeur d'un voxel du volume.

◆ hasTexture()

template<typename T >

virtual bool anatomist::AVolume< T >::hasTexture ( ) const

inlinevirtual

Textured objects have values associated with a geometric coordinate.

Reimplemented from anatomist::AObject.

Definition at line 111 of file Volume.h.

◆ Is2DObject()

template<typename T >

bool anatomist::AVolume< T >::Is2DObject ( )

inlinevirtual

Can be display in 2D windows.

Implements anatomist::AObject.

Definition at line 103 of file Volume.h.

◆ Is3DObject()

template<typename T >

bool anatomist::AVolume< T >::Is3DObject ( )

inlinevirtual

Can be display in 3D windows.

Implements anatomist::AObject.

Definition at line 106 of file Volume.h.

◆ isTransparent()

template<typename T >

virtual bool anatomist::AVolume< T >::isTransparent ( ) const

virtual

Reimplemented from anatomist::AObject.

◆ loadable()

template<typename T >

virtual bool anatomist::AVolume< T >::loadable ( ) const

inlinevirtual

Reimplemented from anatomist::AObject.

Definition at line 120 of file Volume.h.

◆ MaxT()

template<typename T >

float anatomist::AVolume< T >::MaxT ( ) const

inlinevirtual

Obsolete, deprecated.

Reimplemented from anatomist::AObject.

Definition at line 74 of file Volume.h.

◆ MinT()

template<typename T >

float anatomist::AVolume< T >::MinT ( ) const

inlinevirtual

Obsolete, deprecated.

Reimplemented from anatomist::AObject.

Definition at line 73 of file Volume.h.

◆ mixedTexValue()

template<typename T >

virtual float anatomist::AVolume< T >::mixedTexValue ( const std::vector< float > & pos ) const

virtual

Same as above except that coordinates are not transformed but taken in object coordinates system.

Reimplemented from anatomist::AObject.

◆ objectAt()

template<class T >

AObject * anatomist::AVolume< T >::objectAt	(	const std::vector< float > &	pos,
		float	tol = `0`
	)

inlinevirtual

Not selectable: always returns Null.

Reimplemented from anatomist::AObject.

Definition at line 156 of file Volume.h.

◆ objectFullTypeName()

template<typename T >

virtual std::string anatomist::AVolume< T >::objectFullTypeName ( void ) const

virtual

Get Object Full Type Name.

It should be objectTypeName(_type) for most anatomist objects and completed with <T> for templated anatomist objects. For instance : AVolume<AimsRGBA>::objectFullTypeName() return : VOLUME<AimsRGBA>

Reimplemented from anatomist::AObject.

◆ operator()() [1/2]

template<typename T >

T& anatomist::AVolume< T >::operator()	(	size_t	x = `0`,
		size_t	y = `0`,
		size_t	z = `0`,
		size_t	t = `0`
	)

inline

Definition at line 87 of file Volume.h.

◆ operator()() [2/2]

template<typename T >

const T& anatomist::AVolume< T >::operator()	(	size_t	x = `0`,
		size_t	y = `0`,
		size_t	z = `0`,
		size_t	t = `0`
	)		const

inline

Definition at line 89 of file Volume.h.

◆ printTalairachCoord()

template<typename T >

virtual bool anatomist::AVolume< T >::printTalairachCoord	(	const Point3df &	pos,
		const Referential *
	)		const

virtual

should be replaced by a real referential

Reimplemented from anatomist::AObject.

◆ reload()

template<typename T >

virtual bool anatomist::AVolume< T >::reload ( const std::string & filename )

virtual

Re-reads objects from disk.

Only called if loadable() is true and fileName() is not empty. A new filename can be passed to the reload function, so that files uncompressed by the ObjectReader in temporary locations can be processed. Overload this function in inherited classes to implement it.

If onlyoutdated is true, reloading will only be done if the files containing the object have been modified since the object has been created/loaded/saved

Reimplemented from anatomist::AObject.

◆ savable()

template<typename T >

virtual bool anatomist::AVolume< T >::savable ( ) const

inlinevirtual

Reimplemented from anatomist::AObject.

Definition at line 121 of file Volume.h.

◆ save()

template<typename T >

virtual bool anatomist::AVolume< T >::save ( const std::string & filename )

virtual

Reimplemented from anatomist::AObject.

◆ SetExtrema()

template<typename T >

void anatomist::AVolume< T >::SetExtrema ( )

virtual

Scans the object internals and determines its (texture) extrema values.

Reimplemented from anatomist::AObject.

◆ setInternalsChanged()

template<typename T >

virtual void anatomist::AVolume< T >::setInternalsChanged ( )

virtual

Notifies some underlying lower-level objects have changed.

Useful especially after an underlying AIMS object has been modified

Reimplemented from anatomist::AObject.

◆ setVolume()

template<typename T >

virtual void anatomist::AVolume< T >::setVolume ( carto::rc_ptr< carto::Volume< T > > vol )

virtual

◆ setVoxelSize()

template<typename T >

virtual void anatomist::AVolume< T >::setVoxelSize ( const std::vector< float > & vs )

virtual

Reimplemented from anatomist::AObject.

◆ textured2D()

template<typename T >

bool anatomist::AVolume< T >::textured2D ( ) const

inlinevirtual

true if 2D rendering uses a textured plane (not a full openGL object)

Reimplemented from anatomist::AObject.

Definition at line 104 of file Volume.h.

◆ texValues()

template<typename T >

virtual std::vector<float> anatomist::AVolume< T >::texValues ( const std::vector< float > & pos ) const

virtual

Reimplemented from anatomist::AObject.

◆ update2DTexture()

template<typename T >

virtual bool anatomist::AVolume< T >::update2DTexture	(	AImage &	,
		const Point3df &	posbase,
		const SliceViewState &	,
		unsigned	tex = `0`
	)		const

virtual

new API

Reimplemented from anatomist::Sliceable.

◆ updateAxial()

template<typename T >

void anatomist::AVolume< T >::updateAxial	(	AImage *	ximage,
		const Point3df &	p0,
		const std::vector< float > &	time
	)		const

protected

Optimized texture filling routine (no transformation)

◆ updateCoronal()

template<typename T >

void anatomist::AVolume< T >::updateCoronal	(	AImage *	ximage,
		const Point3df &	p0,
		const std::vector< float > &	time
	)		const

protected

Optimized texture filling routine (no transformation)

◆ updateSagittal()

template<typename T >

void anatomist::AVolume< T >::updateSagittal	(	AImage *	ximage,
		const Point3df &	p0,
		const std::vector< float > &	time
	)		const

protected

Optimized texture filling routine (no transformation)

◆ updateSlice()

template<typename T >

void anatomist::AVolume< T >::updateSlice	(	AImage &	image,
		const Point3df &	p0,
		const std::vector< float > &	time,
		const Transformation *	tra,
		const Point3df &	inc,
		const Point3df &	offset,
		const Geometry *	wingeom
	)		const

protected

Generic texture filling routine for any transformation.

◆ volume() [1/2]

template<typename T >

carto::rc_ptr<carto::Volume<T> > anatomist::AVolume< T >::volume ( )

inline

Definition at line 84 of file Volume.h.

◆ volume() [2/2]

template<typename T >

const carto::rc_ptr<carto::Volume<T> > anatomist::AVolume< T >::volume ( ) const

inline

Definition at line 85 of file Volume.h.

◆ voxelSize()

template<typename T >

virtual std::vector<float> anatomist::AVolume< T >::voxelSize ( ) const

virtual

Returns at least 4 sizes. For 3D objects, returns (1, 1, 1, 1)

Reimplemented from anatomist::AObject.

The documentation for this class was generated from the following file:

anatomist/volume/Volume.h

Public Member Functions

Protected Member Functions

Additional Inherited Members

Detailed Description

template<typename T> class anatomist::AVolume< T >

Constructor & Destructor Documentation

◆ AVolume() [1/2]

◆ AVolume() [2/2]

◆ ~AVolume()

Member Function Documentation

◆ adjustPalette()

◆ attributed() [1/2]

◆ attributed() [2/2]

◆ boundingBox()

◆ boundingBox2D()

◆ clone()

◆ dimTexture()

◆ GetValue()

◆ hasTexture()

◆ Is2DObject()

◆ Is3DObject()

◆ isTransparent()

◆ loadable()

◆ MaxT()

◆ MinT()

◆ mixedTexValue()

◆ objectAt()

◆ objectFullTypeName()

◆ operator()() [1/2]

◆ operator()() [2/2]

◆ printTalairachCoord()

◆ reload()

◆ savable()

◆ save()

◆ SetExtrema()

◆ setInternalsChanged()

◆ setVolume()

◆ setVoxelSize()

◆ textured2D()

◆ texValues()

◆ update2DTexture()

◆ updateAxial()

◆ updateCoronal()

◆ updateSagittal()

◆ updateSlice()

◆ volume() [1/2]

◆ volume() [2/2]

◆ voxelSize()

template<typename T>
class anatomist::AVolume< T >
